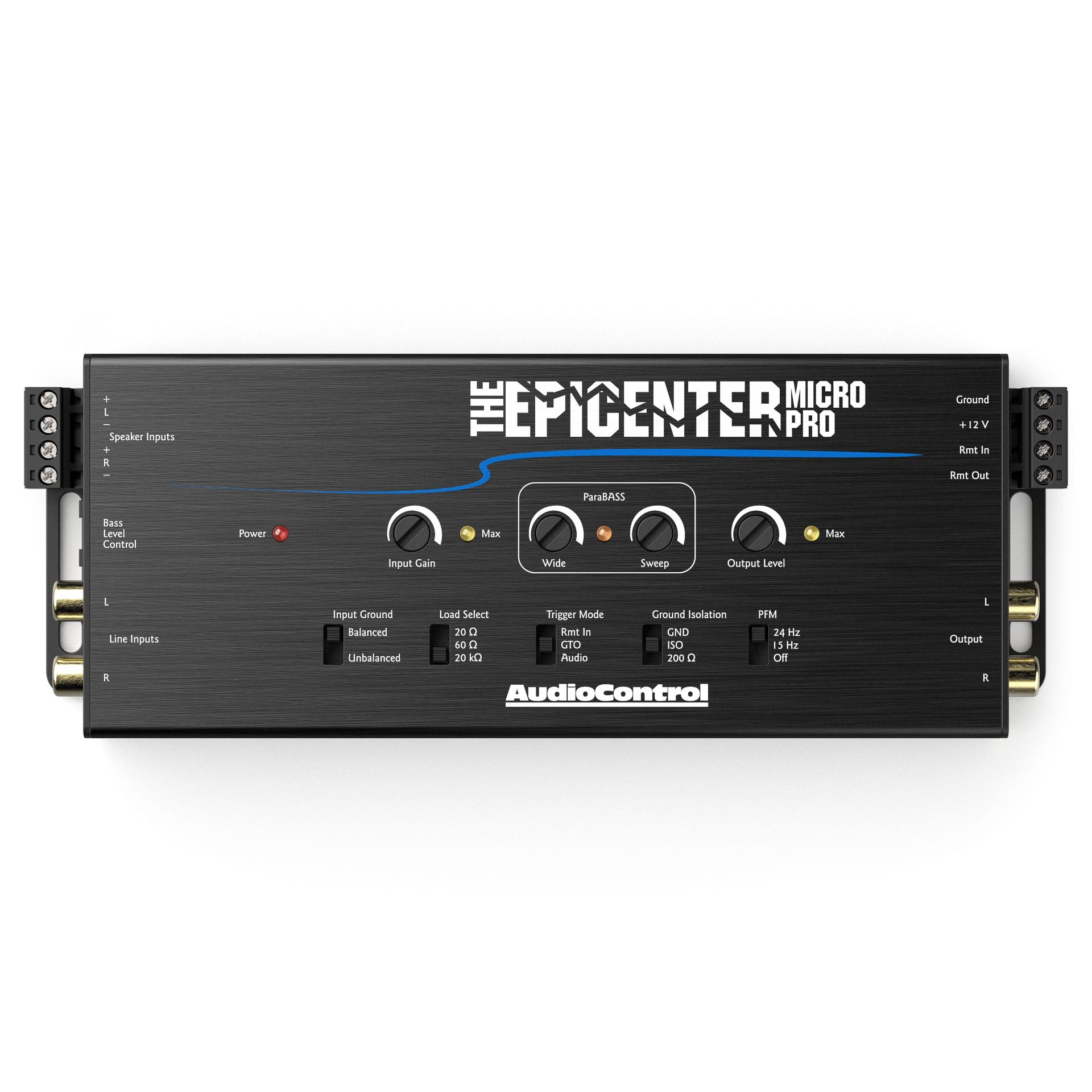

AudioControl Bass Restoration Processor and LOC Black 12 V with Line Driver "Pro" Version
SKU: ACO-EPICENTER MICRO PRO
Brand part number: EPICENTER MICRO PRO
Brand: AudioControl


    Eta:

      Ship to
      *
      *
      Shipping Method
      Name
      Estimated Delivery
      Price
      No shipping options

      THE EPICENTER® MICRO PRO

      bass restoration processor & line output converter

      Building on the powerful features of The Epicenter Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The Epicenter Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.

      Bass Maximizer – The Epicenter® Micro PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The Epicenter® Micro PRO to drop down a few octaves and reproduce the “missing” bass notes.

      Line Output Converter – Beyond maximizing bass, The Epicenter® Micro PRO is a line output converter packed with premier

      OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be selected or bypassed and Output Voltage can be configured for up to 10 Volts!



      FEATURES

      • AudioControl’s Patented Digital Bass Restoration
      • ParaBASS® Bass Shaping
      • Selectable PFM Subsonic Filter with Bypass
      • Built-in Line Driver for Optimal Output Voltage
      • Speaker and Line Level Inputs
      • Load Selection Switch
      • GTO and Audio Sense Turn On
      • 10 Volt Maximum Output Level
      • ACR-4 Dual Knob Dash Mount Control Included
      • Conformally Coated PCB for Increased Resistance to the Elements

      SPECIFICATIONS

      INPUTS

      • Maximum Line Level Input: 10Vrms
      • Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
      • Line Level Input Impedance: 7kΩ
      • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

      OUTPUTS

      • Maximum Output Level (THD<1%): 9Vrms, 13V peak
      • Output Impedance: 150Ω

      PERFORMANCE

      • Total Harmonic Distortion: 0.03%
      • Signal to Noise: >105 dB
      • Frequency Response: 10 Hz – 22 kHz ±1 dB
      • PFM Filter (High Pass): Selectable 24 Hz, 15 Hz, or Bypass



      CONTROL

      • Remote In / GTO™ Signal Sense / Audio Sense
      • 12VDC Remote Out (always active when unit is on)

      GENERAL

      •
      • Power Supply: High Headroom PWM Switching
      • Current Draw: 300 mA
      • Recommended Fuse Rating: 1 A

      WEIGHTS & DIMENSIONS

      • Dimensions: 8″L x 3″D x 1″H
      • Weight: 0.9 lbs

      IN THE BOX: The Epicenter Micro PRO, ACR-4, Remote Cable, Speaker and Power connectors, User Manual

      DOWNLOADS

      USER MANUaL






      THE EPICENTER® MICRO PRO

      bass restoration processor & line output converter

      Building on the powerful features of The Epicenter Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The Epicenter Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.

      Bass Maximizer – The Epicenter® Micro PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The Epicenter® Micro PRO to drop down a few octaves and reproduce the “missing” bass notes.

      Line Output Converter – Beyond maximizing bass, The Epicenter® Micro PRO is a line output converter packed with premier

      OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be selected or bypassed and Output Voltage can be configured for up to 10 Volts!



      FEATURES

      • AudioControl’s Patented Digital Bass Restoration
      • ParaBASS® Bass Shaping
      • Selectable PFM Subsonic Filter with Bypass
      • Built-in Line Driver for Optimal Output Voltage
      • Speaker and Line Level Inputs
      • Load Selection Switch
      • GTO and Audio Sense Turn On
      • 10 Volt Maximum Output Level
      • ACR-4 Dual Knob Dash Mount Control Included
      • Conformally Coated PCB for Increased Resistance to the Elements

      SPECIFICATIONS

      INPUTS

      • Maximum Line Level Input: 10Vrms
      • Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
      • Line Level Input Impedance: 7kΩ
      • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

      OUTPUTS

      • Maximum Output Level (THD<1%): 9Vrms, 13V peak
      • Output Impedance: 150Ω

      PERFORMANCE

      • Total Harmonic Distortion: 0.03%
      • Signal to Noise: >105 dB
      • Frequency Response: 10 Hz – 22 kHz ±1 dB
      • PFM Filter (High Pass): Selectable 24 Hz, 15 Hz, or Bypass



      CONTROL

      • Remote In / GTO™ Signal Sense / Audio Sense
      • 12VDC Remote Out (always active when unit is on)

      GENERAL

      •
      • Power Supply: High Headroom PWM Switching
      • Current Draw: 300 mA
      • Recommended Fuse Rating: 1 A

      WEIGHTS & DIMENSIONS

      • Dimensions: 8″L x 3″D x 1″H
      • Weight: 0.9 lbs

      IN THE BOX: The Epicenter Micro PRO, ACR-4, Remote Cable, Speaker and Power connectors, User Manual

      DOWNLOADS

      USER MANUaL





      Products specifications
      Unit of MeasureEACH
      Warranty1 YEAR
      Master Pack7
      FF Level100
      Products specifications
      Unit of MeasureEACH
      Warranty1 YEAR
      Master Pack7
      FF Level100
