Specialty: EPICPRO69CX

The EPIC PROAXIAL series is a far cry from traditional car audio. These speakers were designed to be street loud and studio clear!

The technology and engineering are focused on efficiency and “SPL”, which requires different components compared to “normal” car audio, such as lightweight composite cones and dual-roll cloth surrounds. But it’s not just about getting loud—these speakers also deliver clear accurate sound, even when you’re pushing them to the limit.

This coaxial variant combines a high-efficiency midrange driver with a compact bullet tweeter to deliver an incredibly loud, full-range response from a single point source. By integrating both components into one unit, it eliminates the need for separate mid and high-frequency drivers, simplifying installation without sacrificing performance.

FEATURES

Proaxial: Coaxial design with midrange driver & bullet tweeter to deliver an incredibly loud, full-range response.
Lightweight Voice Coil: Experience massive high SPL output with low distortion.
Precision-Designed Tweeter Horn: Enables smooth high-frequency
response for immersive audio.
Titanium Tweeter Diaphragm: Delivers high-volume, accurate
sound.
Double-Roll Cloth Surround: Ensures accurate sound reproduction and consistent performance over a long lifespan.
High-Tensile, Stamped-Steel Basket: Improved damping maintains precise cone movement for clean, low-distortion sound.
Stiff Paper Cone: Delivers warm, smooth sound with enhanced damping.
Copper Shorting Ring: Widens bandwidth and reduces distortion for a seamless transition between woofer and tweeter.
High-Quality Mounting Hardware: Included
Removable Speaker Grilles: Included
AudioControl Engineered: Designed from the ground up by renowned AudioControl engineers, ensuring a holistic, performance-driven masterpiece born from unparalleled expertise.
Perfect Pair with EPIC Amplifiers: Specifically voiced to integrate seamlessly with EPIC Series amplifiers, creating an optimized ecosystem for an unparalleled audio experience.

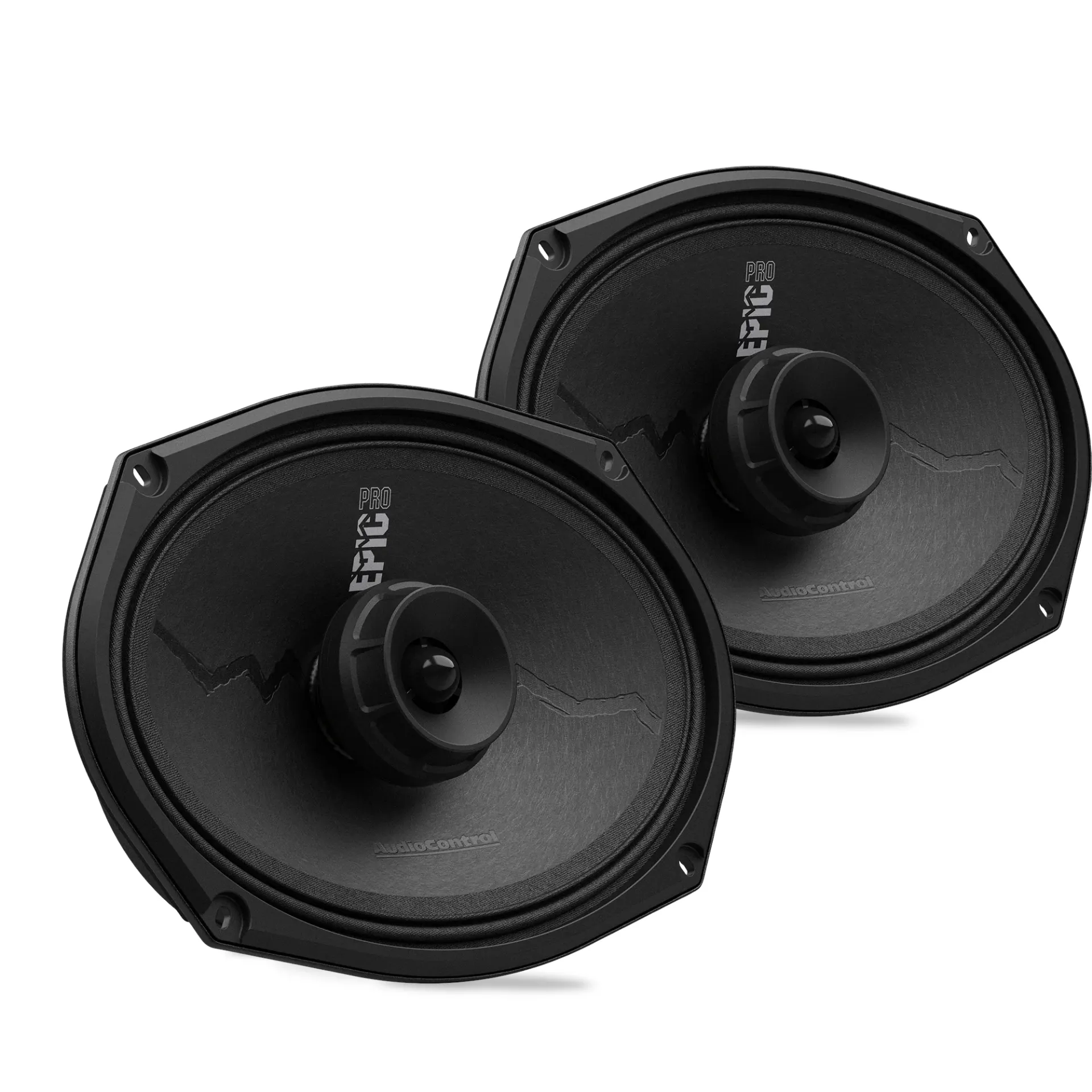

Set of 2 Speakers: Includes 2 EPICPRO69CX 6x9" Coaxial Speakers.

SPECIFICATIONS

Speaker Model EPICPRO69CX

Power 200W RMS / 300W Max

Speaker Size 6x9 in

Impedance 4 ohms

Voice Coil (Tw / Mid) 0.78 in / 1.2 in

System Freq Response 100 – 20,000 Hz

SPL (Efficiency 2.83V/1M) 97.6 dB

Magnet Weight 30 oz / 850 g

Magnet Dimensions 4.72 x 1.77 x 0.79 in / 120 x 45 x 20 mm

IN THE BOX: (2) EPICPRO69CX Speakers, Mounting Hardware, Speaker Grilles, User Manual

DIMENSIONS

Overall Diameter + Grille (A)...................................................................6.7 in x 9.39 in

Overall Diameter w/o Grille (B).............................................................. 6.55 in x 9.25 in

Cut Out Diameter (C)..............................................................................5.75 in x 8.35 in

Mounting Depth (D)............................................................................... 2.94 in

Total Depth (E)....................................................................................... 3.73 in

The EPIC PROAXIAL series is a far cry from traditional car audio. These speakers were designed to be street loud and studio clear!

FEATURES

Proaxial: Coaxial design with midrange driver & bullet tweeter to deliver an incredibly loud, full-range response.
Lightweight Voice Coil: Experience massive high SPL output with low distortion.
Precision-Designed Tweeter Horn: Enables smooth high-frequency
response for immersive audio.
Titanium Tweeter Diaphragm: Delivers high-volume, accurate
sound.
Double-Roll Cloth Surround: Ensures accurate sound reproduction and consistent performance over a long lifespan.
High-Tensile, Stamped-Steel Basket: Improved damping maintains precise cone movement for clean, low-distortion sound.
Stiff Paper Cone: Delivers warm, smooth sound with enhanced damping.
Copper Shorting Ring: Widens bandwidth and reduces distortion for a seamless transition between woofer and tweeter.
High-Quality Mounting Hardware: Included
Removable Speaker Grilles: Included
AudioControl Engineered: Designed from the ground up by renowned AudioControl engineers, ensuring a holistic, performance-driven masterpiece born from unparalleled expertise.
Perfect Pair with EPIC Amplifiers: Specifically voiced to integrate seamlessly with EPIC Series amplifiers, creating an optimized ecosystem for an unparalleled audio experience.
Set of 2 Speakers: Includes 2 EPICPRO69CX 6x9" Coaxial Speakers.

SPECIFICATIONS

Speaker Model EPICPRO69CX

Power 200W RMS / 300W Max

Speaker Size 6x9 in

Impedance 4 ohms

Voice Coil (Tw / Mid) 0.78 in / 1.2 in

System Freq Response 100 – 20,000 Hz

SPL (Efficiency 2.83V/1M) 97.6 dB

Magnet Weight 30 oz / 850 g

Magnet Dimensions 4.72 x 1.77 x 0.79 in / 120 x 45 x 20 mm

IN THE BOX: (2) EPICPRO69CX Speakers, Mounting Hardware, Speaker Grilles, User Manual

DIMENSIONS

Overall Diameter + Grille (A)...................................................................6.7 in x 9.39 in

Overall Diameter w/o Grille (B).............................................................. 6.55 in x 9.25 in

Cut Out Diameter (C)..............................................................................5.75 in x 8.35 in

Mounting Depth (D)............................................................................... 2.94 in

Total Depth (E)....................................................................................... 3.73 in
