10" DVC 4 OHM Woofer 500w RMS - 750w MAX EPIC SERIES
SKU: ACO-EPICX10D4
Brand part number: EPICX10D4
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

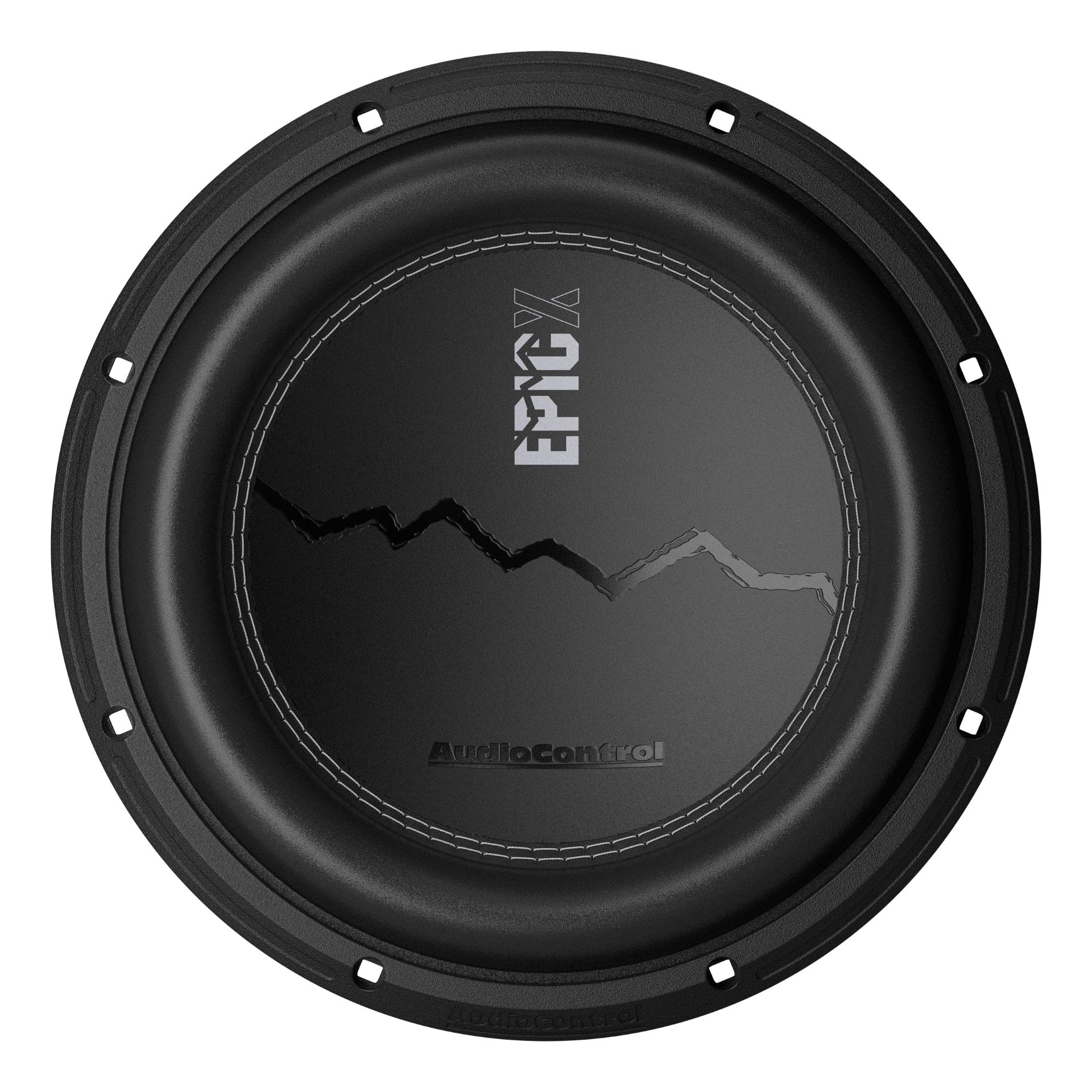

    EPICX SERIES 10-INCH Dual Voice Coil SUBWOOFER (Dual 2 ohm/4 ohm)

    Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

    Precision-engineered from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components that withstand heavy demand. Every element is optimized for output, efficiency, and durability, producing a sub that overachieves at every level!

    If you’re pushing the limits in competition or want a system that dominates on the street, EPICX Series is made for you. These subs handle power without breaking a sweat, delivering the kind of deep, aggressive bass that turns heads.

    Crafted with AudioControl’s legacy of build quality and innovative design at its core, the EPICX Series brings performance without sacrificing clarity. Built for those who love loud. No gimmicks — just raw, responsive performance you can count on.



     FEATURES

    • Composite Foam Surround for Smooth, Controlled Bass

    • High-Precision Motor Assembly Improves Efficiency and Output

    • Rigid Steel Basket for Strength and Reduced Resonance

    • High-Temperature, Lightweight Voice Coil

    • One-Piece Dust Cap Design

    • Non-Pressed Paper Cone for Added Warmth and Depth

    • Large-Gauge, Quick-Release Black Nickel Terminals

    • Pair with The EPICENTER® for Unmatched Bass

    • 500W RMS / 750W Max


    SPECIFICATIONS

    Speaker Size                                10 in / 250 mm

    Impedance                                   2 or 4 ohms

    Voice Coil                                      2.38 in

    Resonance Frequency                39.8 Hz

    Efficiency                                      84.8 dB

    Magnet Dimensions                   6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm





    IN THE BOX:

    (1) EPICX10D2 or EPICX10D4 Subwoofer, User Guide



    DIMENSIONS

    • Overall Diameter: 10.5 in / 269 mm
    • Cut Out Diameter: 9.25 in / 235 mm
    • Mounting Depth: 5.3 in / 135.8 mm
    • Mounting Height: 1 in / 24 mm
    • Motor Diameter (w/ Cover): 6.4 in / 162 mm

    PORTED ENCLOSURE

    • External Dimensions: 20.5″ W × 13.5″ H × 11.5″ D
    • Net Internal Volume:  1.25 ft3
    • Exterior Volume:  1.84 ft3
    • Material Thickness: 0.75 in
    • Port Area: 15 sq in
    • Port Inlet: 1.25″ W × 12″H
    • Port Length: 23 in
    • Tuning Frequency:  35 Hz

    SEALED ENCLOSURE (Ideal)

    • External Dimensions: 14″ W × 12.75″ H × 11″ D
    • Internal Volume: 0.625 ft3
    • Material Thickness: 0.75 in

    EPICX SERIES 10-INCH Dual Voice Coil SUBWOOFER (Dual 2 ohm/4 ohm)

    Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.

    Precision-engineered from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components that withstand heavy demand. Every element is optimized for output, efficiency, and durability, producing a sub that overachieves at every level!

    If you’re pushing the limits in competition or want a system that dominates on the street, EPICX Series is made for you. These subs handle power without breaking a sweat, delivering the kind of deep, aggressive bass that turns heads.

    Crafted with AudioControl’s legacy of build quality and innovative design at its core, the EPICX Series brings performance without sacrificing clarity. Built for those who love loud. No gimmicks — just raw, responsive performance you can count on.



     FEATURES

    • Composite Foam Surround for Smooth, Controlled Bass

    • High-Precision Motor Assembly Improves Efficiency and Output

    • Rigid Steel Basket for Strength and Reduced Resonance

    • High-Temperature, Lightweight Voice Coil

    • One-Piece Dust Cap Design

    • Non-Pressed Paper Cone for Added Warmth and Depth

    • Large-Gauge, Quick-Release Black Nickel Terminals

    • Pair with The EPICENTER® for Unmatched Bass

    • 500W RMS / 750W Max


    SPECIFICATIONS

    Speaker Size                                10 in / 250 mm

    Impedance                                   2 or 4 ohms

    Voice Coil                                      2.38 in

    Resonance Frequency                39.8 Hz

    Efficiency                                      84.8 dB

    Magnet Dimensions                   6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm





    IN THE BOX:

    (1) EPICX10D2 or EPICX10D4 Subwoofer, User Guide



    DIMENSIONS

    • Overall Diameter: 10.5 in / 269 mm
    • Cut Out Diameter: 9.25 in / 235 mm
    • Mounting Depth: 5.3 in / 135.8 mm
    • Mounting Height: 1 in / 24 mm
    • Motor Diameter (w/ Cover): 6.4 in / 162 mm

    PORTED ENCLOSURE

    • External Dimensions: 20.5″ W × 13.5″ H × 11.5″ D
    • Net Internal Volume:  1.25 ft3
    • Exterior Volume:  1.84 ft3
    • Material Thickness: 0.75 in
    • Port Area: 15 sq in
    • Port Inlet: 1.25″ W × 12″H
    • Port Length: 23 in
    • Tuning Frequency:  35 Hz

    SEALED ENCLOSURE (Ideal)

    • External Dimensions: 14″ W × 12.75″ H × 11″ D
    • Internal Volume: 0.625 ft3
    • Material Thickness: 0.75 in
