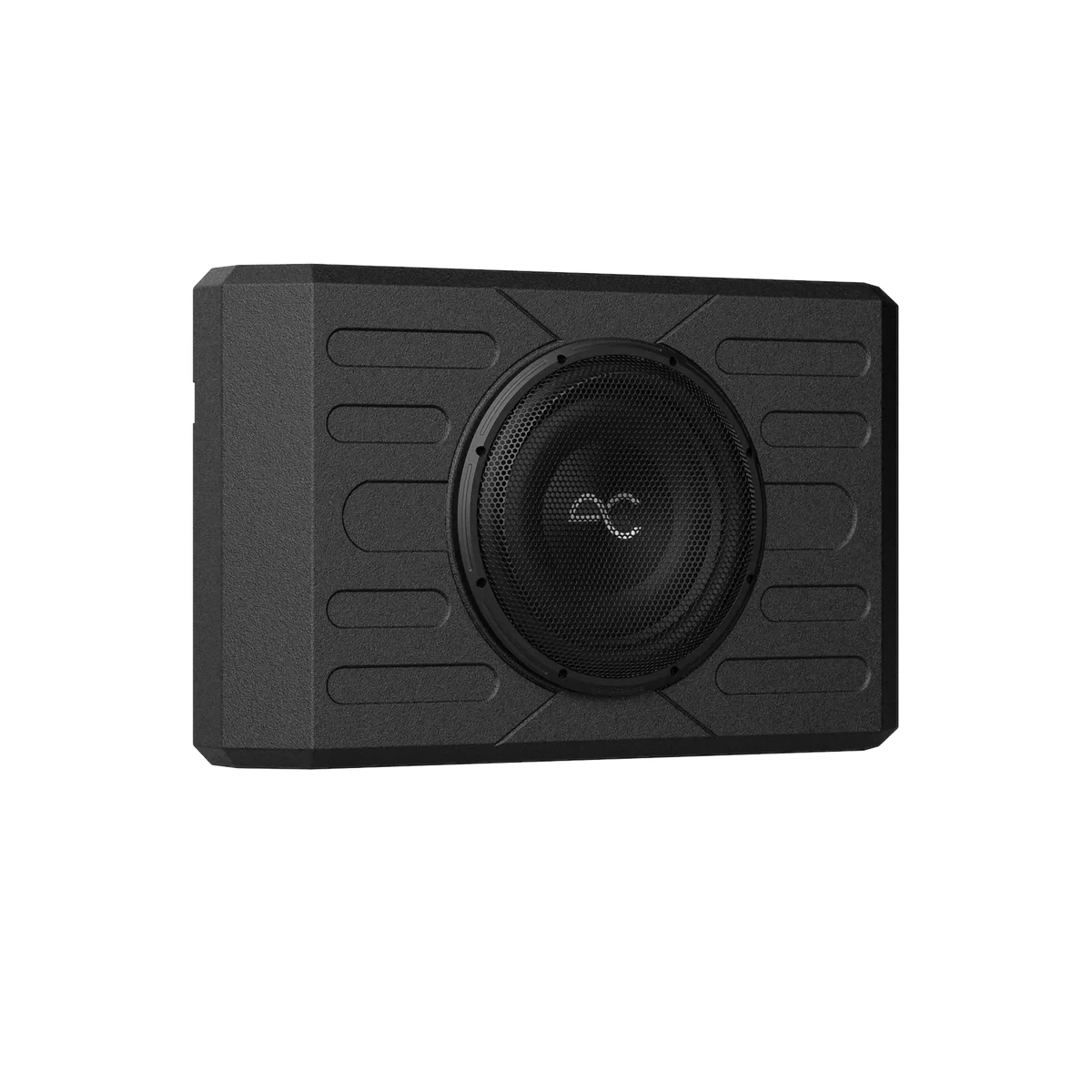

***Serialized***2021 Ford Bronco Swing-gate 12" Sealed loaded subwoofer enclosure

SKU: ACO-TXFBB12

Brand part number: TXFBB12

Brand: Audiocontrol Speakers

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

For 2021-2025 Ford Bronco 2-Door and 4-Door Model. Built tough and made to fit your Bronco’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.

All mounting hardware is included. *Does not fit Sport Model

400 Watt RMS / 800 Watt Max

ENCLOSURE FEATURES

Roadkill-Armor Coat
Permanent Heat Bonded EPM Enclosure Coating (Elastomeric Polyurethane Molecule)
Weather-Resistant for Harsh Outdoor Environments
Sound Dampening Properties for Resonance Reduction
Scratch, Crack, and Peel-Resistant
Chemical and Stain-Resistant
Impact Absorption
UV Protection
Provides Leak and Corrosion Prevention
Heavy-Duty 11-Layer High-Density Plywood Construction
Durable, Coated Steel Subwoofer Grill for Extra Protection

SUBWOOFER FEATURES

Low-Profile Shallow Mount Subwoofer
Fiber Matrix Injection Molded Polypropylene Cone
Weather-Resistant Design
3-Layer High Temp Voice Coil Former
Optimal Thermal Efficiency
Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
Removable Subwoofer Grille Included

SPECS

THIELE/SMALL PARAMETERS

Nominal Impedance (Z) 2 ohms

DC Resistance (Re) ]] 1.8 ohms

Resonance Frequency (Fs) 27.8430 Hz

Piston Area (Sd) 0.0511 m2

Force Factor (BL) 10.3379 T.m

Mechanical Q Factor (Qms) 4.0762

Electrical Q Factor (Qes) 0.4073

Total Q Factor (Qts) 0.4216

Sensitivity 1W/M (SPL) 87.3655

Mechanical Comp (Cms) 0.2047 mm/N

Moving Mass (Mms) 159.6086 g

Linear Excursion (Xmax) . 9 mm

Volume Acoustic Comp (Vas) 74.5578 Ltr/2.632984 cu ft

Reference Efficiency (NO.) 0.33% RMS

Power (Pe) 400 Watts

Frequency Response 20-250 Hz

Voice Coil Diameter 2.5 in/63.5 mm

Displacement 0.0619 cu ft/1.752 Ltr

IN THE BOX: TXFBB12 Subwoofer, Manual, Warranty

ENCLOSURE DIMENSIONS

Internal Volume 0.706 cu ft. / 19.99 Ltr

Enclosure Weight 16.25 lbs

Height 17in / 43.2cm

Width 27.5in / 69.9cm

Depth 4.6in / 11.7cm
