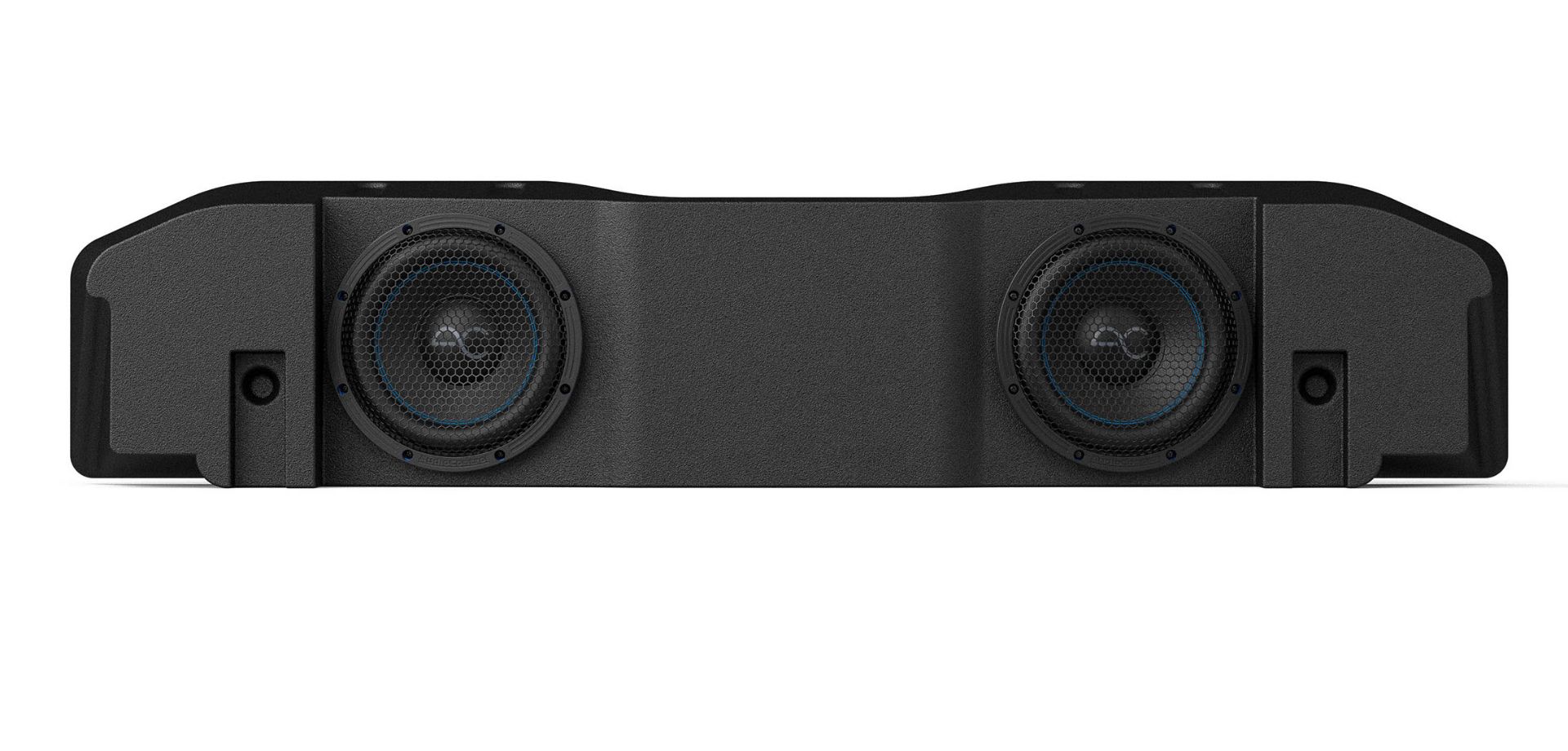

***Serialized*** Jeep Gladiator under-seat dual 8" loaded enclosure

SKU: ACO-TXJTD8

Brand part number: TXJTD8

Brand: Audiocontrol Speakers

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ENCLOSURE FEATURES

Roadkill-Armor Coat
Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
Weather-Resistant Enclosure for Harsh Outdoor Environments
Sound Dampening Properties for Resonance Reduction
Scratch, Crack, and Peel-Resistant
Chemical and Stain-Resistant
Impact Absorption
UV Protection
Provides Leak and Corrosion Prevention
Heavy Duty Fiberglass with Internal Bracing
Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
Durable, Coated Steel Subwoofer Grille for Extra Protection
XT-90 Connector Option for quick disconnect

SUBWOOFER FEATURES

8” 4Ω Spike Series Subwoofers (wired @ 2Ω) 400W-1000W Enclosure Power
Range (700W Ideal) Fiber Matrix Paper Cone with Mica Coating for Optimum
Sound Reproduction Dual Damping System for Linear Bass Reproduction
High Excursion Design for Ultra Low Bass

THERMAL & MECHANICAL ELEMENTS

2” Black Anodized Voice Coil Former for Superior Heat Dissipation
Dual Dust Cap System for Enclosure Compression Control
Efficient Heavy-Duty Motor Design
Efficient Motor Design via Magentic FEA Technology
Micro Level Bonding Adhesive for Increased Strength
High Density Ferrite Magnet
Push Style Terminals Provide Consistent Tension For a Reliable Connection
Grilles Included
High-Quality Mounting Hardware

SPECIFICATIONS

Speaker Model SPK-S4 (x2)

Subwoofer Size Dual 8”

Voice Coil Single 4 ohm

DC Resistance (Re) 2 ohm

Sensitivity 1W/M (SPL) 88dB

Frequency Response 20Hz – 250Hz

RMS Power Min: 400 watts / Ideal: 700 watts

Peak Power 1,000 watts

Speaker Displacement 0.10 cu ft / 2.88 Ltr

Speaker Weight 11.75 lbs

ENCLOSURE DIMENSIONS

Internal Tuning 39 Hz

Subsonic Filter Setting 31 Hz

Enclosure Weight 20.5 lbs

Total Weight 43 lbs

Height 7.5in / 19.05cm

Width 48in / 121.92cm

Depth 10.5in / 26.67cm
