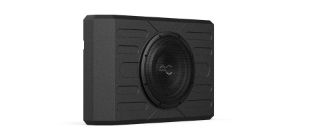

***Serialized*** Jeep Wrangler Swing Gate

SKU: ACO-TXJWB12

Brand part number: TXJWB12

Brand: Audiocontrol Speakers

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ENCLOSURE FEATURES

Roadkill-Armor Coat
Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
Weather-Resistant for Harsh Outdoor Environments
Sound Dampening Properties for Resonance Reduction
Scratch, Crack, and Peel-Resistant
Chemical and Stain-Resistant
Impact Absorption
UV Protection
Provides Leak and Corrosion Prevention
Heavy Duty 11-Layer High-Density Plywood Construction
Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
Durable, Coated Steel Subwoofer Grille for Extra Protection

SUBWOOFER FEATURES

12” 2Ω Space Series Subwoofer
200W-600W Power Range (400W Ideal)
Weather-Resistant Design
Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
Durable Isoprene Polymer Surround
Powder-Coated Frame
Wrap-Sealed Rubber Gasket to Protect Enclosure Interior

Thermal & Mechanical Elements

2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
Shallow Cone Design
Efficient Motor Design via Magentic FEA Technology
Micro Level Bonding Adhesive for Increased Strength
High-Density Ferrite Magnet
Push Type Terminals Provide Consistent Tension For a Reliable Connection
Grille Included
High-Quality Mounting Hardware

Note:
For JK/JKU vehicles with factory subwoofer, remove the factory subwoofer for clearance. Once removed, two OEM replacement subwoofer delete panels can be ordered online or acquired from a local Jeep dealer to retain the OEM look.

SPECIFICATIONS

Speaker Model SPC-12S2

Subwoofer Size 12”

Voice Coil Single 2 ohm

DC Resistance (Re) 2 ohm

Sensitivity 1W/M (SPL) 87 dB

Frequency Response 20Hz – 250Hz

RMS Power 400 watts

Speaker Displacement 0.06 cu ft / 1.82 Ltr

Speaker Weight 12.5 lbs

ENCLOSURE DIMENSIONS

Internal Volume 0.87 cu ft. / 24.7 Ltr

Enclosure Weight 17.5 lbs

Height 14in / 35.56cm

Width 28.5in / 72.39cm

Depth 6.1in / 15.5cm

Depth (with Speaker & Grill). 7.3in / 18.59cm
