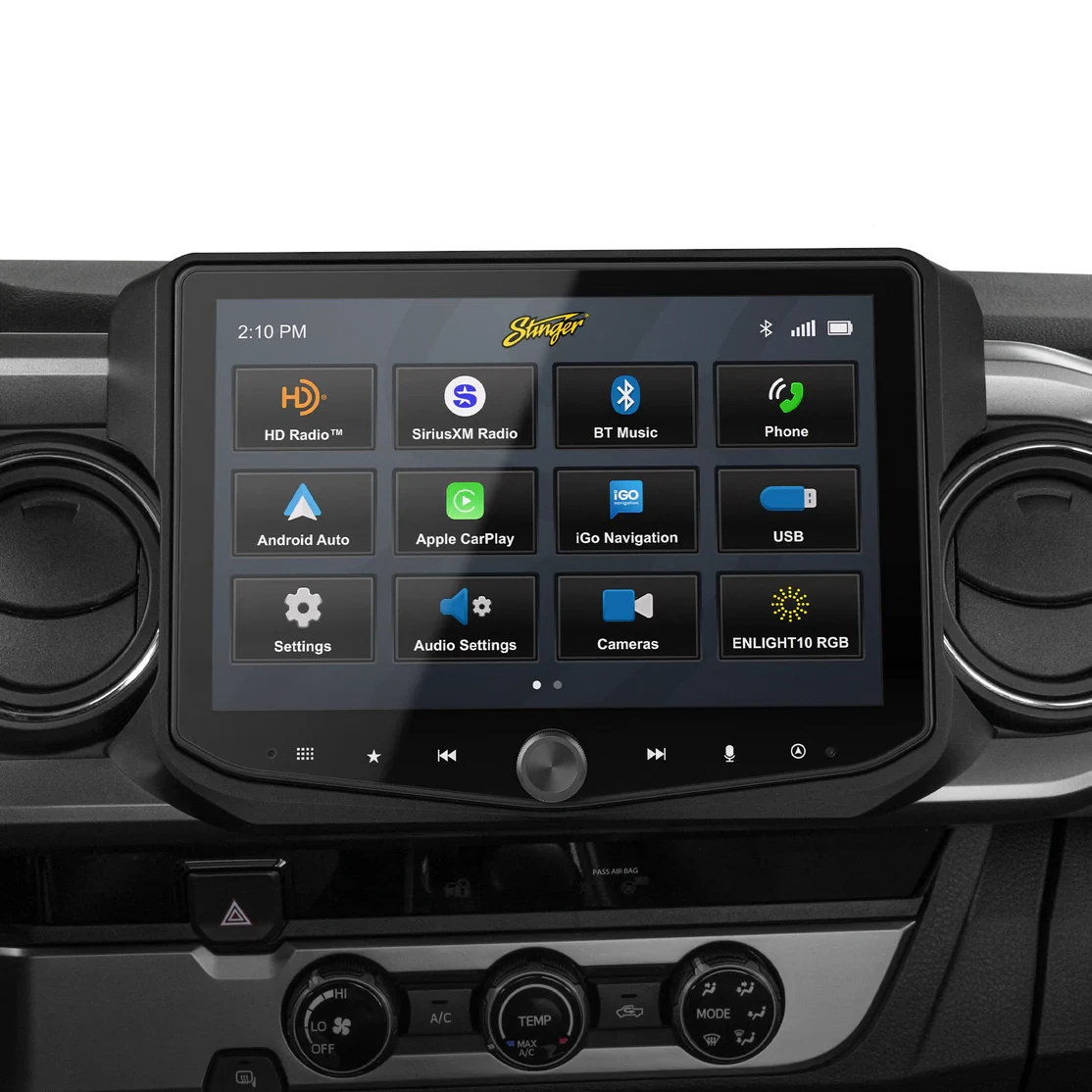

AM-SRX-TAC16128

GENERAL

• Operating Voltage: 10.5VDC to 16VDC
• Grounding system; Negative Ground
• Max current consumption: 15A fused

DIMENSIONS

• Radio Module: 177.7 mm x 112.96 mm x 50 mm (WxHxD)
• Display: 247.2 mm x 180.56 mm x 36.19 mm (WxHxD)

DISPLAY

• 10.1- inch Diagonal
• 16:10 aspect ratio
• 1280 × 800
• Pixels: 1,024,000
• Active area 216.96 (W) x 135.6 (H) mm
• Operating Temperature (C) -20° to 70°

AUDIO

• Load impedance: 4 Ω nominal / 2 Ω allowable
• Continuous power output: 18W x 4ch/4 Ω 20Hz to 20KHz, 1% THD at
  14.4V
• Speaker level adjustment: 0-40 steps
• Audio Preamp Output level: 4.5Vrms typical
• Audio Preamp 8 Channels: Front 1 Left, Frontl Right, Front 2 Left, Front 2 Right,
• Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.
• Equalizer: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz
• Gain: +/-6dB (0.5dB/step)
• Crossover level: 10 steps
• Front 1 and Rear output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
• Slope: 6dB, 12dB, 18dB
• Level: 0-15,1db/step
• Front 2 output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
  LPF: 25Hz|40Hz/63Hz|80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
• Slope: 6dB, 12dB, 18dB level: 0-15,1db/step
• Subwoofer Pre-lineout: 4.5Vrms typical, 7vrms maximum without distortion
• LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160H
  z/250Hz
• Slope: 6dB, 12dB, 18dB
• Gain: 0db to 15dB (1dB/step)
• Subwoofer level: 0-15, 1db/Step Phase: 0 or 180
• Time Alignment for 8 channels: 0 to 133 steps for inches and 0-99 steps for
  9.9ms
• User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.
• Source Gain: default 0db, -10 to 10 adjustable, 0.35db/Step.
• Volume Settings: Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately.
• Supports Internal & External Smart DSP
• AKM AK7739 Audio Processor
• DAC- Advanced 32bit

USB

• USB 2.0 (two)
• Max current supply 1.5A
• Max storage size: 128GB
• USB Class: A
• Supports: Video/Audio/Image Media
• Playback, Charging, and Firmware Update
• USB 3.0 (one)
• Max current supply 3А
• Max storage size: 128GB
• USB Class: C
• MSC (Mass Storage Class), MTP (Media Transfer Protocol)
• File system: FAT32, NTFS
• *Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update*When connecting Apple Car Play or Android Auto via USB, only USB-C connection is compatible.

BLUETOOTH

• V5.1 dual
• 4dBm Class2
• 2.4GHz to 2.48GHz

WI-FI (APPLE CARPLAY / ANDROID AUTO)

• Support lEEE 802.11a/b/g/n/ac
• Support 802.11ac 1xl, Wave-2 compliant with MU-MIMO STA mode
• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

HD RADIO™ FM TUNER

• 87.9MHz to 107.9MHz
• Usable sensitive 3dBuv (mono S/N: 30dB)
• SNR: 65dB

AM TUNER

• 530KHz to 1710KHz
• Usable sensitive 25dBuv (mono S/N: 20dB)
• SNR: 58dB

4 CAMERA VIDEO INPUTS

• NTSC, PAL, AHD 25 & 30 mhz
• Mirror Camera Image

ACCESSORY CONTROL

• 4x Accessory Control w. custom icon, name, & switch behavior

HDMI INPUT

• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720р, 1920*1080i, 1920*1080р

TOSLINK

• Output: 48khz Variable

AUDIO

• MPEG-1 Audio Layer-3 (mp3)
• FLAC (flac)
• MPEG-2 Advanced Audio (.aac)
• MPEG-4 Audio (m4a)
• Windows Audio (wav)
• OGG Audio (ogg)
• MP1
• MP2
• AAC
• AMR-NB
• AMR-WB
• APE
• PCM / ADPCM
• VORBIS
• OPUS
• WMA
• AC3/DDP
• DTS

VIDEO

• MPEG-4 Video, H.264 (.mp4)
• Microsoft AVI (.avi)
• MPG Video (.mpg)
• MPEG Video 1/2 (.mpeg)
• VOB DVD (.vob)
• Flash Video (.flv)
• MPEG-1
• MPEG-2
• H.263
• H.264
• H.265 (HEVC)
• WMV 7/8
• VC-1
• VP8
• M-JPEG


• JPEG (.jpg)
• CompuServe GIF (.gif)
• PNG (.png)
• JPEG (.jpeg)
• Bitmap (.bmp)

BACKGROUND IMAGE (USER)

• File Format: JPG / PNG
• Resolution: 1280 x 800
