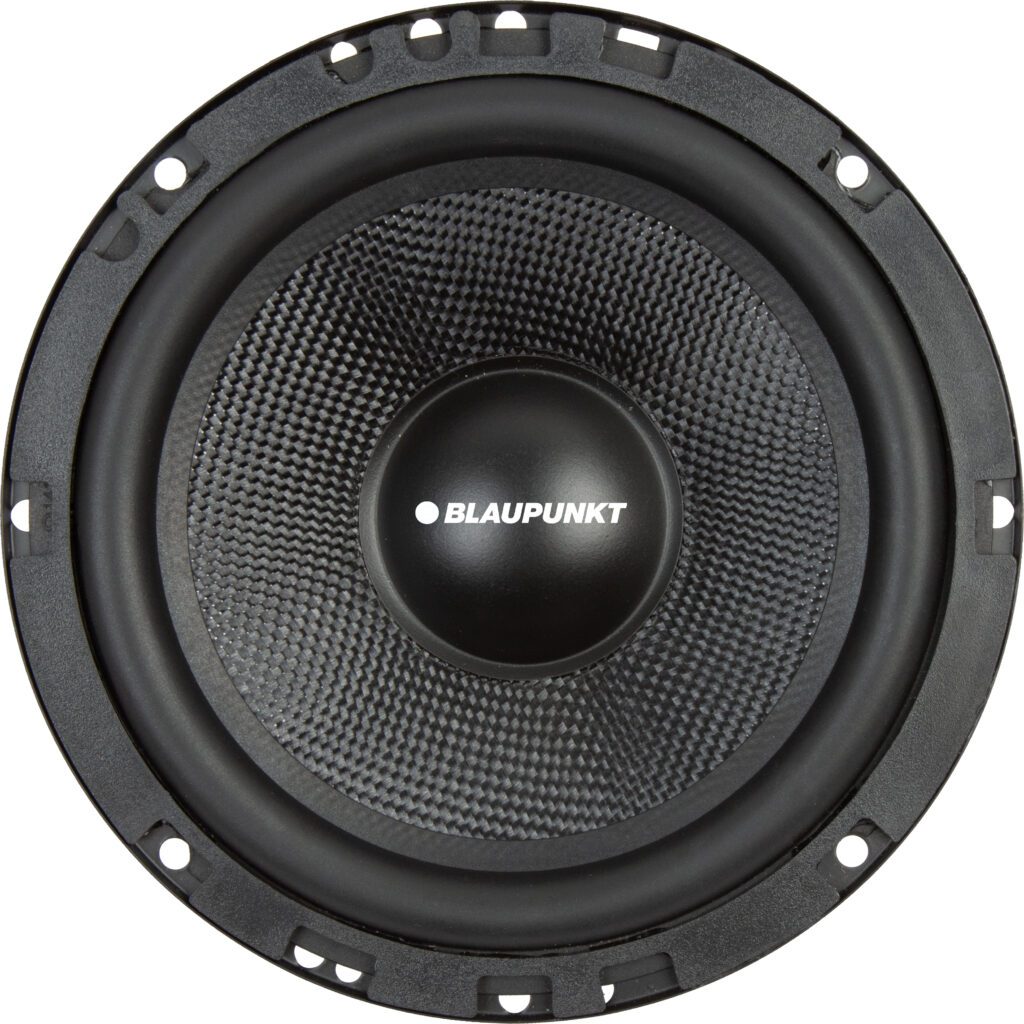

| Speaker Design | 6.5″ component |
| Woofer [in, mm] | 6.5in 165mm |
| Woofer Material | Carbon Fiber |
| Woofer Surround Material | Rubber |
| Tweeter [in, mm] | 2.4in 61mm |
| Dome Material | Silk |
| Peak Power | 70W |
| Recommended Amplifier Power [Watts RMS] | 35W |
| Effective Frequency Range [Hz] | 50~20000Hz |
| Woofer Mounting Hole Diameter [in, mm] | 5.59in 142mm |
| Top Mount Depth [in, mm] | 1.26in 32mm |
| Bottom Mount Depth [in, mm] | 2.28in 58mm |
| Flush Mounting Tweeter Hole Diameter | 2.09in 53mm |
| Flush Mounting Tweeter Depth [in,mm] | 0.91in 23mm |
| High Pass [dB] @ Hz | 12dB, 4000Hz |
| Low Pass [dB] @ Hz | 12dB, 4000Hz |
| High Frequency Output Attenuation [dB] | 0, 3&6 |
| Bolt Through Grills – Yes or No | Yes |
| Zn [Ω] | 4ohm |
| Re [Ω] | 3.7ohm |
| Splo [dB] @ 1W, 1M | 88.2dB |
