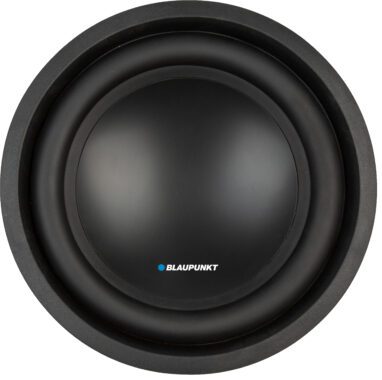

BL-BPW-HX120D

12" DVC Subwoofer

SKU: BL-BPW-HX120D

Brand part number: BPW-HX120D

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Speaker Design	12″ DVC
Woofer [in, mm]	12in 305mm
Rated Impedance	4+4 ohm
Peak Power Handling [Watts]	1000W
Continous Power Handling [Watts]	500W
Frequency Response [Hz]	25~500Hz
Mounting Hole Diameter [in, mm]	11.18in 284mm
Top Mount Depth [in, mm]	0.79in 20mm
Bottom Mount Depth [in, mm]	5.71in 145mm
Hole Cut-Out Diameter	11.18in 284mm
Woofer Material	Treated Paper
Surround Material	Rubber
Magnet Material	Ferrite
Trim Ring	Yes
Zn [Ω]	2.32ohm
fs [Hz]	35Hz
SPLo [dB@1W,1M]	87dB
Qts	0,67
Qms	5,46
Qes	0,77
Re [Ω]	3.2+3.2
Vas [Liters)	53,45
Xmax [mm]	15

Speaker Design	12″ DVC
Woofer [in, mm]	12in 305mm
Rated Impedance	4+4 ohm
Peak Power Handling [Watts]	1000W
Continous Power Handling [Watts]	500W
Frequency Response [Hz]	25~500Hz
Mounting Hole Diameter [in, mm]	11.18in 284mm
Top Mount Depth [in, mm]	0.79in 20mm
Bottom Mount Depth [in, mm]	5.71in 145mm
Hole Cut-Out Diameter	11.18in 284mm
Woofer Material	Treated Paper
Surround Material	Rubber
Magnet Material	Ferrite
Trim Ring	Yes
Zn [Ω]	2.32ohm
fs [Hz]	35Hz
SPLo [dB@1W,1M]	87dB
Qts	0,67
Qms	5,46
Qes	0,77
Re [Ω]	3.2+3.2
Vas [Liters)	53,45
Xmax [mm]	15
