Legacy Series 1xDIN MECHALESS / BT / FRONT+REAR USB / FIXED FACEPLATE / VARIABLE ILLUMI / SD CARD / 3PRE (4V)
SKU: BL-HAMBURGSQM23DAB
Brand part number: HAMBURGSQM23DAB
Brand: Blaupunkt


      Ship to
      *
      *
      Shipping Method
      Name
      Estimated Delivery
      Price
      No shipping options

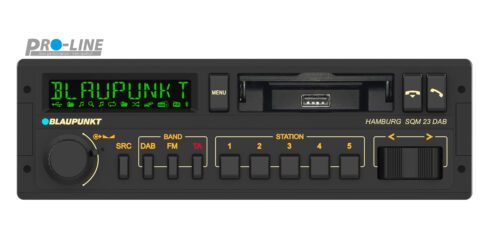

      The newly released cult car radio “HAMBURG SQM 23 DAB”

      Ideal for vehicles from the 80s!!

      Over the years, some models have developed into true cult objects. This also applies to the legendary Blaupunkt “Hamburg SQM 23” from 1983. Now we present the new interpretation of the popular 1-DIN car radio and combine the design of the 80s model with new technologies and functions. The result is the Blaupunkt “Hamburg SQM 23 DAB”.

      Its operating concept, simple design and crystal-clear reception contributed significantly to the popularity of the original Hamburg car radio. For the new edition, we adopted the styling of the original model, but at the same time gave the radio modern Variocolour lighting for the LC display. The key labels, which were then still illuminated with light bulbs, are now being replaced by modern and durable warm white LEDs. This lighting can also be activated via the vehicle lighting when the car radio is switched off.

      Thanks to the Blaupunkt Codem FM RDS tuner and DAB+ digital tuner, first-class reception remains a strength of the new Youngtimer car radio. New are the multimedia interfaces for modern Apple® devices and USB mass storage media for playing music or charging mobile phones. The new model also supports Bluetooth® audio streaming from apps such as a music player or streaming service such as Spotify on the mobile phone.

      With the help of the voice assistant on the mobile phone (such as Siri, Google or Alexa) the mobile phone can be accessed without having to pick it up. Of course, hands-free calling is also supported.

      So that an audio source such as USB, Apple iPod or Bluetooth can be selected directly, a button on the device can be programmed via the menu to start your favorite source. The device settings are permanently saved, even if the battery is disconnected – even if this is no longer necessary thanks to the minimized standby power consumption to protect the battery.

      The new “Hamburg SQM 23 DAB” has a short installation depth – ideal for classic cars with shortened installation shafts. But it’s not just the car radio itself that takes the user on a journey through time, the packaging of the device was also elaborately designed and modeled on the original.

      • CODEM IV High-End Tuner
      • Blaupunkt DAB+ Tuner
      • 2x USB (front + rear)
      • BT telephony over int. or ext. microphone
      • Audio streaming with title display
      • Access to voice assistants (Siri, Google, Alexa)
      • Sound presets: Flat/Pop/Rock/Classic
      • 4-channel preamp output + sub-out
      • 4 × 50 Watt
      • Variocolour (4,096 colors) display

      Variocolour LCD and front USB

      The display of the Hamburg SQM 23 DAB can be set in 4,096 different colors and thus adapted to the vehicle-specific cockpit lighting. One of the two USB ports is hidden behind the front flap. Short USB sticks can therefore visually disappear behind the flap to maintain the original look.





      Highlights

      RADIO
      • High-End CODEM IV World-tuner
      • FM, AM, DAB, DAB+ Tuner with radiotext/ DLS
      • Traffic function
      • alphabetical DAB+ List
      • Travelstore
      • Service following
      • Band Introscan

      MEDIAPLAYER
      • USB (2x)
      • MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV support
      • Introscan
      • Repeatfunction
      • Mixfunction
      • Apple iPod Support

      BLUETOOTH
      • Internal and external Microfon
      • Audiostreaming with trackinfo
      • Voice assistant support (e.g. Siri, Google, Alexa)
      • Wake-up on call
      • Phonebook access

      SOUND
      • Sound presets
      • Loudness
      • 4-channel pre-amp out+ Sub-out
      • 4x 50 Watt

      GENERAL
      • Variocolour LCD (4,096 colors)
      • DIM- function
      • Night design if switched off (Buttons)
      • Favoritebutton for one source
      • Permanent memory
      • Short body (low installation depth)
      • IR-remote option (compatible to old RC-10 remote control)
      • SWC option (Steering Wheel Control)

      Blaupunkt PRO-LINE
      Best performance – best quality!

      The BLAUPUNKT car multimedia and car radio products in the Pro-Line series offer the highest reception performance and stability in the area of ​​analog and digital radio reception thanks to exclusive tuner concepts.

      The high-quality components and the even stricter quality controls, thanks to the Blaupunkt quality management program, increase the reliability and service life of the products.




      Installation videos



      Pictures sent by our customers

      Do you have a nice photo of one of our retro car radios in your vehicle?
      Then send it by e-mail to: ticket@bpautomotive.de with the subject “Einbaufoto“.

      Mercedes

      Porsche

      Audi

      Volkswagen

      Opel

      Specifications


      Technical specifications

      RADIO ANALOG / DIGITAL

      Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV

      World Tuner (switchable): EU, USA, South America, Thailand

      Frequency bands: FM, AM, DAB, DAB+
      Frequency band FM: 87.5 – 108 MHz
      Frequency band MW: 531- 1602/ 530- 1710 kHz
      Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)

      Station memory: 15x FM, 10x AM, 15x DAB
      Station memory banks: FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3
      Station memory levels deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3

      Station display (PS): Yes
      Radiotext/ Radiotext Plus (RT/ RT+): Yes/ No
      Display DLS/ ENSEMBLE/ SERVICE: Yes/ Yes/ Yes
      Alternate frequency function (AF): Yes
      Traffic Radio (TA) FM/ DAB: Yes/ Yes
      Automatic time adjustment: Yes
      Enhanced Other Networks (EON): Yes
      Regional function (REG): Yes
      Program type identifier (PTY)/ PTY Seek: Yes/No

      Travelstore/ Number of Presets for Travelstore: Yes/ 5x FMT, 5x AMT
      Band Scan/ Preset Scan: Yes/ No

      Sensitivity (FM): Two levels (lo / dx)
      Noise suppression (FM): Yes
      Hi-Cut (FM): Yes (multi-level switchable)

      DAB-DAB Service following: Yes
      DAB-FM Service following: Yes
      Service search: Yes
      Ensemble/ Service selection: Yes/ Yes
      Ensemble/ Service browsing: No/ Yes
      Alphabetical Service list DAB: Yes

      Frequency response FM  (Hz) – 3 dB: 30 – 15.000
      Frequency response DAB (Hz) +/- 3 dB: 20 – 20.000



      MEDIAPLAYER

      AUX-IN/ automatic detection/ activation: No
      USB front: yes (type A, recessed jack)
      USB rear: yes (type A, cable)
      Memory card reader: No
      Concealed front inputs: Yes (USB usable with flap closed)
      Compatible file system of external storage devices: FAT16, FAT32, exFAT
      Maximum storage size of external storage devices: > 128 GB
      Maximum file/folder count of external storage devices: > 30.000
      CD-/DVD-loader: No

      Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV
      Hi-Res Audio playback: No
      Display options: ID3V2 (title, artist, album), folder, file, playtime

      Folder & file browsing: Yes

      iPod, iPhone control (iAP2, Lightning/ USB-C)   Yes (USB front and rear)

      Shuffle playback folder/ media: Yes/ Yes
      Repeat Title/ Folder/ All: Yes/ Yes/ Yes
      Introscan: Yes (4- 60 seconds adjustable)



      BLUETOOTH®*

      Phone call: Yes
      Internal microphone: Yes
      Connectivity ext. microphone: Yes
      Answer/ reject call: Yes/ Yes
      Access phonebook: Yes (max. 1000 numbers)

      Audio streaming: Yes
      Audio streaming ID3 track display: Yes (Title, Artist, Album, Playtime)

      Voice assistant access (e.g. Siri, Google, Alexa): Yes

      Cell phone navigation audio mix: No

      Auto wake-up on call: Yes (when radio off + ignition on), deactivatable

      Fast pairing without PIN: Yes
      Automatic reconnection: Yes, last 5 devices

      Bluetooth version: 5.0, compatible with V4.2 and V2.1 +EDR
      Number of paired devices: last 5
      No. of devices connected at the same time: 1
      Supported profiles: A2DP, AVRCP, HFP, SPP
      Audio Codecs: AAC, SBC

      *Availability/ support of functions depend on the phone/ app used!



      SOUND

      Equalizer Number of bands/ design/ Q-filter: No
      Bass/ treble adjustment: Yes / yes (+/- 7 steps)
      Source specific bass/ treble adjustment: Yes
      Balance/ fader: Yes / yes (+/- 7 steps)
      HPF/ LPF: No
      Loudness: Yes
      Sound Presets: Yes (Rock, Pop, Classic)

      Speaker Outputs (Channels): 4
      Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
      Sub-Out: 2 (RCA, gain/ frequency variable)
      Max. Power: 4 x 50 watts
      Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)



      GENERAL

      Display: LCD, negative, anti-reflective, wide angle, alphanumeric/ symbols
      Scrolling text: Yes (once, repeatedly)
      Illumination color display: 4,096 colors
      Illumination color keys: Amber, Modelled on original light bulb lighting
      Day/ Night mode: Yes (manual/ via dimmer connection)
      Nightdesign if powerd off: Yes (buttons)
      Brightness: Multi-level, variable
      Time display: Yes
      HMI languages: English, German
      1 hour off timer if ACC off: Yes, deactivatable
      Low standby current: Yes (< 3,5 mA )

      Antenna inputs: FM DIN/ ISO (Adaptor), DAB SMB (with 12 V phantom power)
      Telephone mute: Yes
      Ext. handsfree microphone connector: Yes, 2,5mm
      Remote control: Yes (IR input for card remote and old RC-10 remote control)
      Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)

      Variable scan time: Yes (4, 8, 12, 60s)
      Confirmation beep: Yes (deactivatable)
      Control panel type: Fixed panel
      Color panel/ decor ring: Black/ Black

      Software Update: via USB
      Permanent Memory: Yes (Settings & Presets)
      Demo mode: Yes
      Weight: approx. 0.65 kg
      Dimensions: 50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 187mm x 11mm (H x B x T , front w/o keys)
      Operating voltage/ power consumption: 10.5 – 14.4 V/ < 10A in operation, 10 sec. after ACC power off: < 3.5 mA



      SCOPE OF DELIVERY:

      User manual: Yes (DE, EN, DA, NL, FR, ES, PT, IT, PL, CS)
      External BT microphone: Yes
      Unlocking tool: Yes
      Connectors (ISO A, B): Yes
      Antenna adaptor (DIN/ ISO): Yes
      DAB antenna: Optional accessories (e.g. 2 006 021 000 000)
      IR remote control: Optional accessories (1 101 402 001 001)
