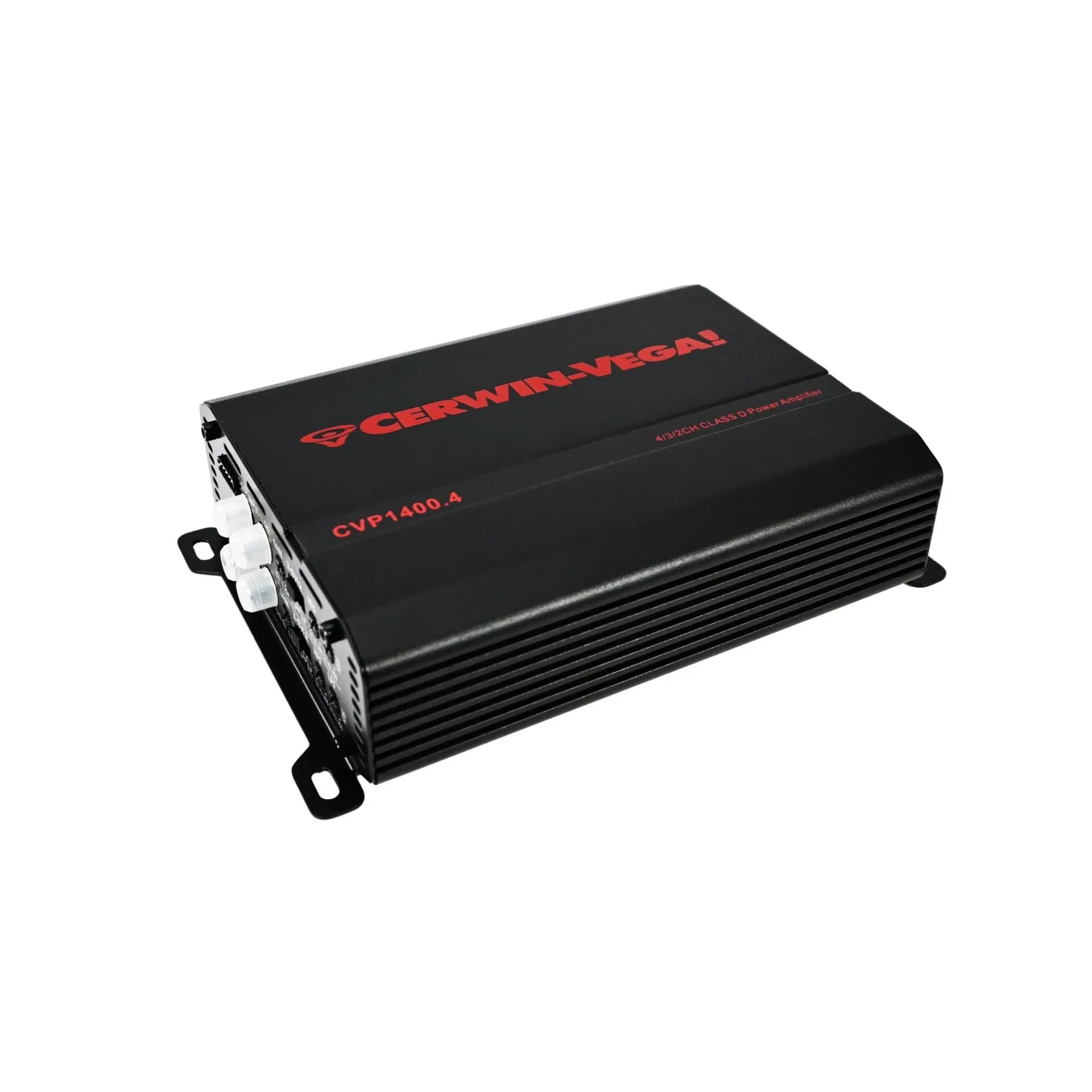

CW-CVP14004

• RMS Power Ratings @ 4Ω: 80W x 4
• RMS Power Ratings @ 2Ω: 140W x 4
• RMS Power Ratings Bridged @ 4Ω: 290W x 2
• Channel Separation: >60dB
• Frequency Response(+/-3bB): 10Hz-30KHz
• S/N Ratio @ A/W 30k: ≥90dB
• Sensitivity: 250mV-6V
• High Pass Filter(-6dB)/Subsonic: 52Hz-400Hz
• Low Pass Filter(-12dB): 52Hz-400Hz
• Power Protection Indicator
• Short Circuit And Thermal Protection
• Fuse: 30A x 2
• Dimensions (LxWxH): 7.28" x 4.92" x 1.93" (185mm x 125mm x 49mm)

FEATURES

• High-Level Inputs with Auto Turn On (4v-8v)
• Full MOSFET DC-DC PWM Power Supply
• Double Sided 2-Layer PC Board
• SMD Technology
• Adjustable Low-Pass and Hi-Pass Filters
• Short Circuit Protection
• Low Impedance Protection
• Reverse Polarity Protection
• Over Heating Protection
