DES 8" DVC 4 Ohm Subwoofer (250rms/500peak)
SKU: DA-DES84
Brand part number: DES84


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

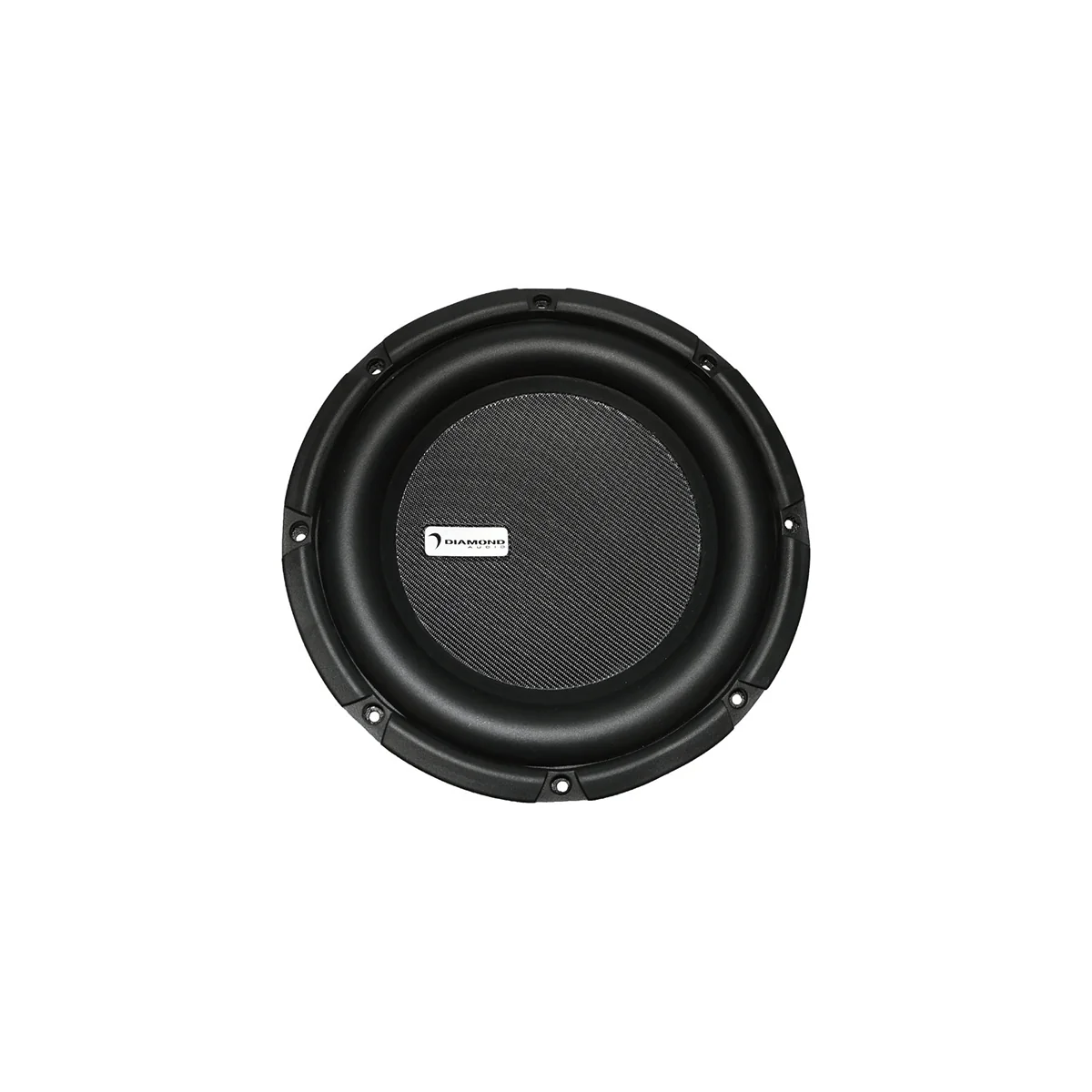

    DES84 - DES Series 8" Dual Voice Coil Subwoofer (4Ω)

    The Diamond Elite DES Series subwoofers epitomize quality craftsmanship and precision engineering, delivering the best performance in their class. Designed for versatility, these new DES subwoofers are perfect for a variety of enclosure designs, providing dynamic sound and that signature Diamond Audio bass, capable of withstanding long, extended listening sessions.

    Constructed with a high-grade reinforced hybrid paper fiber cone structure, the DES subwoofers handle extreme power effortlessly. The popular impedance switch feature adds to their versatility, ensuring that these subwoofers meet your specific audio needs without disappointment.

    Experience the unparalleled performance and durability of the Diamond Elite DES Series subwoofers. Upgrade your audio system with these meticulously engineered subwoofers and enjoy dynamic, powerful sound with exceptional reliability.



    Specifications

    THIELE/SMALL PARAMETERS

    • Power: 250W RMS/500W MAX
    • SPL(dB): 82.1
    • Re(Ω): 6.20
    • Qms: 11.00
    • Qes: 0.51
    • Qts: 0.48
    • Fs(Hz): 40.0
    • Vas(L): 8.20
    • Cms(mm/N): 0.150
    • Mms(g): 105.0
    • Sd(cm²): 196
    • BL(T*M): 18.0
    • Xmax(mm): 10.6

    DIMENSIONS

    • Diameter: 8.28" (210.4mm)
    • Mounting Diameter: 7.12" (181mm)
    • Mounting Depth: 4.4"(112mm)
    • Magnet Diameter: 6.51" (165.2mm)

    ENCLOSURES

    SEALED

    • Vb (ft3): 0.24
    • F3 (Hz): 68
    • QTC: .60
    • Pe (W): 250

    VENTED

    • Vb (ft3): 0.47
    • Fb(Hz): 44
    • F3(Hz): 40
    • Port (Diameter x Length): 2.56" (65.02mm) x 20" (508mm)
    • Pe (W): 250

    FEATURES

    • True Fiber Weave Paper Backed Parabolic Cone
    • High Grade Rolled Edged 6 Leg Black Powder Coat Stamped Frame
    • Oversized Chrome Push Terminals
    • Dual Mirror Image Spider With Woven Tinsel Leads
    • Black PVC Wrap Around Mounting Gasket
    • Vented Pole And Voice Coil Gap For Cooler Operation
    • Klippel Optimized Motor And Suspension Symmetry

    DES84 - DES Series 8" Dual Voice Coil Subwoofer (4Ω)

    The Diamond Elite DES Series subwoofers epitomize quality craftsmanship and precision engineering, delivering the best performance in their class. Designed for versatility, these new DES subwoofers are perfect for a variety of enclosure designs, providing dynamic sound and that signature Diamond Audio bass, capable of withstanding long, extended listening sessions.

    Constructed with a high-grade reinforced hybrid paper fiber cone structure, the DES subwoofers handle extreme power effortlessly. The popular impedance switch feature adds to their versatility, ensuring that these subwoofers meet your specific audio needs without disappointment.

    Experience the unparalleled performance and durability of the Diamond Elite DES Series subwoofers. Upgrade your audio system with these meticulously engineered subwoofers and enjoy dynamic, powerful sound with exceptional reliability.



    Specifications

    THIELE/SMALL PARAMETERS

    • Power: 250W RMS/500W MAX
    • SPL(dB): 82.1
    • Re(Ω): 6.20
    • Qms: 11.00
    • Qes: 0.51
    • Qts: 0.48
    • Fs(Hz): 40.0
    • Vas(L): 8.20
    • Cms(mm/N): 0.150
    • Mms(g): 105.0
    • Sd(cm²): 196
    • BL(T*M): 18.0
    • Xmax(mm): 10.6

    DIMENSIONS

    • Diameter: 8.28" (210.4mm)
    • Mounting Diameter: 7.12" (181mm)
    • Mounting Depth: 4.4"(112mm)
    • Magnet Diameter: 6.51" (165.2mm)

    ENCLOSURES

    SEALED

    • Vb (ft3): 0.24
    • F3 (Hz): 68
    • QTC: .60
    • Pe (W): 250

    VENTED

    • Vb (ft3): 0.47
    • Fb(Hz): 44
    • F3(Hz): 40
    • Port (Diameter x Length): 2.56" (65.02mm) x 20" (508mm)
    • Pe (W): 250

    FEATURES

    • True Fiber Weave Paper Backed Parabolic Cone
    • High Grade Rolled Edged 6 Leg Black Powder Coat Stamped Frame
    • Oversized Chrome Push Terminals
    • Dual Mirror Image Spider With Woven Tinsel Leads
    • Black PVC Wrap Around Mounting Gasket
    • Vented Pole And Voice Coil Gap For Cooler Operation
    • Klippel Optimized Motor And Suspension Symmetry
    Products specifications
    Warranty2 YEAR DLR
    Master Pack4
    FF Level500
    Products specifications
    Warranty2 YEAR DLR
    Master Pack4
    FF Level500
