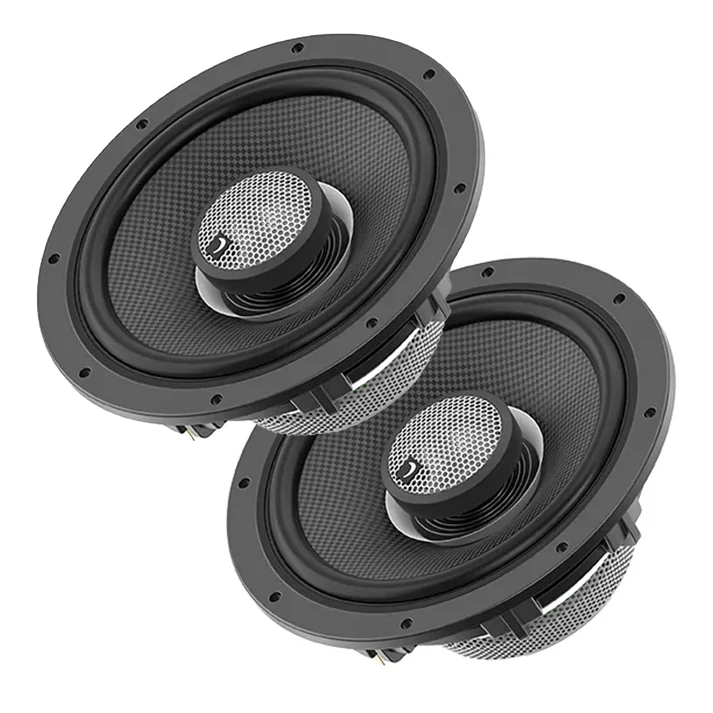

MOTORSPORT SERIES 2-WAY 6.5" 2-OHM FLUSH MOUNT SPKR BLACK CARBON - 450W MAX/150W RMS
SKU: DA-HXM65F2BK
Brand part number: HXM65F2BK


Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

6.5"- 2Ω High Output, Waterproof, Carbon Cone, Oversized Tweeter

Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. These speakers don’t just play music — they transform your listening experience into something extraordinary. Don’t settle for ordinary sound. If you’re looking for quality, high-performance speakers for your next Marine or Motorsports application. Choose Diamond Audio’s HXMFB Series Coaxial Drivers — because your music deserves the best.



Specifications

SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (Ω) [SERIES]: 1.8
QMS: 7.506
QES: 0.369
QTS: 0.352
FS (HZ): 105
VAS (L): 6.172
CMS (MM/N): 0.288
MMS (G): 8.024
SD (M2): 122.718
BL (T*M): 5.068
XMAX (MM): 2.75
POWER HANDLING RMS: 150
POWER HANDLING MAX: 450
MOUNTING DEPTH: IN.(MM):2.52" (64MM)
CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)

6.5"- 2Ω High Output, Waterproof, Carbon Cone, Oversized Tweeter

Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. These speakers don’t just play music — they transform your listening experience into something extraordinary. Don’t settle for ordinary sound. If you’re looking for quality, high-performance speakers for your next Marine or Motorsports application. Choose Diamond Audio’s HXMFB Series Coaxial Drivers — because your music deserves the best.



Specifications

SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (Ω) [SERIES]: 1.8
QMS: 7.506
QES: 0.369
QTS: 0.352
FS (HZ): 105
VAS (L): 6.172
CMS (MM/N): 0.288
MMS (G): 8.024
SD (M2): 122.718
BL (T*M): 5.068
XMAX (MM): 2.75
POWER HANDLING RMS: 150
POWER HANDLING MAX: 450
MOUNTING DEPTH: IN.(MM):2.52" (64MM)
CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)

Products specifications
Master Pack1
Unit of MeasurePAIR
Warranty2 YEAR DLR
FF Level500
Products specifications
Master Pack1
Unit of MeasurePAIR
Warranty2 YEAR DLR
FF Level500
