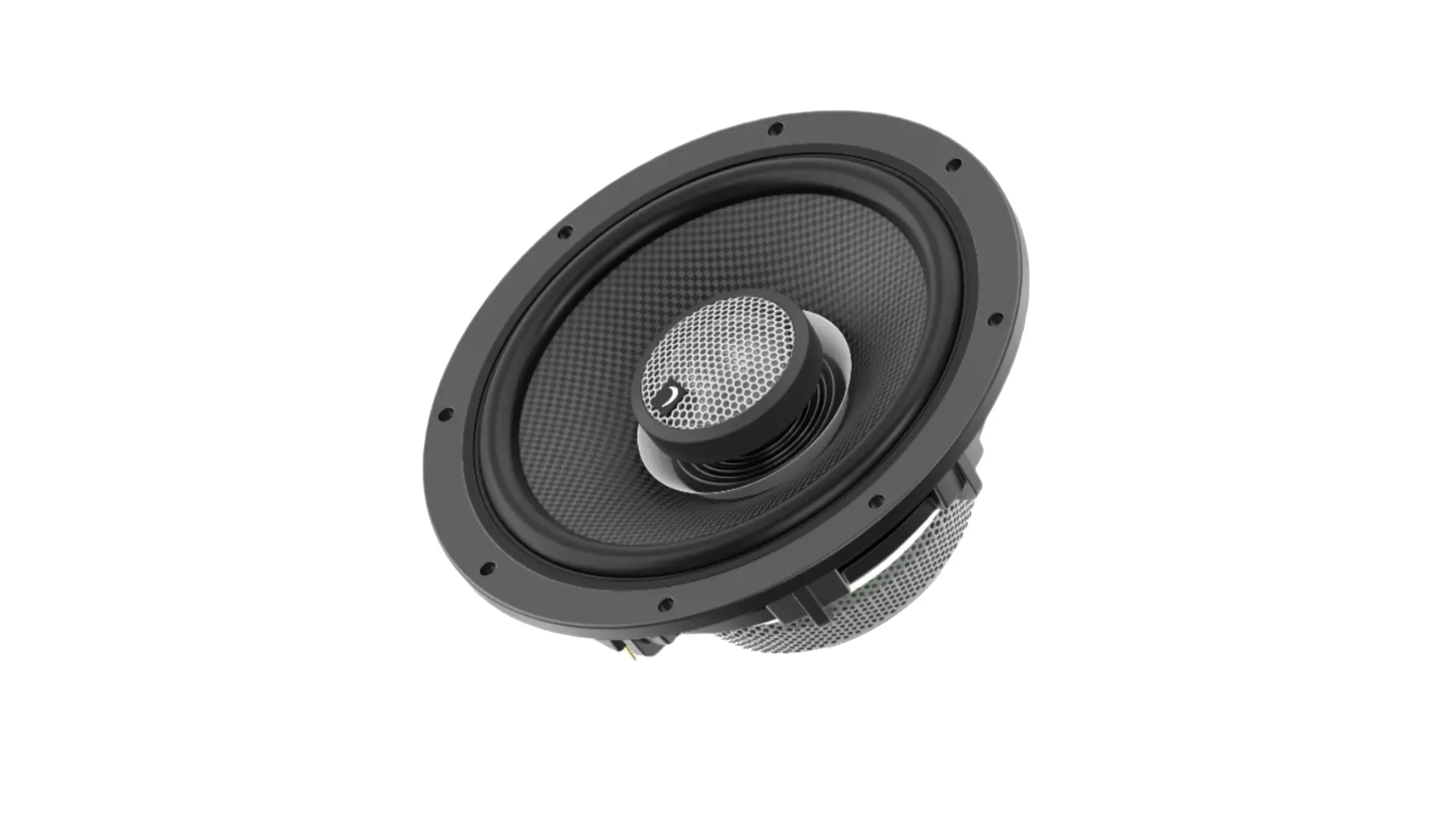

MOTOSPORT 2-WAY 6.5" 4-OHM FLUSH MOUNT SPEAKER BLACK CARBON CONE- 450W MAX/150W RMS
SKU: DA-HXM65F4BK
Brand part number: HXM65F4BK
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
    These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. These speakers don’t just play music — they transform your listening experience into something extraordinary. Don’t settle for ordinary sound. If you’re looking for quality, high-performance speakers for your next Marine or Motorsports application. Choose Diamond Audio’s HXMB Series Coaxial Drivers — because your music deserves the best.



    Specifications

    SPEAKER SIZE - 6.5"
    SPEAKER TYPE - HORN LOADED CO AXIAL
    OHMS (PER COIL) - 4
    NUMBER OF VOICE COILS - SINGLE
    CONE MATERIAL - CARBON FIBER
    DIAPHRAGM MATERIAL - TITANIUM
    BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
    MAGNET TYPE - NEODYMIUM
    SURROUND MATERIAL - RUBBER
    WATER RESISTANCE -
    VOICE COIL DIAMETER - INCH (MM) - 2"
    THIELE/SMALL PARAMETERS
    SENSITIVITY (1W/1M): 95
    RE (Ω) [SERIES]: 1.8
    QMS: 7.506
    QES: 0.369
    QTS: 0.352
    FS (HZ): 105
    VAS (L): 6.172
    CMS (MM/N): 0.288
    MMS (G): 8.024
    SD (M2): 122.718
    BL (T*M): 5.068
    XMAX (MM): 2.75
    POWER HANDLING RMS: 125
    POWER HANDLING MAX: 250
    MOUNTING DEPTH: IN.(MM):2.52" (64MM)
    CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
    OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
    OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)

    Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
    These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. These speakers don’t just play music — they transform your listening experience into something extraordinary. Don’t settle for ordinary sound. If you’re looking for quality, high-performance speakers for your next Marine or Motorsports application. Choose Diamond Audio’s HXMB Series Coaxial Drivers — because your music deserves the best.



    Specifications

    SPEAKER SIZE - 6.5"
    SPEAKER TYPE - HORN LOADED CO AXIAL
    OHMS (PER COIL) - 4
    NUMBER OF VOICE COILS - SINGLE
    CONE MATERIAL - CARBON FIBER
    DIAPHRAGM MATERIAL - TITANIUM
    BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
    MAGNET TYPE - NEODYMIUM
    SURROUND MATERIAL - RUBBER
    WATER RESISTANCE -
    VOICE COIL DIAMETER - INCH (MM) - 2"
    THIELE/SMALL PARAMETERS
    SENSITIVITY (1W/1M): 95
    RE (Ω) [SERIES]: 1.8
    QMS: 7.506
    QES: 0.369
    QTS: 0.352
    FS (HZ): 105
    VAS (L): 6.172
    CMS (MM/N): 0.288
    MMS (G): 8.024
    SD (M2): 122.718
    BL (T*M): 5.068
    XMAX (MM): 2.75
    POWER HANDLING RMS: 125
    POWER HANDLING MAX: 250
    MOUNTING DEPTH: IN.(MM):2.52" (64MM)
    CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
    OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
    OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)

    Products specifications
    Master Pack4
    Unit of MeasurePAIR
    Warranty2 YEAR DLR
    FF Level100
    Products specifications
    Master Pack4
    Unit of MeasurePAIR
    Warranty2 YEAR DLR
    FF Level100
