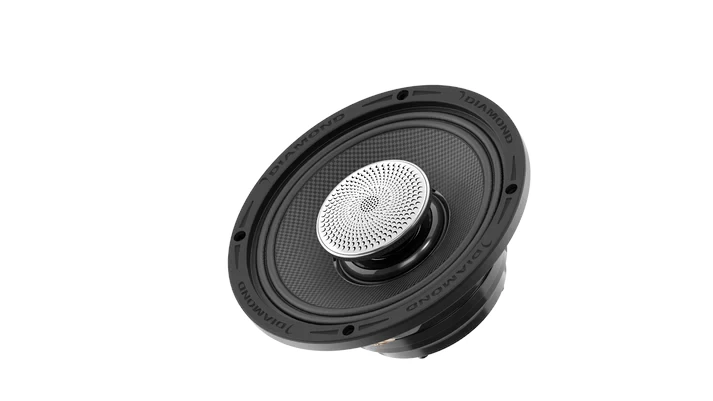

MOTORSPORT SERIES 6.5" NEODYMIUM FULL RANGE COAXIAL HORN WATERPROOF, 400W RMS 4O SHALLOW MOUNT
SKU: DA-MS652NEO4S
Brand part number: MS652NEO4S
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    6.5" 2-Way Coaxial Shallow Mount NEO Speakers (4Ω)

    Slim profile, massive attitude. The Diamond Audio MS652NEO4S 6.5" 2-way coaxial shallow mount NEO speakers (4Ω) are engineered for tight installation spaces without sacrificing the bold, high-output performance the NEO Series is known for. Designed for motorcycles, cars, and powersports vehicles, these speakers deliver clean, aggressive sound that slices through wind and road noise like a sonic blade.

    Built around a horn-loaded coaxial design, the MS652NEO4S projects audio with exceptional clarity and distance, making vocals and instruments stand out even in open-air environments. Whether mounted in fairings, doors, or compact enclosures, these 6.5-inch shallow mount speakers provide a powerful and immersive listening experience.

    The carbon fiber cone offers excellent rigidity and responsiveness, producing tight, controlled mid-bass with minimal distortion. Paired with a PEN (polyethylene naphthalate) diaphragm, the high frequencies remain crisp and detailed, creating a balanced and dynamic sound profile.

    At the heart of the system is a high-efficiency neodymium motor, delivering strong output in a compact footprint. With 200W RMS / 600W MAX power handling and 93dB sensitivity, the 4-ohm configuration ensures stable performance and compatibility with a wide range of amplifiers.

    The dual voice coil, bi-ampable design allows for flexible system tuning, giving installers and enthusiasts greater control over their audio setup. A rugged cast aluminum basket provides structural strength and vibration resistance, ensuring long-lasting durability even in demanding riding conditions.

    With an ultra-slim 2.74-inch mounting depth, the MS652NEO4S is perfect for space-restricted installations where traditional speakers won’t fit.

    Key Features

    • Model: MS652NEO4S
    • 6.5" 2-way coaxial shallow mount speakers (4Ω)
    • 200W RMS / 600W MAX power handling
    • Horn-loaded design for superior projection
    • Carbon fiber cone for accurate mid-bass
    • Neodymium motor for high efficiency
    • Bi-amp capable dual voice coils
    • Cast aluminum basket for durability
    • Ultra-shallow mounting depth (2.74")

    The Diamond Audio MS652NEO4S NEO Series speakers deliver powerful, precise, and space-saving performance, making them the perfect upgrade for high-performance audio systems where every inch matters and every note counts.



    Specifications

    • SPEAKER SIZE - 6.5"
    • SPEAKER TYPE - HORN LOADED CO AXIAL
    • BI-AMPABLE YES
    • OHMS (PER COIL) - 2
    • NUMBER OF VOICE COILS - DUAL
    • FIELD SERVICABLE VOICE COIL - YES
    • CONE MATERIAL - CARBON FIBER
    • DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE
    • NAPHTHALATE
    • BASKET MATERIAL - CAST ALUMINIUM
    • MAGNET TYPE - NEODYMIUM
    • SURROUND MATERIAL - RUBBER
    • WATER RESISTANCE -
    • VOICE COIL DIAMETER - INCH (MM) - 2"
    • THIELE/SMALL PARAMETERS
    • SENSITIVITY (1W/1M): 93
    • RE (Ω) [SERIES]: 3.2
    • QMS: 10.357
    • QES: 0.67
    • QTS: 0.629
    • FS (HZ): 151
    • VAS (L): 2.756
    • CMS (MM/N): 0.094
    • MMS (G): 11.728
    • SD (M2): 143.14
    • BL (T*M): 7.289
    • XMAX (MM): 1.2
    • POWER HANDLING RMS: 200W
    • POWER HANDLING MAX: 600W
    • MOUNTING DEPTH: IN.(MM):2.74"" (69.50MM)
    • CUT OUT DIAMETER IN.(MM):5.63"" (143MM)
    • OVER ALL DIAMETER IN.(MM):6.29"" (159.68MM)
    • OVER ALL HEIGHT IN.(MM):3.38"" (85.9MM)

    6.5" 2-Way Coaxial Shallow Mount NEO Speakers (4Ω)

    Slim profile, massive attitude. The Diamond Audio MS652NEO4S 6.5" 2-way coaxial shallow mount NEO speakers (4Ω) are engineered for tight installation spaces without sacrificing the bold, high-output performance the NEO Series is known for. Designed for motorcycles, cars, and powersports vehicles, these speakers deliver clean, aggressive sound that slices through wind and road noise like a sonic blade.

    Built around a horn-loaded coaxial design, the MS652NEO4S projects audio with exceptional clarity and distance, making vocals and instruments stand out even in open-air environments. Whether mounted in fairings, doors, or compact enclosures, these 6.5-inch shallow mount speakers provide a powerful and immersive listening experience.

    The carbon fiber cone offers excellent rigidity and responsiveness, producing tight, controlled mid-bass with minimal distortion. Paired with a PEN (polyethylene naphthalate) diaphragm, the high frequencies remain crisp and detailed, creating a balanced and dynamic sound profile.

    At the heart of the system is a high-efficiency neodymium motor, delivering strong output in a compact footprint. With 200W RMS / 600W MAX power handling and 93dB sensitivity, the 4-ohm configuration ensures stable performance and compatibility with a wide range of amplifiers.

    The dual voice coil, bi-ampable design allows for flexible system tuning, giving installers and enthusiasts greater control over their audio setup. A rugged cast aluminum basket provides structural strength and vibration resistance, ensuring long-lasting durability even in demanding riding conditions.

    With an ultra-slim 2.74-inch mounting depth, the MS652NEO4S is perfect for space-restricted installations where traditional speakers won’t fit.

    Key Features

    • Model: MS652NEO4S
    • 6.5" 2-way coaxial shallow mount speakers (4Ω)
    • 200W RMS / 600W MAX power handling
    • Horn-loaded design for superior projection
    • Carbon fiber cone for accurate mid-bass
    • Neodymium motor for high efficiency
    • Bi-amp capable dual voice coils
    • Cast aluminum basket for durability
    • Ultra-shallow mounting depth (2.74")

    The Diamond Audio MS652NEO4S NEO Series speakers deliver powerful, precise, and space-saving performance, making them the perfect upgrade for high-performance audio systems where every inch matters and every note counts.



    Specifications

    • SPEAKER SIZE - 6.5"
    • SPEAKER TYPE - HORN LOADED CO AXIAL
    • BI-AMPABLE YES
    • OHMS (PER COIL) - 2
    • NUMBER OF VOICE COILS - DUAL
    • FIELD SERVICABLE VOICE COIL - YES
    • CONE MATERIAL - CARBON FIBER
    • DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE
    • NAPHTHALATE
    • BASKET MATERIAL - CAST ALUMINIUM
    • MAGNET TYPE - NEODYMIUM
    • SURROUND MATERIAL - RUBBER
    • WATER RESISTANCE -
    • VOICE COIL DIAMETER - INCH (MM) - 2"
    • THIELE/SMALL PARAMETERS
    • SENSITIVITY (1W/1M): 93
    • RE (Ω) [SERIES]: 3.2
    • QMS: 10.357
    • QES: 0.67
    • QTS: 0.629
    • FS (HZ): 151
    • VAS (L): 2.756
    • CMS (MM/N): 0.094
    • MMS (G): 11.728
    • SD (M2): 143.14
    • BL (T*M): 7.289
    • XMAX (MM): 1.2
    • POWER HANDLING RMS: 200W
    • POWER HANDLING MAX: 600W
    • MOUNTING DEPTH: IN.(MM):2.74"" (69.50MM)
    • CUT OUT DIAMETER IN.(MM):5.63"" (143MM)
    • OVER ALL DIAMETER IN.(MM):6.29"" (159.68MM)
    • OVER ALL HEIGHT IN.(MM):3.38"" (85.9MM)
    Products specifications
    Master Pack4
    Unit of MeasurePAIR
    Warranty2 YEAR DLR
    FF Level500
    Products specifications
    Master Pack4
    Unit of MeasurePAIR
    Warranty2 YEAR DLR
    FF Level500
