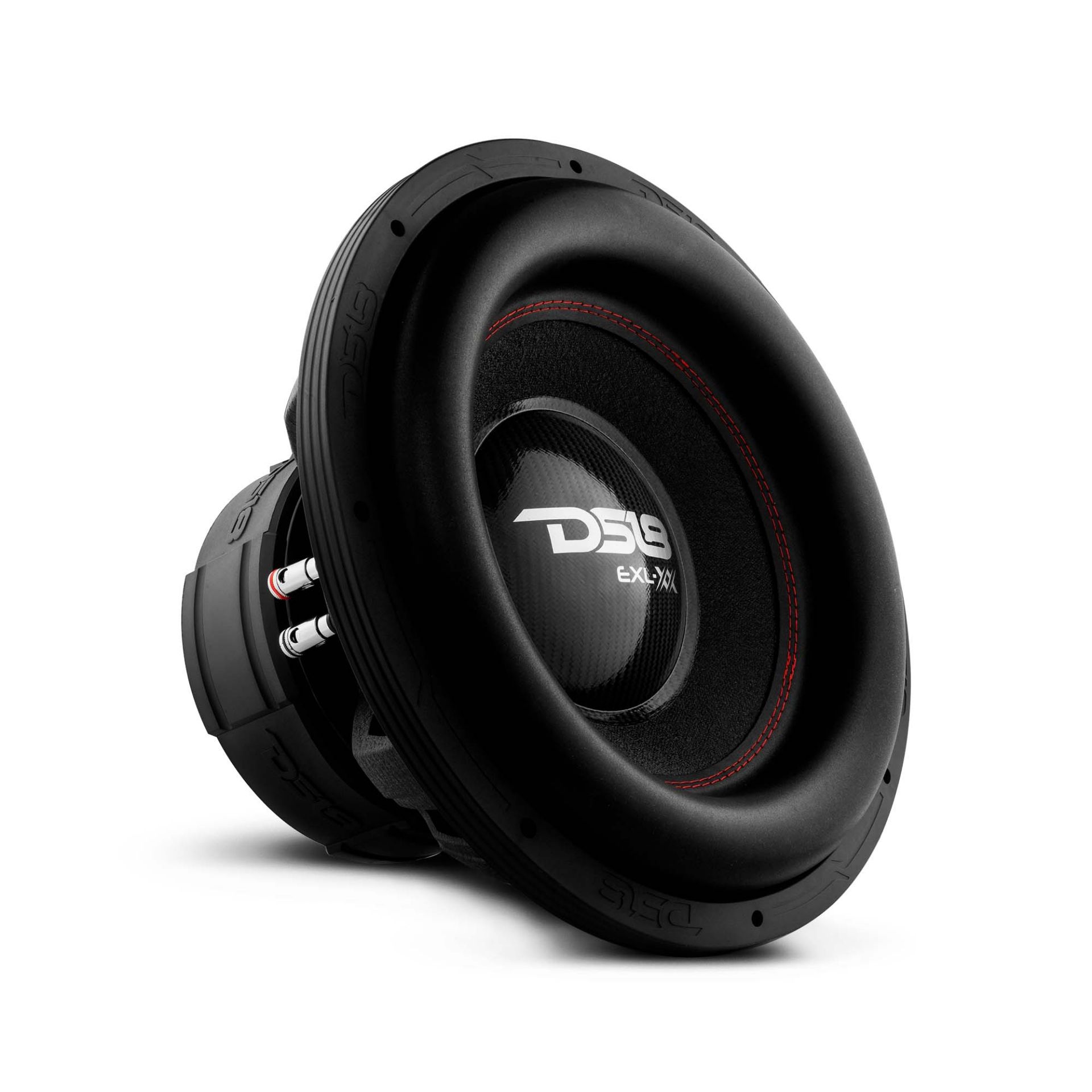

DD-EXL-XX154DHE

SPECS

SKU
HOOL-X15.4DHE
Nominal Diameter
15” / 381mm
Nominal Impedance
4+4 ohms
RMS Power Handling
4000W
MAX Power Handling
6000W
Sensitivity (1w/1m)
88.3dB
Frequency Response
16-500Hz
Recommended Lo Pass Crossover
80Hz

MOTOR

Voice Coil Diameter
4” / 99.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
Carbon Fiber
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Gloss Black with Machined Aluminum
Magnet Material
Ferrite
Magnet Weight
500 OZ
Displacement Volume
9.1 L / 0.32 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume
66.83L / 2.36 ft3
Free Air Resonance
26 Hz
Mechanical Factor
4.75
Electrical Factor
0.508
Total Factor
0.375
Moving Mass
459.68 g
Compliance
0.026 mm/N
Bl Factor
19.35
Voice Coil Inductance
2.078 mH
Diaphragm Area
754.77 cm²
DC Resistance
3.6+3.6 ohms
Efficiency Bandwidth Product
51.1

RECOMMENDED ENCLOSURES

Sealed Internal Volume
35.4L / 1.25ft3
Sealed Box Output Response
45Hz
Ported Internal Volume
70.8L / 2.5ft3
Port Size *Square (W x H x Long)
2.47" x 15" x 37" / 62.7 x 381 x 939.8 mm
Port Tunning Frequency
30Hz
Ported Box Output Response
26.5Hz

MEASUREMENT

Overall Diameter
15.56” / 395mm
Overall Depth
13.31” / 338mm
Front Mount Baffle Cutout
14.10” / 358mm
Mounting Depth
11.19” / 284mm
Motor Diameter
9.96” / 253mm
Product Weight (lb)
89
Dimensions L x W x H (Inches)
17.75 x 17.75 x 16
M/C Weight (lb)
89
M/C Dimensions L x W x H (Inches)
17.75 x 17.75 x 16
M/C Qty
1
Sold in
Single
