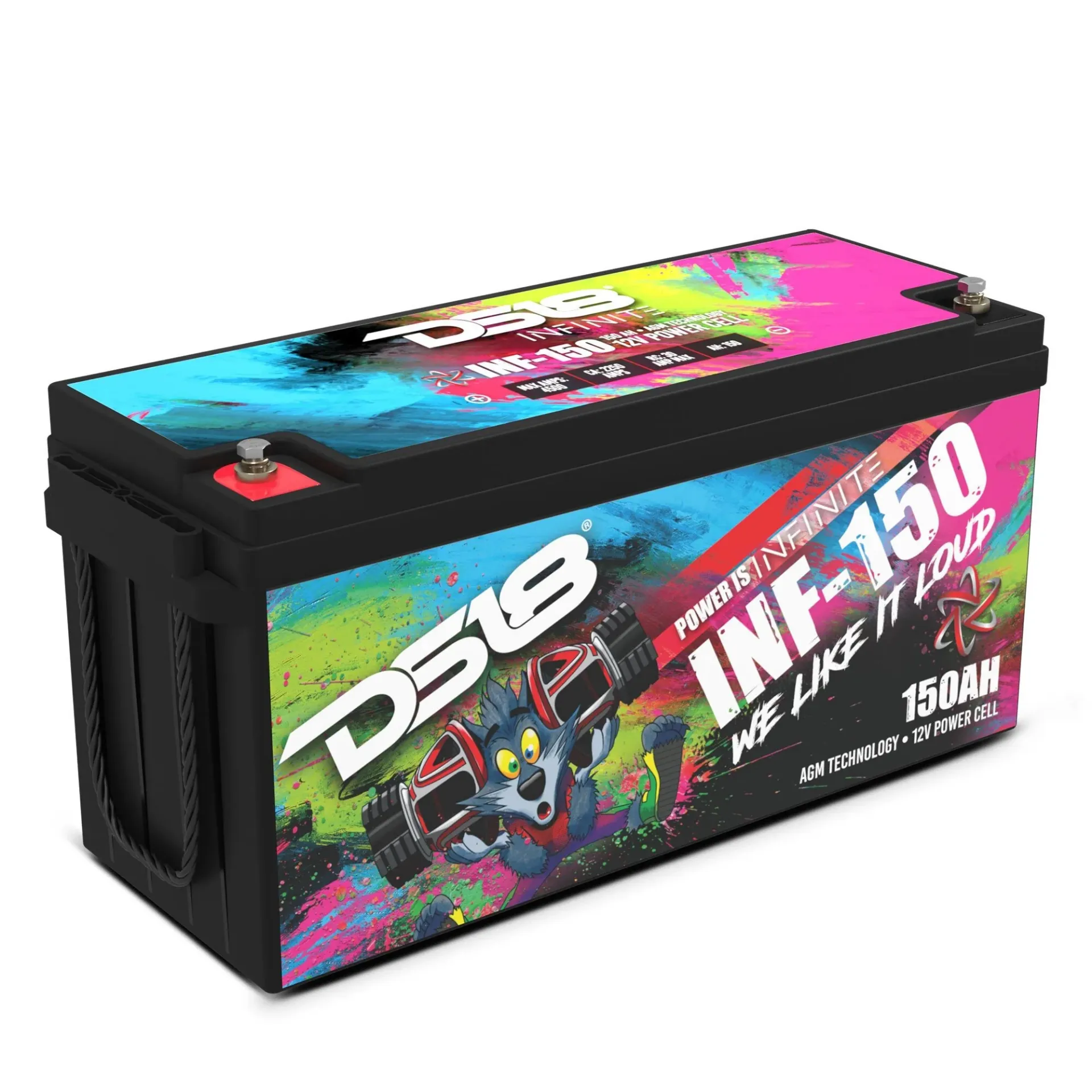

DD-INF-150

SPECS

SKU
INF-150AH
Battery Type
AGM
Nominal Voltage
12.8 V
Capacity
150Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F)
Maximum Discharge Current
4500 Amps
Cranking Amps (CA)
2250 Amps
Cold Cranking Amps (CCA)
1080 Amps

SPECS

Watts (RMS)
4000W
Internal Resistance
Approx. 4 mΩ
Float Charging Voltage
13.5 to 13.8 Vdc / unit average at 25°C (77°F)
Recommended Charging Current
30 Amps
Nominal Operating Temperature Range
25°C +/- 3° (77°F +/- 5°)
Bolt / Terminal Type
Theard Lead Alloy Recessed / M8 Bolt
Battery Group
N/A

MEASUREMENT

Overall Length
19"
Overall Width
7.5"
Overall Height
11.25"
Weight
89.5 lb
