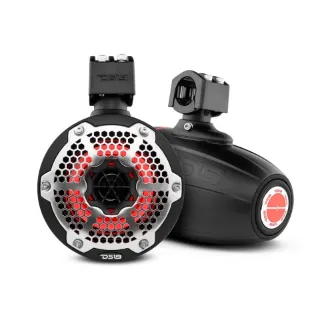

NXL 6.5" Neodymium Marine and Powersports Towers with Built-in Passive Radiator, 1" Driver and LED RGB Lights 150 Watts Rms -Black
SKU: DD-NXL-X6TPNEO/BK
Brand part number: NXL-X6TPNEO/BK
Brand: DS18
    DISCONTINUED ITEM
      Ship to
      *
      *
      Shipping Method
      Name
      Estimated Delivery
      Price
      No shipping options

      Technical Data - Manual



      SPECS

      SKU
      NXL-X6TPNEO/BK
      Nominal Diameter
      6.5 inch
      Nominal Impedance
      4 Ohm
      RMS Power Handling
      150W
      MAX Power Handling
      450W
      Sensitivity (1w/1m)
      93 dB
      Frequency Response
      70 Hz - 21 KHz
      Recommended HI Pass Crossover
      90Hz



      Body / Features

      Enclosure Material
      Injection PC+ABS
      Marine Grade Type
      IP65+UV Stable
      RGB LED
      Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
      Grill Type
      ABS+316 Stainless Metal Mesh
      Pair
      Yes
      Clamps
      Die-Cast Adjustable (1"~2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
      Front Logo
      Yes, can be rotated for correct angle display
      Rear Logo
      Yes, Radiator Fixed position
      Finish
      Matte Black / Gloss White / Gloss Red



      Woofer Specifications

      Voice Coil Diameter
      1.5 inch
      Cone Material
      Waterproof Compress Paper + Carbon Fiber
      Surround Material
      Soft PC Damping Glued
      Basket Material
      PC Injection Molded Composite
      Magnet Material
      Neodymium
      Magnet Grade
      N40H
      Passive Radiator
      Yes, 3.5" With LED RGB Light



      Tweeter Specifications

      Voice Coil Diameter
      1 inch
      Type
      Compression Driver with CNC Solid Aluminum Horn
      Diaphragm Material
      PEN
      Magnet Material
      Neodymium
      Crossover
      12dB with Over Power Protection



      Thiele & Small Parameters

      Equivalent Volume Vas
      8.5 L
      Excursion (one way) Xmax
      3 mm
      Free Air Resonance Fs
      75 Hz
      Total Factor Qts
      0.783



      Speaker Measurement

      Overall Diameter
      6.93" / 176.1mm
      Overall Depth
      11.33" / 287.8mm
      Overall Height
      10.7" / 271.7mm

      Technical Data - Manual



      SPECS

      SKU
      NXL-X6TPNEO/BK
      Nominal Diameter
      6.5 inch
      Nominal Impedance
      4 Ohm
      RMS Power Handling
      150W
      MAX Power Handling
      450W
      Sensitivity (1w/1m)
      93 dB
      Frequency Response
      70 Hz - 21 KHz
      Recommended HI Pass Crossover
      90Hz



      Body / Features

      Enclosure Material
      Injection PC+ABS
      Marine Grade Type
      IP65+UV Stable
      RGB LED
      Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
      Grill Type
      ABS+316 Stainless Metal Mesh
      Pair
      Yes
      Clamps
      Die-Cast Adjustable (1"~2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
      Front Logo
      Yes, can be rotated for correct angle display
      Rear Logo
      Yes, Radiator Fixed position
      Finish
      Matte Black / Gloss White / Gloss Red



      Woofer Specifications

      Voice Coil Diameter
      1.5 inch
      Cone Material
      Waterproof Compress Paper + Carbon Fiber
      Surround Material
      Soft PC Damping Glued
      Basket Material
      PC Injection Molded Composite
      Magnet Material
      Neodymium
      Magnet Grade
      N40H
      Passive Radiator
      Yes, 3.5" With LED RGB Light



      Tweeter Specifications

      Voice Coil Diameter
      1 inch
      Type
      Compression Driver with CNC Solid Aluminum Horn
      Diaphragm Material
      PEN
      Magnet Material
      Neodymium
      Crossover
      12dB with Over Power Protection



      Thiele & Small Parameters

      Equivalent Volume Vas
      8.5 L
      Excursion (one way) Xmax
      3 mm
      Free Air Resonance Fs
      75 Hz
      Total Factor Qts
      0.783



      Speaker Measurement

      Overall Diameter
      6.93" / 176.1mm
      Overall Depth
      11.33" / 287.8mm
      Overall Height
      10.7" / 271.7mm

      Products specifications
      Master Pack2
      Unit of MeasurePAIR
      Warranty1 YEAR
      FF Level750
      Products specifications
      Master Pack2
      Unit of MeasurePAIR
      Warranty1 YEAR
      FF Level750
