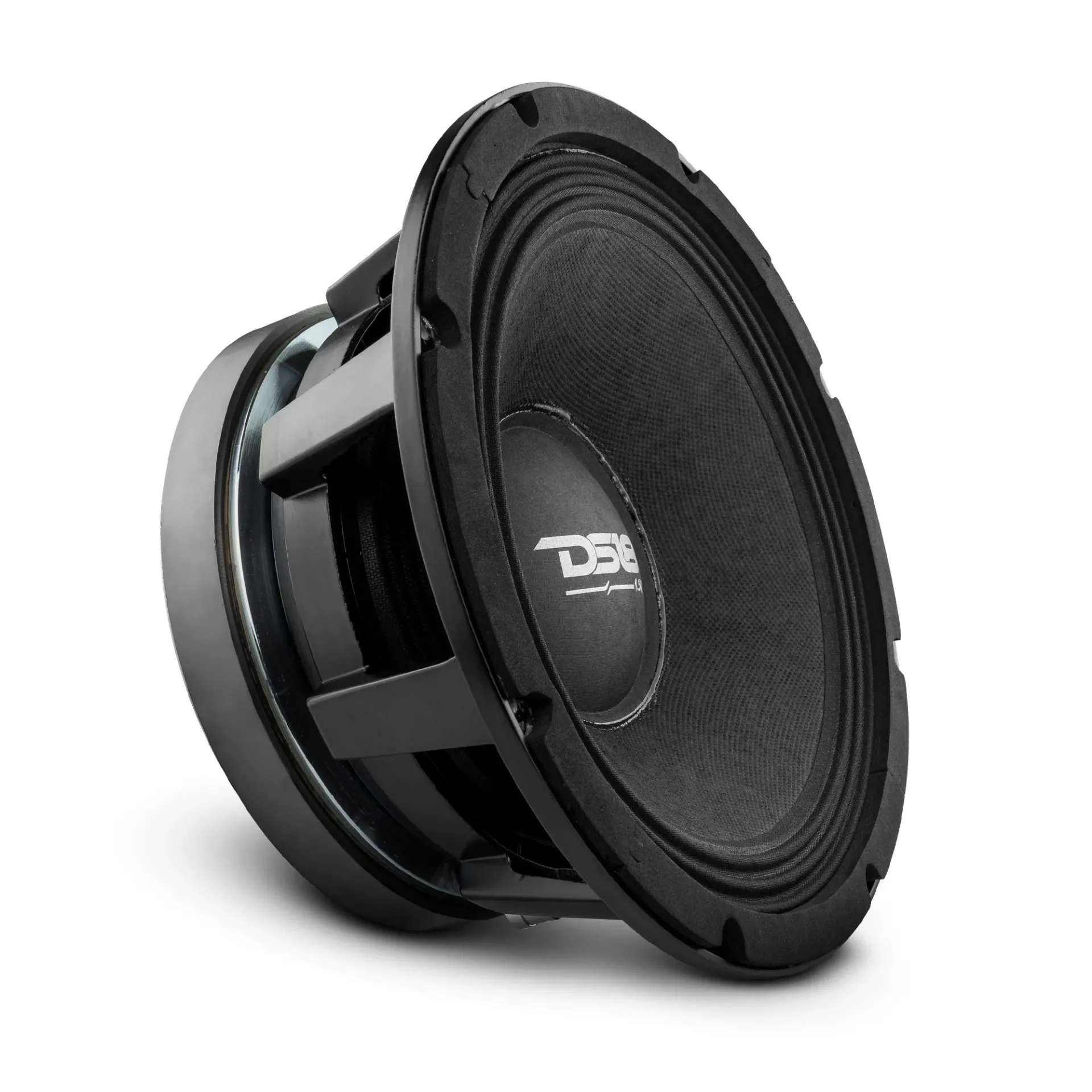

DD-PRO-1.5KP108

SPECS

SKU
PRO-1.5KP10.8
Nominal Diameter
10"
Nominal Impedance
8 ohms
RMS Power Handing
1500W
Maximum Power Handing
3000W
Sensitivity (1w/1m)
94 dB
Frequency Response
80Hz-10kHz
Recommended Hi Pass Crossover
80 Hz

SPECS

Voice Coil Diameter
3"
Voice Coil Former Material
Fiber Glass
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
90 oz

THIELE & SMALL PARAMETERS

Vas
13.162 L
Xmax

Fs
81 Hz
Qms
8.08
Qes
0.473
Qts
0.447
Re
5.6 ohm

MEASUREMENTS

Overall Diameter
10.51" / 267 mm
Front Mount Baffle Cutout
9.6" / 244 mm
Mounting Depth
4.8" / 122 mm
Overall Depth
5.23" / 133 mm
Product Weight

Product Dimensions

M/C Weight

M/C Dimensions

M/C QTY

Sold In
