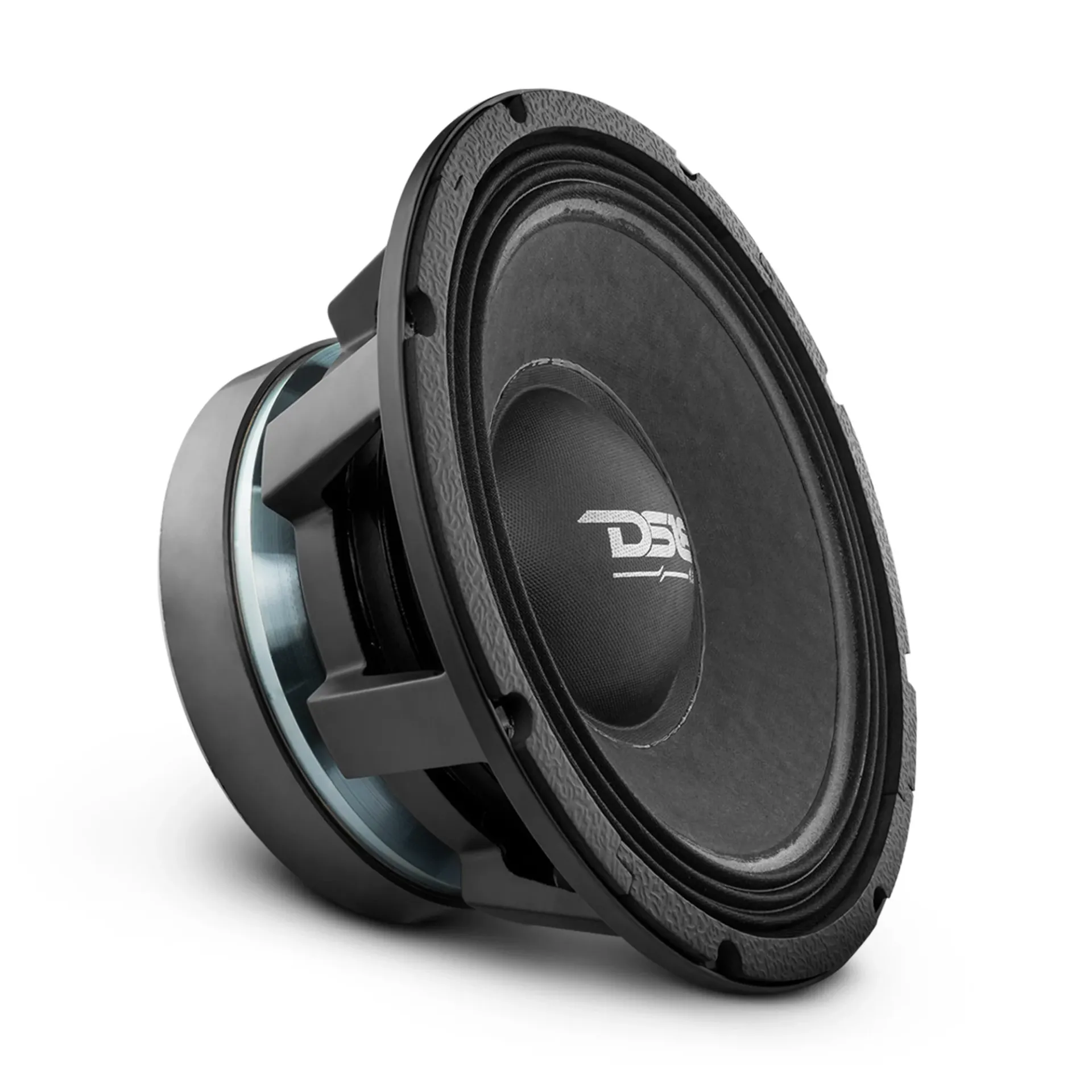

DD-PRO-1.5KP128

SPECS

SKU
PRO-1.5KP12.8
Nominal Diameter
12"
Nominal Impedance
8 ohms
RMS Power Handing
1500W
Maximum Power Handing
3000W
Sensitivity (1w/1m)
95 dB
Frequency Response
60Hz-8kHz
Recommended Hi Pass Crossover
70 Hz

SPECS

Voice Coil Diameter
4"
Voice Coil Former Material
Fiber Glass
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
150 Oz

THIELE & SMALL PARAMETERS

Vas
19.9 L
Xmax

Fs
73.5 Hz
Qms
10.02
Qes
0.383
Qts
0.369
Re
5.6 OHMS

MEASUREMENTS

Overall Diameter
12.36" / 314 mm
Front Mount Baffle Cutout
11.18" / 284 mm
Mounting Depth
5.36" / 152 mm
Overall Depth
6.53" / 166 mm
Product Weight
36 lbs
Product Dimensions
14.75 x 14.75 x 9
M/C Weight
36 lbs
M/C Dimensions
14.75 x 14.75 x 9
M/C QTY
1
Sold In
Piece
