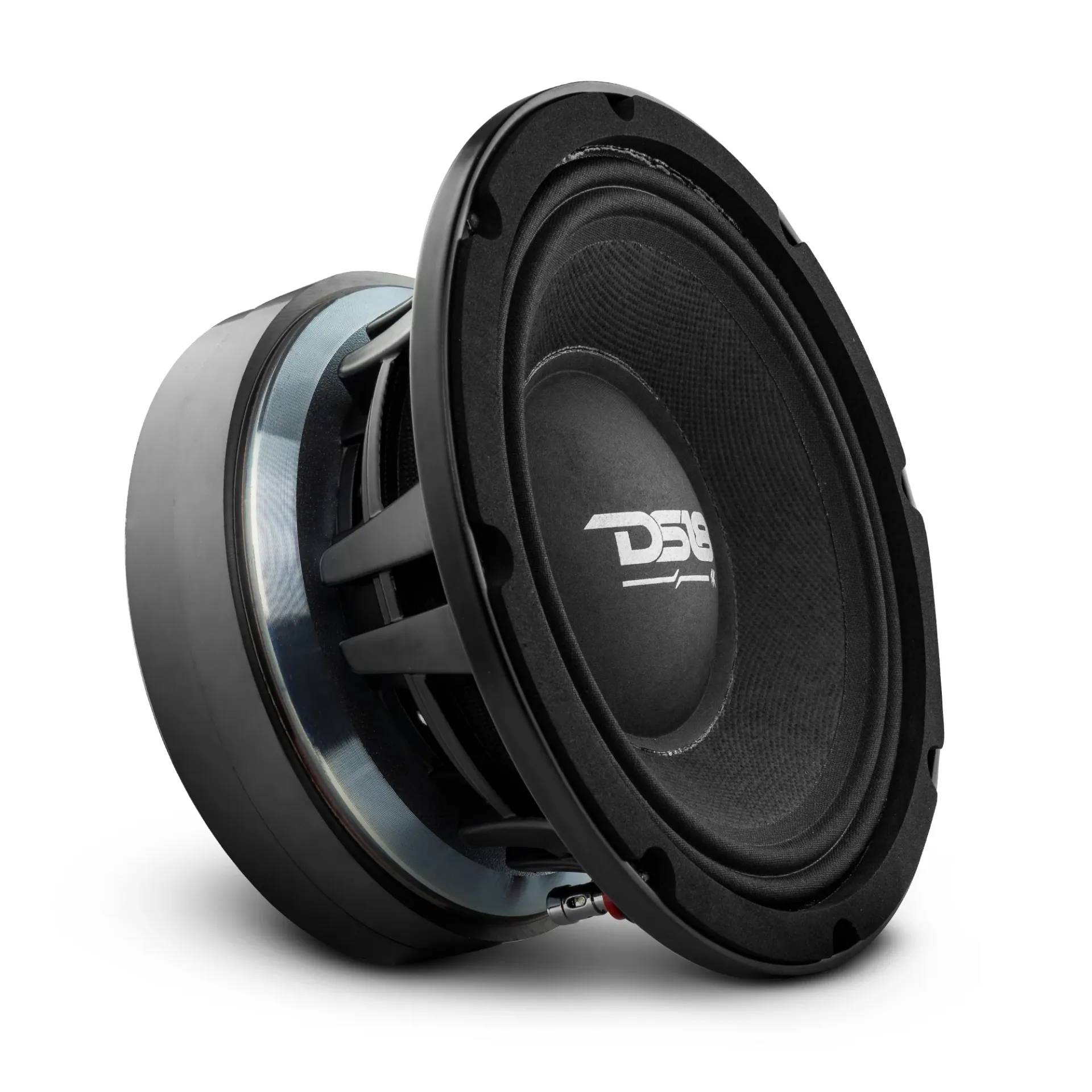

DD-PRO-1KP88

SPECS

SKU
PRO-1KP8.8
Nominal Diameter
8"
Nominal Impedance
8 ohms
RMS Power Handing
1000W
Maximum Power Handing
2000W
Sensitivity (1w/1m)
95dB
Frequency Response
110Hz-15KHz
Recommended Hi Pass Crossover
120 Hz

SPECS

Voice Coil Diameter
3"
Voice Coil Former Material
Fiber Glass
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
90 oz

THIELE & SMALL PARAMETERS

Vas
5.97 L
Xmax

Fs
120Hz
Qms
12.34
Qes
0.378
Qts
0.36
Re
5.6 ohm

MEASUREMENTS

Overall Diameter
8.38" / 213 mm
Front Mount Baffle Cutout
7.28" / 185 mm
Mounting Depth
4.33" / 110 mm
Overall Depth
4.92" / 125 mm
Product Weight

Product Dimensions

M/C Weight

M/C Dimensions

M/C QTY

Sold In
