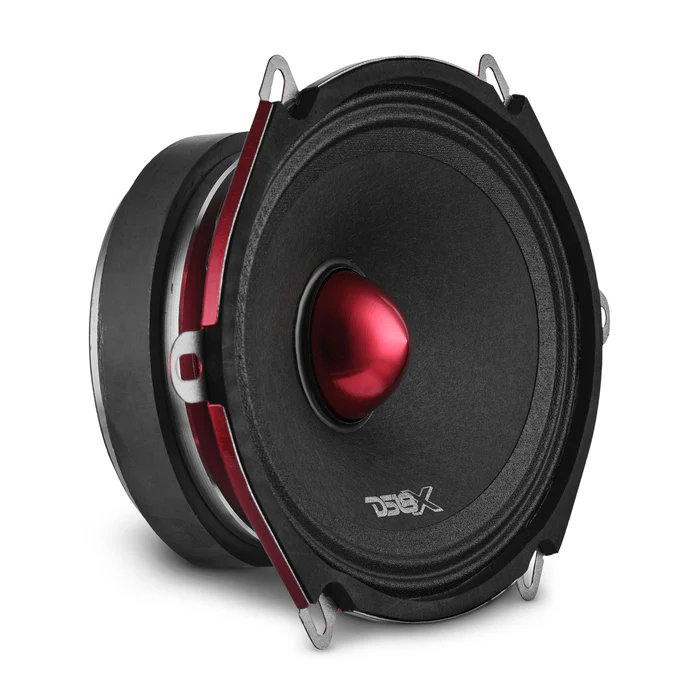

DD-PRO-X574BM

Specifications

Nominal Diameter
5x7" / 127x178mm
Nominal Impedance
4 Ohm
RMS Power Handling
175W
MAX Power Handling
350W
Sensitivity (1w/1m)
94dB
Frequency Response
100Hz-8kHz
Recommended HI Pass Crossover
125Hz
Sold in Pair or Single
Single
Grill Included
No

Motor

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Bullet Material
Aluminum
Bullet Color/Finish
Glossy Red
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
20 Oz
Displacement Volume
0.24L / 0.0084ft3

Thiele & Small Parameters

Equivalent Volume
10L / 0.353ft3
Excursion (one way)
1.4mm
Free Air Resonance
150Hz
Mechanical Factor
10.63
Electrical Factor
1.1
Total Factor
1
Mechanical Mass
9.14g
Mechanical Compliance
0.088mm/N
BL Factor
4.45
Voice Coil Inductance
0.118 mH
Cone Area
203.58Cm2
DC Resistance
3.5 Ohms

Measurement

Overall Diameter
5.6x7.5" / 142x190mm
Overall Depth
2.67" / 67.8mm
Front Mount Baffle Cutout
5x7.1" / 127mmx181mm
Mounting Depth
2.44" / 62mm
Motor Diameter
4.33" / 110mm
