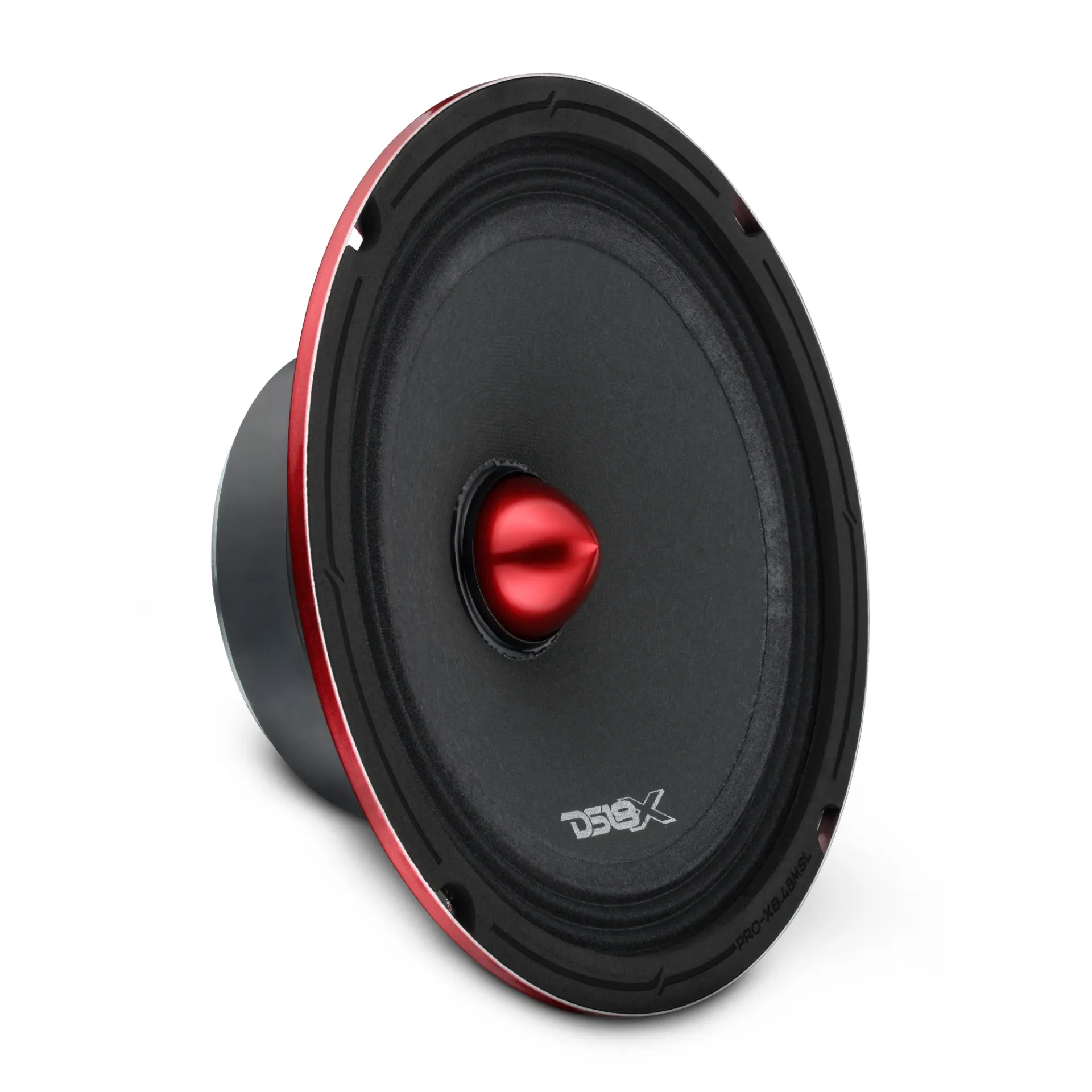

DD-PRO-X84BMSL

Specifications

Nominal Diameter
8" / 203mm
Nominal Impedance
4 ohms
RMS Power Handling
250W
MAX Power Handling
500W
Sensitivity (1w/1m)
95db
Frequency Response
80Hz - 12kHz
Recommended HI Pass Crossover
120Hz
Sold in Pair or Single
Single
Grill Included
No

Motor

Voice Coil Diameter
1.5? / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed
Bullet Material
Aluminum
Bullet Color / Finish
Glossy Red
Surround Material
Cloth
Basket Material
Steel
Basket Finish / Color
Glossy Red
Magnet Material
Ferrite
Magnet Weight
21 Oz

Thiele & Small Parameters

Equivalent Volume
13.2L / 0.468ft3
Excursion (one way)
1.5mm
Free Air Resonance
100Hz
Mechanical Factor
9.769
Electrical Factor
0.733
Total Factor
0.682
Mechanical Mass
11.703g
Mechanical Compliance
0.204mm/N
BL Factor
5.74
Voice Coil Inductance
0.214mH
Cone Area
213.8Cm2
DC Resistance
3.3ohms
Mechanical Mass w/o air

Measurement

Overall Diameter
8.23" / 209mm
Overall Depth
2.96" / 75mm
Front Mount Baffle Cutout
7" / 180mm
Mounting Depth
2.71" / 69mm
Motor Diameter
4.3" / 110mm
