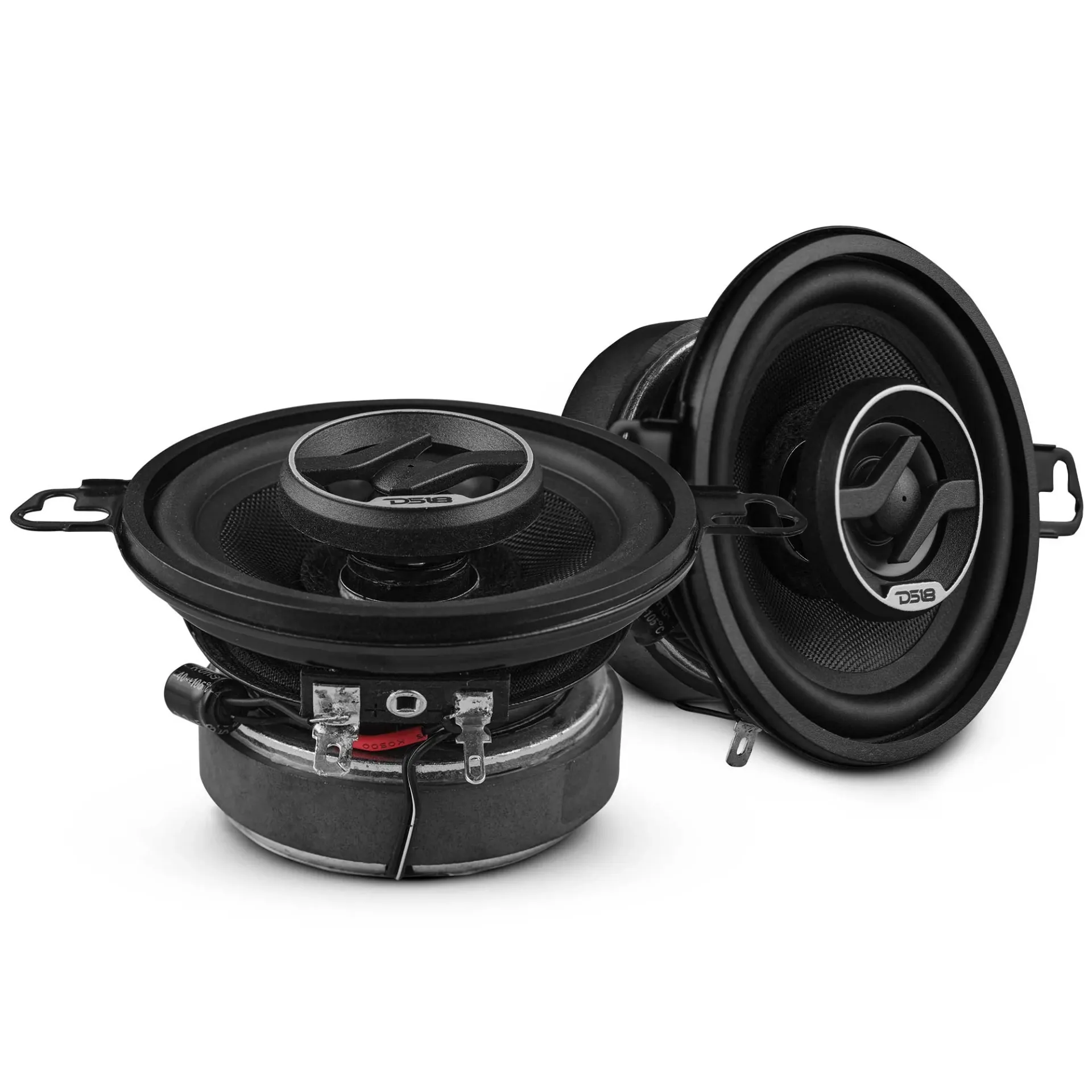

DD-ZXI-3542

Specifications

SKU
ZXI-3542
Nominal Diameter
3.5" / 89mm
Nominal Impedance
4 Ohm
RMS Power Handling
40W
MAX Power Handling
120W
Sensitivity (1w/1m)
87dB
Frequency Response
80Hz-20kHz
Recommended HI Pass Crossover
120Hz
Number of Ways
2-Way
Sold in Pair or Single
Pair
Grill Included
No

Woofer Specifications

Voice Coil Diameter
0.8" / 20.4mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium Ferrite
Magnet Weight
172g

Thiele & Small Parameters

Equivalent Volume Vas
2.4L / 0.0849ft3
Excursion (one way) Xmax
1.2mm
Free Air Resonance Fs
106Hz
Mechanical Factor Qms
4.39
Electrical Factor Qes
