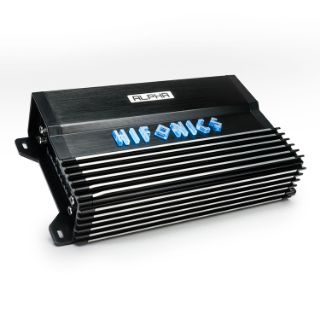

MAX-A12004D

4ch Amplifier 4 x 150 @ 4 Ohms, 4 x 300 @ 2 Ohms, 2 x 600 Watts @ 4 Ohms Bridged

SKU: MAX-A12004D

Brand part number: A12004D

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Type	Amplifier
Brand	Hifonics
Series	ALPHA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Full Range Super D-Class®
Amp Total Channels	4
Amp Max Power (watts)	1200
Amp Power @ 2 Ohms (ch x watts)	4 x 300
Amp Power @ 4 Ohms (ch x watts)	4 x 150
Amp Mono Bridged @ 4 Ohms (ch x watts)	2 x 600
Amp Crossover	4CH/2CH: DUPE/Full/HPF, Bandbass: LPF/Full/HPF, Input Mode, Switched
Amp Variable High Pass Crossover 12dB per Octave	20Hz-4KHz, DUPE Mode: 10Hz-500Hz
Amp Variable Low Pass Crossover 12dB per Octave	DUPE Mode: 50Hz-4kHz
Amp Tone Control / Parametric EQ	Bass EQ
Amp Bass Boost	0-12dB @ 45Hz
Amp Variable Voltage	0.2-10V
Amp Signal to Noise	> 85dB
Amp Frequency Response	10Hz-45kHz
Amp Total Harmonic Distortion (THD)	< 0.05%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	18 AWG
Amp Fusing	Use Extermal Fuse
Additional Details	TURN ON CIRCUIT: Switched - Remote Turn-On / Signal Sense On, HEATSINK SIZE: Length 9.25in x Depth 9.25in x Height 2.37in

Type	Amplifier
Brand	Hifonics
Series	ALPHA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Full Range Super D-Class®
Amp Total Channels	4
Amp Max Power (watts)	1200
Amp Power @ 2 Ohms (ch x watts)	4 x 300
Amp Power @ 4 Ohms (ch x watts)	4 x 150
Amp Mono Bridged @ 4 Ohms (ch x watts)	2 x 600
Amp Crossover	4CH/2CH: DUPE/Full/HPF, Bandbass: LPF/Full/HPF, Input Mode, Switched
Amp Variable High Pass Crossover 12dB per Octave	20Hz-4KHz, DUPE Mode: 10Hz-500Hz
Amp Variable Low Pass Crossover 12dB per Octave	DUPE Mode: 50Hz-4kHz
Amp Tone Control / Parametric EQ	Bass EQ
Amp Bass Boost	0-12dB @ 45Hz
Amp Variable Voltage	0.2-10V
Amp Signal to Noise	> 85dB
Amp Frequency Response	10Hz-45kHz
Amp Total Harmonic Distortion (THD)	< 0.05%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	18 AWG
Amp Fusing	Use Extermal Fuse
Additional Details	TURN ON CIRCUIT: Switched - Remote Turn-On / Signal Sense On, HEATSINK SIZE: Length 9.25in x Depth 9.25in x Height 2.37in
