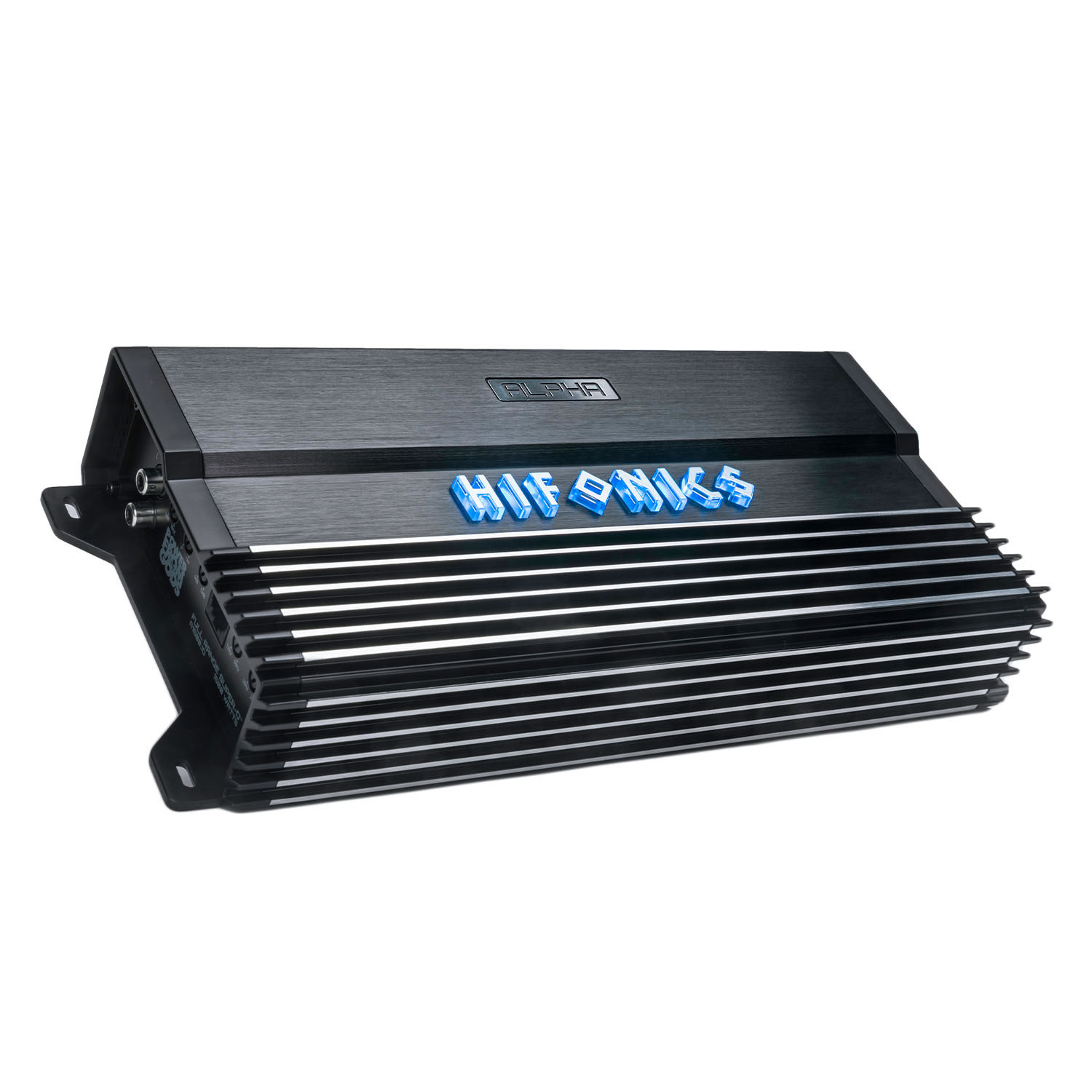

MAX-A15001D

Mono Amplifier 1 x 400 @ 4 Ohms, 1 x 750 @ 2 Ohms, 1 x 1500 Watts @ 1 Ohm

SKU: MAX-A15001D

Brand part number: A15001D

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Type	Amplifier
Brand	Hifonics
Series	ALPHA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Super D-Class®
Amp Total Channels	1
Amp Max Power (watts)	1500
Amp Power @ 1 Ohm (ch x watts)	1 x 1500
Amp Power @ 2 Ohms (ch x watts)	1 x 750
Amp Power @ 4 Ohms (ch x watts)	1 x 400
Amp Crossover	Electronic
Amp Variable Low Pass Crossover 12dB per Octave	30Hz-250Hz
Amp Tone Control / Parametric EQ	Bass EQ
Amp Bass Boost	0-12dB @ 45Hz
Amp Subsonic Filter	10Hz-50Hz
Amp Phase Shift	Variable 0-180 Degrees
Amp Variable Voltage	0.2-6V
Amp Signal to Noise	> 90dB
Amp Frequency Response	10Hz-250Hz
Amp Total Harmonic Distortion (THD)	< 1%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	14 AWG
Amp Fusing	Use Extermal Fuse
Additional Details	HEATSINK SIZE: Length 12.0in x Depth 5.75in x Height 2.37in

Type	Amplifier
Brand	Hifonics
Series	ALPHA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Super D-Class®
Amp Total Channels	1
Amp Max Power (watts)	1500
Amp Power @ 1 Ohm (ch x watts)	1 x 1500
Amp Power @ 2 Ohms (ch x watts)	1 x 750
Amp Power @ 4 Ohms (ch x watts)	1 x 400
Amp Crossover	Electronic
Amp Variable Low Pass Crossover 12dB per Octave	30Hz-250Hz
Amp Tone Control / Parametric EQ	Bass EQ
Amp Bass Boost	0-12dB @ 45Hz
Amp Subsonic Filter	10Hz-50Hz
Amp Phase Shift	Variable 0-180 Degrees
Amp Variable Voltage	0.2-6V
Amp Signal to Noise	> 90dB
Amp Frequency Response	10Hz-250Hz
Amp Total Harmonic Distortion (THD)	< 1%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	14 AWG
Amp Fusing	Use Extermal Fuse
Additional Details	HEATSINK SIZE: Length 12.0in x Depth 5.75in x Height 2.37in
