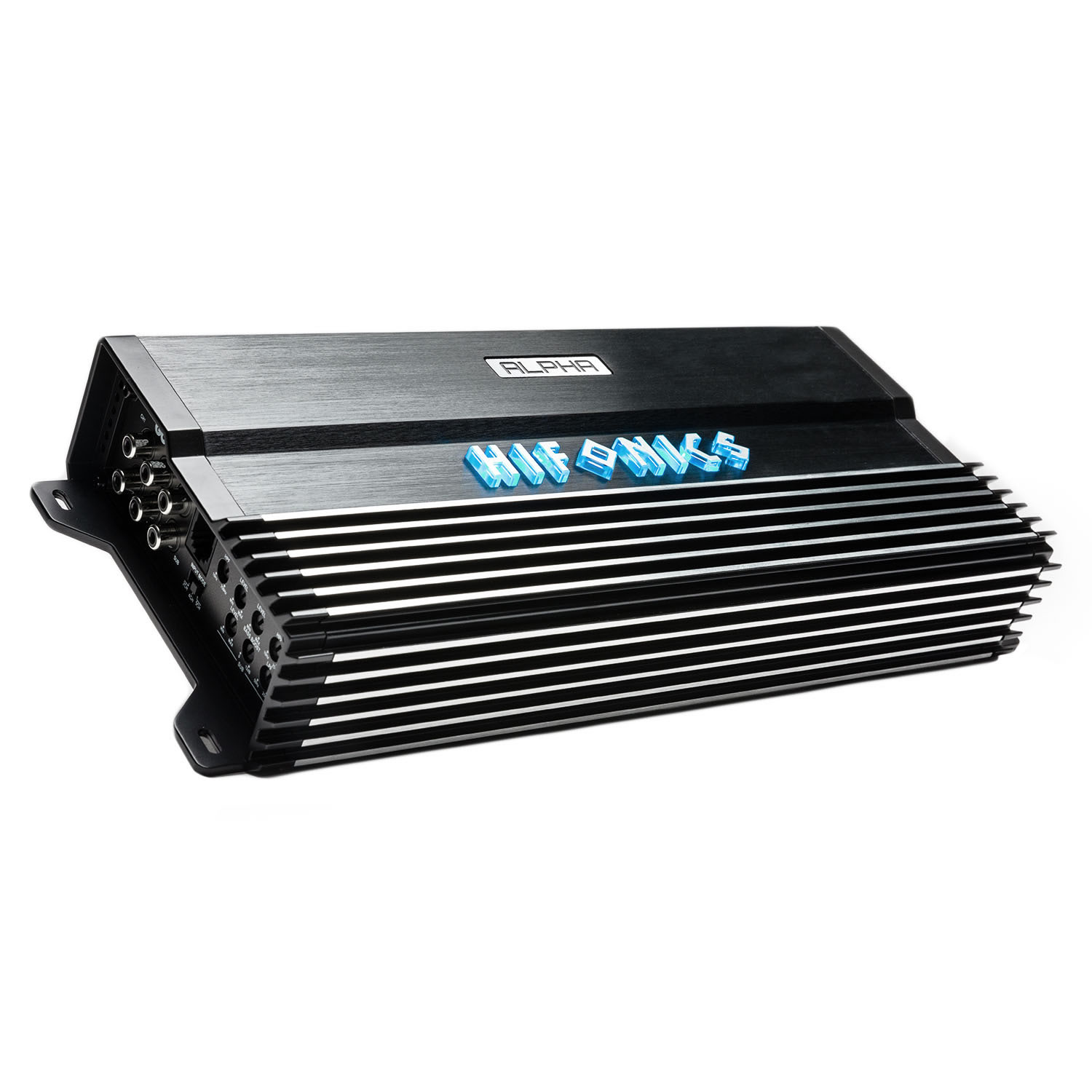

MAX-A25005D

5ch Amplifier 4 x 60 + 1 x 250 @ 4 Ohms, 4 x 100 + 1 x 450 @ 2 Ohms, 1 x 750 Watts @ 1 Ohm Sub Only

SKU: MAX-A25005D

Brand part number: A25005D

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Type	Amplifier
Brand	Hifonics
Series	ALPHA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Full Range Super D-Class®, Super D-Class®
Amp Total Channels	5
Amp Max Power (watts)	2500
Amp Power @ 1 Ohm (ch x watts)	1 x 750 (CH5 only)
Amp Power @ 2 Ohms (ch x watts)	4 x 100 + 1 x 450
Amp Power @ 4 Ohms (ch x watts)	4 x 60 + 1 x 250
Amp Crossover	Electronic
Amp Variable High Pass Crossover 12dB per Octave	CH1 & CH2: 10Hz-250Hz, CH3 & CH4: 10Hz-250Hz
Amp Variable Low Pass Crossover 12dB per Octave	CH5: 50Hz-250Hz
Amp Tone Control / Parametric EQ	Bass EQ
Amp Bass Boost	0-12dB @ 45Hz
Amp Variable Voltage	0.2-10V
Amp Signal to Noise	> 85dB
Amp Frequency Response	CH1-4: 10Hz-250Hz, CH5: 50Hz-250kHz
Amp Total Harmonic Distortion (THD)	< 0.05%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	CH1-4: 18 AWG, CH5: 16 AWG
Amp Fusing	Use Extermal Fuse
Additional Details	TURN ON CIRCUIT (CH1-4 only): Switched - Remote Turn-On / Signal Sense On, HEATSINK SIZE: Length 13.0in x Depth 9.25in x Height 2.37in

Type	Amplifier
Brand	Hifonics
Series	ALPHA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Full Range Super D-Class®, Super D-Class®
Amp Total Channels	5
Amp Max Power (watts)	2500
Amp Power @ 1 Ohm (ch x watts)	1 x 750 (CH5 only)
Amp Power @ 2 Ohms (ch x watts)	4 x 100 + 1 x 450
Amp Power @ 4 Ohms (ch x watts)	4 x 60 + 1 x 250
Amp Crossover	Electronic
Amp Variable High Pass Crossover 12dB per Octave	CH1 & CH2: 10Hz-250Hz, CH3 & CH4: 10Hz-250Hz
Amp Variable Low Pass Crossover 12dB per Octave	CH5: 50Hz-250Hz
Amp Tone Control / Parametric EQ	Bass EQ
Amp Bass Boost	0-12dB @ 45Hz
Amp Variable Voltage	0.2-10V
Amp Signal to Noise	> 85dB
Amp Frequency Response	CH1-4: 10Hz-250Hz, CH5: 50Hz-250kHz
Amp Total Harmonic Distortion (THD)	< 0.05%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	CH1-4: 18 AWG, CH5: 16 AWG
Amp Fusing	Use Extermal Fuse
Additional Details	TURN ON CIRCUIT (CH1-4 only): Switched - Remote Turn-On / Signal Sense On, HEATSINK SIZE: Length 13.0in x Depth 9.25in x Height 2.37in
