MAX-MBQJK-STG2AH-1

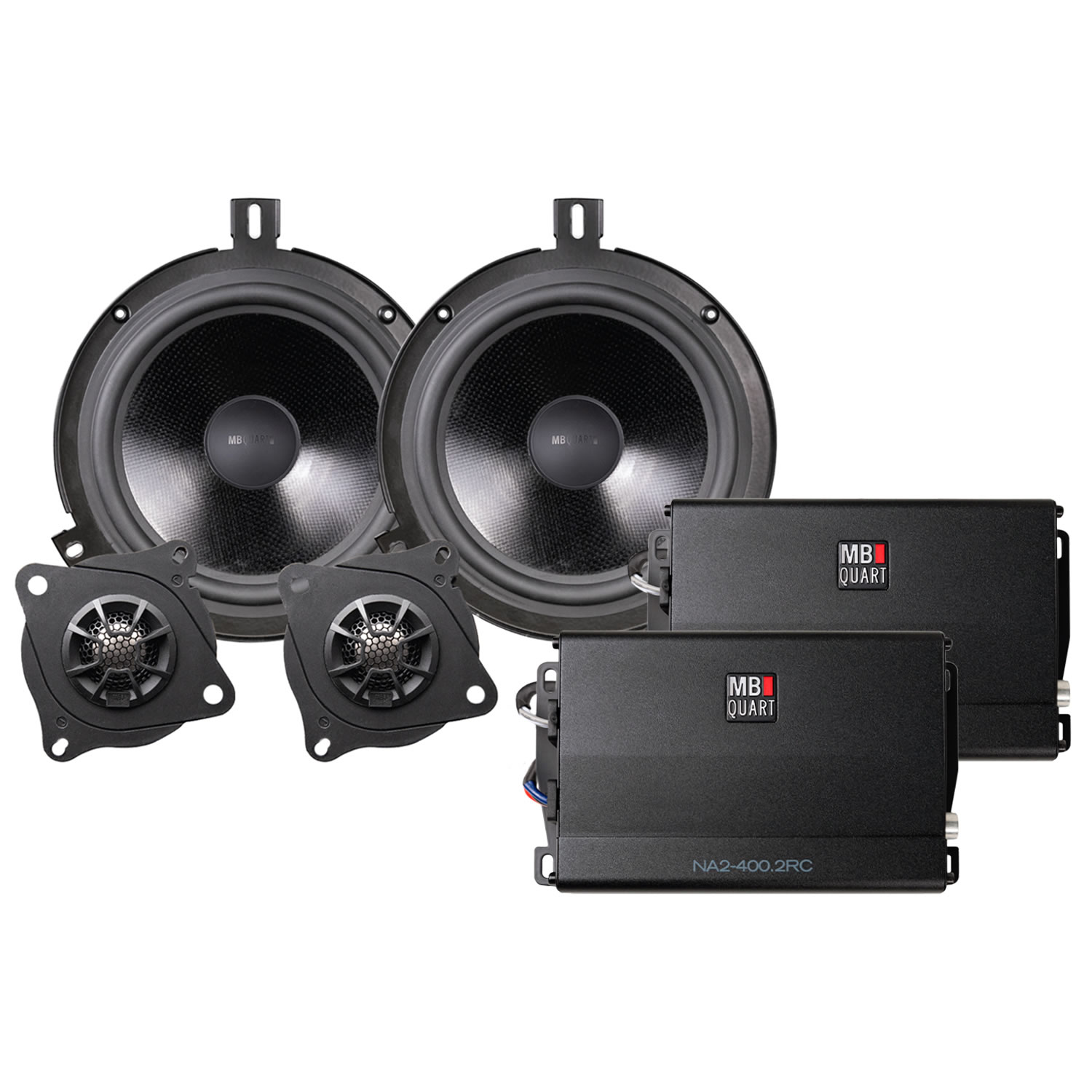

Jeep Wrangler (JK) 2007 - 2018 Tuned Audio Package: Two Speaker 800 Watt STAGE 2 OEM Audio System Upgrade (Requires Aftermarket Source Unit and Rear Speakers/Soundbar).

SKU: MAX-MBQJK-STG2AH-1

Brand part number: MBQJK-STG2AH-1

Brand: MB Quart

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Front Speakers	Two 6.5 inch convertible speakers with 1 inch titanium dome tweeters. Shallow light weight frame design for maximum airspace. Lightweight yet durable fiber cone. Y35 iron ferrite magnet. WideSphere Tweeter Technology for exceptional reproduction of high frequences. 12dB external crossover network.
Front Speakers Mounting	Tweeter Mount: Mounting plates for front on-dash or in-dash factory tweeter locations. Midbass Speakers: Drop in direct replacement for factory 6.5 inch speakers.
Rear Speakers	Requires an additional set of JS1-216JK or a MBQJK-28CRGB / MBQJK-28C Soundbar (Sold Separately).
Subwoofer	The STAGE 2 audio system is prewired and has additional space on the amplifier brack to easily add a Tail Gate Mounted Subwoofer System MBQJL-302 (Sold Separately).
Full Range Amplifier	Two 400 Watt Full Range, Two Channel Class D Amplifiers: Big power, small chassis design with low current draw.
Full Range Amplifier Mounting	Powder coated mounting plates for either the 4 or 2 seater Wranglers.

Compatible Vehicle Fitment	Jeep® Wrangler (JK) 2007-2018 All Models and Variants
Source Unit Features	Requires aftermarket source unit.
Speaker Features	Two 6.5 inch convertible speakers with 1 inch titanium dome tweeters. Shallow light weight frame design for maximum airspace. Lightweight yet durable fiber cone. Y35 iron ferrite magnet. WideSphere Tweeter Technology for exceptional reproduction of high frequences. 12dB external crossover network. Crossover: 12db midrange / 6db tweeter, Frequency Response: 50Hz to 25kHz, Sensitivity: 87.7db, 150W Maxx / 75W RMS.
Amplifier Features	400 watt high efficiency Class-D compact NA2 amplifiers with on-board equalization.
Mount / Harness	Simple “no mistakes” plug and play OEM style installation.

Overview
Specifications

Front Speakers	Two 6.5 inch convertible speakers with 1 inch titanium dome tweeters. Shallow light weight frame design for maximum airspace. Lightweight yet durable fiber cone. Y35 iron ferrite magnet. WideSphere Tweeter Technology for exceptional reproduction of high frequences. 12dB external crossover network.
Front Speakers Mounting	Tweeter Mount: Mounting plates for front on-dash or in-dash factory tweeter locations. Midbass Speakers: Drop in direct replacement for factory 6.5 inch speakers.
Rear Speakers	Requires an additional set of JS1-216JK or a MBQJK-28CRGB / MBQJK-28C Soundbar (Sold Separately).
Subwoofer	The STAGE 2 audio system is prewired and has additional space on the amplifier brack to easily add a Tail Gate Mounted Subwoofer System MBQJL-302 (Sold Separately).
Full Range Amplifier	Two 400 Watt Full Range, Two Channel Class D Amplifiers: Big power, small chassis design with low current draw.
Full Range Amplifier Mounting	Powder coated mounting plates for either the 4 or 2 seater Wranglers.

Compatible Vehicle Fitment	Jeep® Wrangler (JK) 2007-2018 All Models and Variants
Source Unit Features	Requires aftermarket source unit.
Speaker Features	Two 6.5 inch convertible speakers with 1 inch titanium dome tweeters. Shallow light weight frame design for maximum airspace. Lightweight yet durable fiber cone. Y35 iron ferrite magnet. WideSphere Tweeter Technology for exceptional reproduction of high frequences. 12dB external crossover network. Crossover: 12db midrange / 6db tweeter, Frequency Response: 50Hz to 25kHz, Sensitivity: 87.7db, 150W Maxx / 75W RMS.
Amplifier Features	400 watt high efficiency Class-D compact NA2 amplifiers with on-board equalization.
Mount / Harness	Simple “no mistakes” plug and play OEM style installation.

Products specifications

Unit of Measure	EACH
Warranty	1 YEAR
Master Pack	1
FF Level	1000

Products specifications

Unit of Measure	EACH
Warranty	1 YEAR
Master Pack	1
FF Level	1000
