MAX-MBQX-STG5-1

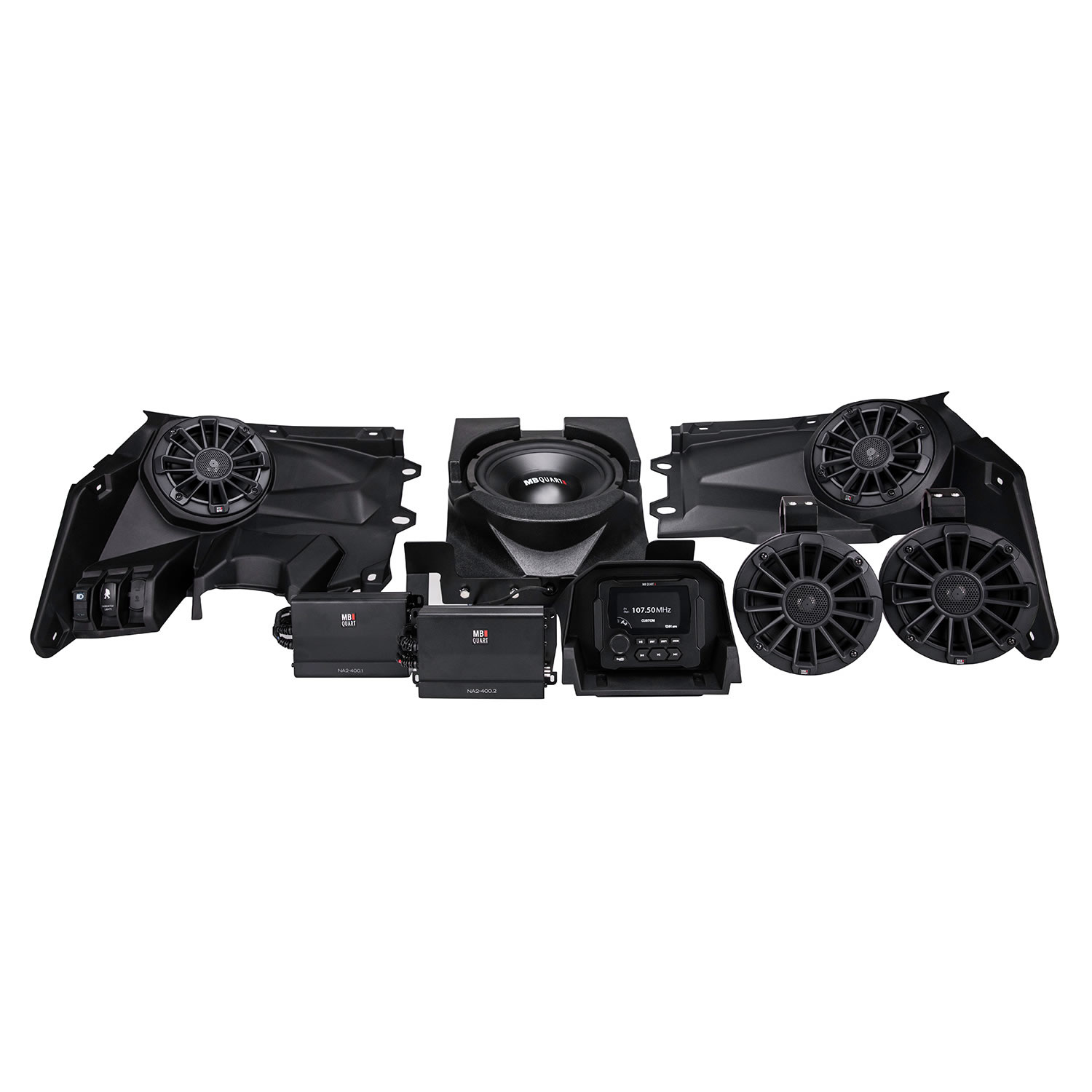

Five Speaker 800 Watt STAGE 5 Audio System for Can-Am includes AM/FM, BT LED Source Unit, 4 speakers, under seat 10 inch subwoofer, and all necessary mounting panels and harnessing are included.

SKU: MAX-MBQX-STG5-1

Brand part number: MBQX-STG5-1

Brand: MB Quart

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Source Unit	The AM/FM, Bluetooth source unit (GMR-LED) is mounted in a dash accessory that will not require the radio to be removed to access the fuse panel or diagnostic port. MBQX-RAD-1: LED Gauge Mount Radio with AM/FM/BT and Apple Control Maverick X3 Radio Dash Mounting Panel.
Front Speakers	The 6.5 components are the NP1-116 two way speakers. The left speaker panel is Smart-Lok™ Diff Model capable and retains all factory mounts for ECU's. No relocation brackets or customization required. MBQX-POD-1: 6.5 Inch 2 Way Composite Coaxial Speakers, right and left speaker dash panels for 6.5 inch speakers, easy installation, 400 Watt Two Channel Class D, Compact Powersports Amplifier.
Rear Speakers	The 6.5 rear pod speakers are the NPT1-116 two way speakers, only available for the Can Am X3. NPT1-116B: (2) 6.5 inch 2 way Composite Coaxial Roll Cage Mount Speakers with Swivel Mount Brackets NPT1-116BB.
Subwoofer	Dual Voice Coil 10 Inch Subwoofer in a High Impact HDPE Composite Under Seat Enclosure. MBQX-SUB-2: 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat subwoofer enclosure, 400 watt Class D, Compact Powersports Subwoofer Amplifier.
Full Range Amplifier	NA2-400.2 High Efficiency, Full Range Class D 400 Watt Amplifier with mounting plate.
Subwoofer Amplifier	NA2-400.1 High Efficiency, Class D 400 Watt Mono subwoofer Amplifier.
Harnessing	Full system harness capable of accommodating source unit, 3 amplifiers, which power 4 speakers, and 2 subwoofers.
Accessories	MBQX-ACC-1: Maverick X3 Radio and Triple Amplifier Harness, Maverick X3 Amplifier Mounting Brackets.

Compatible Vehicle Fitment	Can-Am Maverick X3 2017 and 2025
Marine Grade Protection / IPX Rating	MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the CanAm X3. It is essential that every component installed in a X3 be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated.
Source Unit Features	QUICK PAIR immediately connects to the last device that was connected and you'll have full Apple Control with Bluetooth capabilities. This unit also displays Album Artwork, if present, in your file. High voltage output guarantees maximum volume when running external amplifiers.
Speaker Features	The front speakers are meticulously engineered to fit in the X3 dash. They include a 1" Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly earns an IPX68 rating which makes it as indestructible as the X3. The rear (Pod) speakers are the exact speaker as the front but mounted in a pair of versatile shallow mount enclosure with the included swivel mounts for perfect alignment to the listener regardless of the roll cage angle.
Amplifier Features	The Can Am system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume for all 4 speakers (front and rear pods).
Subwoofer Features	400 Watt SUB STAGE Specific 10 inch Underseat Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat Subwoofer Enclosure, and 400 Watt Class D.
Mount / Harness	Plug and Play Harness. Waterproof Connectors with premeasured wires. No guess work, no installation mistakes.

Overview
Specifications

Source Unit	The AM/FM, Bluetooth source unit (GMR-LED) is mounted in a dash accessory that will not require the radio to be removed to access the fuse panel or diagnostic port. MBQX-RAD-1: LED Gauge Mount Radio with AM/FM/BT and Apple Control Maverick X3 Radio Dash Mounting Panel.
Front Speakers	The 6.5 components are the NP1-116 two way speakers. The left speaker panel is Smart-Lok™ Diff Model capable and retains all factory mounts for ECU's. No relocation brackets or customization required. MBQX-POD-1: 6.5 Inch 2 Way Composite Coaxial Speakers, right and left speaker dash panels for 6.5 inch speakers, easy installation, 400 Watt Two Channel Class D, Compact Powersports Amplifier.
Rear Speakers	The 6.5 rear pod speakers are the NPT1-116 two way speakers, only available for the Can Am X3. NPT1-116B: (2) 6.5 inch 2 way Composite Coaxial Roll Cage Mount Speakers with Swivel Mount Brackets NPT1-116BB.
Subwoofer	Dual Voice Coil 10 Inch Subwoofer in a High Impact HDPE Composite Under Seat Enclosure. MBQX-SUB-2: 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat subwoofer enclosure, 400 watt Class D, Compact Powersports Subwoofer Amplifier.
Full Range Amplifier	NA2-400.2 High Efficiency, Full Range Class D 400 Watt Amplifier with mounting plate.
Subwoofer Amplifier	NA2-400.1 High Efficiency, Class D 400 Watt Mono subwoofer Amplifier.
Harnessing	Full system harness capable of accommodating source unit, 3 amplifiers, which power 4 speakers, and 2 subwoofers.
Accessories	MBQX-ACC-1: Maverick X3 Radio and Triple Amplifier Harness, Maverick X3 Amplifier Mounting Brackets.

Compatible Vehicle Fitment	Can-Am Maverick X3 2017 and 2025
Marine Grade Protection / IPX Rating	MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the CanAm X3. It is essential that every component installed in a X3 be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated.
Source Unit Features	QUICK PAIR immediately connects to the last device that was connected and you'll have full Apple Control with Bluetooth capabilities. This unit also displays Album Artwork, if present, in your file. High voltage output guarantees maximum volume when running external amplifiers.
Speaker Features	The front speakers are meticulously engineered to fit in the X3 dash. They include a 1" Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly earns an IPX68 rating which makes it as indestructible as the X3. The rear (Pod) speakers are the exact speaker as the front but mounted in a pair of versatile shallow mount enclosure with the included swivel mounts for perfect alignment to the listener regardless of the roll cage angle.
Amplifier Features	The Can Am system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume for all 4 speakers (front and rear pods).
Subwoofer Features	400 Watt SUB STAGE Specific 10 inch Underseat Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat Subwoofer Enclosure, and 400 Watt Class D.
Mount / Harness	Plug and Play Harness. Waterproof Connectors with premeasured wires. No guess work, no installation mistakes.

Products specifications

Unit of Measure	EACH
Warranty	1 YEAR
Master Pack	1
FF Level	1000

Products specifications

Unit of Measure	EACH
Warranty	1 YEAR
Master Pack	1
FF Level	1000
