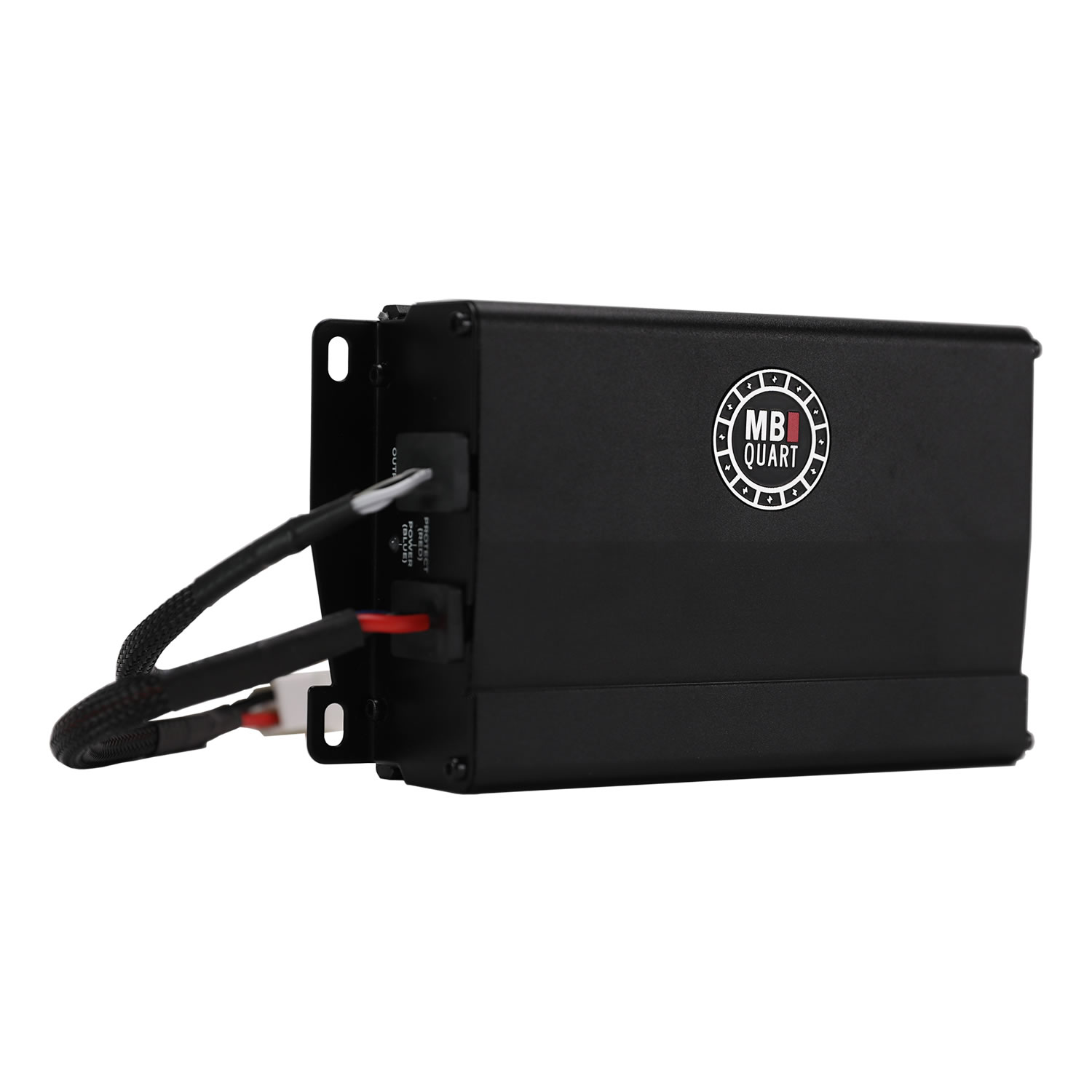

MAX-NA4-4002

2 Channel Compact Powersports Amplifier - 2 x 200W @ 2 Ohms, 2 x 100W @ 4 Ohms

SKU: MAX-NA4-4002

Brand part number: NA4-4002

Brand: MB Quart

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Type	Amplifier
Brand	MB Quart
Series	Nautic
Category	Marine, Powersports
Condition	New
Color	Black
Model Replaced	NA2-400.2
Warranty	1 Year
IPX Rating	IP67
Compatible Vehicles	Universal
Amp Class	Full Range Class D
Amp Total Channels	2
Amp Max Power (watts)	400
Amp Power @ 2 Ohms (ch x watts)	2 x 200
Amp Power @ 4 Ohms (ch x watts)	2 x 100
Amp Crossover	Electronic
Amp Variable High Pass Crossover 12dB per Octave	15Hz-300Hz
Amp Variable Low Pass Crossover 12dB per Octave	50Hz-300Hz
Amp Variable Voltage	0.2-9V
Amp Signal to Noise	> 105dB
Amp Frequency Response	6Hz-29kHz
Amp Total Harmonic Distortion (THD)	1.0%
Amp Speaker Level Audio Inputs	RCA
Amp Power Terminal 12v/GND	12 AWG Quick Connector
Amp Speaker Terminal Wire Gauge	Molex Plug Connector
Amp Fusing	30A x 1

Type	Amplifier
Brand	MB Quart
Series	Nautic
Category	Marine, Powersports
Condition	New
Color	Black
Model Replaced	NA2-400.2
Warranty	1 Year
IPX Rating	IP67
Compatible Vehicles	Universal
Amp Class	Full Range Class D
Amp Total Channels	2
Amp Max Power (watts)	400
Amp Power @ 2 Ohms (ch x watts)	2 x 200
Amp Power @ 4 Ohms (ch x watts)	2 x 100
Amp Crossover	Electronic
Amp Variable High Pass Crossover 12dB per Octave	15Hz-300Hz
Amp Variable Low Pass Crossover 12dB per Octave	50Hz-300Hz
Amp Variable Voltage	0.2-9V
Amp Signal to Noise	> 105dB
Amp Frequency Response	6Hz-29kHz
Amp Total Harmonic Distortion (THD)	1.0%
Amp Speaker Level Audio Inputs	RCA
Amp Power Terminal 12v/GND	12 AWG Quick Connector
Amp Speaker Terminal Wire Gauge	Molex Plug Connector
Amp Fusing	30A x 1
