MAX-PA1-30001

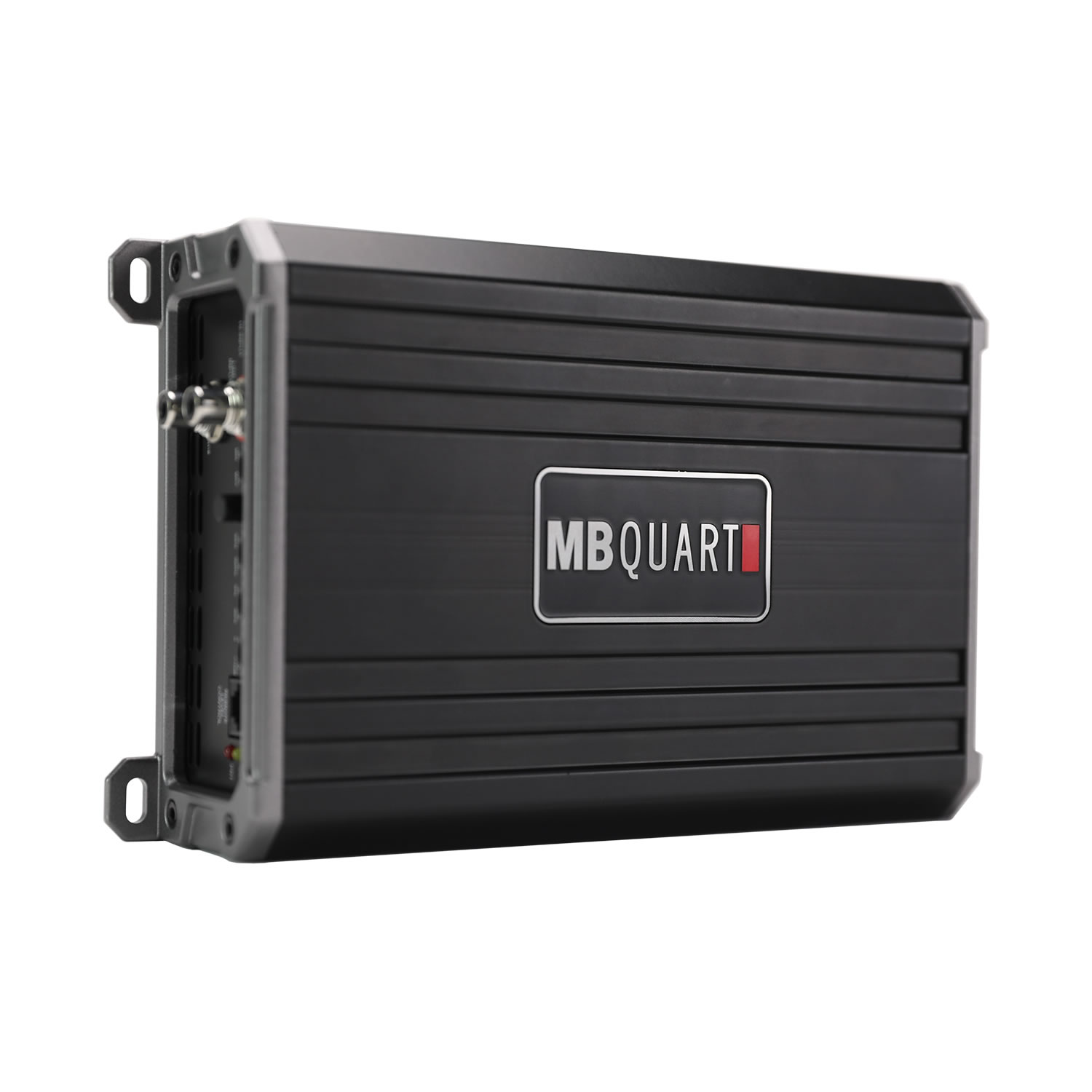

Mono Block Amplifier - 1 x 3000W @ 1 Ohm, 1 x 1500W @ 2 Ohms, 1 x 1000W @ 4 Ohms

SKU: MAX-PA1-30001

Brand part number: PA1-30001

Brand: MB Quart

4/15/2026 Eta:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Type	Amplifier
Brand	MB Quart
Series	Premium
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Full Range Class D
Amp Total Channels	Mono
Amp Max Power (watts)	3000
Amp Power @ 1 Ohm (ch x watts)	1 x 3000
Amp Power @ 2 Ohms (ch x watts)	1 x 1500
Amp Power @ 4 Ohms (ch x watts)	1 x 1000
Amp Crossover	Variable Electronic 12dB Per Octave, Switched LPF On/Off
Amp Variable Low Pass Crossover 12dB per Octave	50Hz-500Hz
Amp Tone Control / Parametric EQ	Built-in Bass Control
Amp Bass Boost	0-12dB
Amp Subsonic Filter	5Hz-40Hz
Amp Variable Voltage	High: 2.9-40V, Low: 0.3-5.5V
Amp Signal to Noise	> 102dB
Amp Frequency Response	10Hz-30kHz
Amp Total Harmonic Distortion (THD)	1.0%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	8 AWG
Amp Fusing	External 250A
