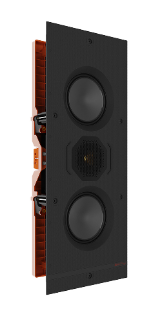

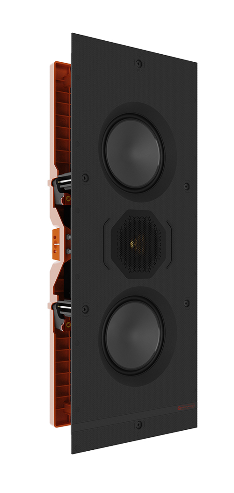

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring two C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 527 x 198mm and revolutionary Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
- 1" gold-dome C-CAM® (Ceramic-Coated Aluminum/Magnesium) tweeter for detailed sound
- UD I (Uniform Dispersion) waveguide provides wide, even high-frequency dispersion
- two 5" C-CAM woofers
- unobtrusive frame and low-profile grille for discreet installation
- recommended amplifier power: 30-110 watts
- frequency response: 40-30,000 Hz
- sensitivity: 87 dB
- impedance: 6 ohms
- patented Tri-Grip® II dog leg mounting system ensures maximum surface seal for better bass and midrange clarity
- patented magnetic Quik-Link speaker cable connector can be pre-installed for easy final connection
- paintable removable magnetic grille
- works with WM-B pre-construction brackets (sold separately)
- cutout: 20-3/4" x 7-13/16"
- overall dimensions: 9-1/8"W x 22-1/16"H
- mounting depth: 3-7/16"
- weight: 7.5 lbs.
