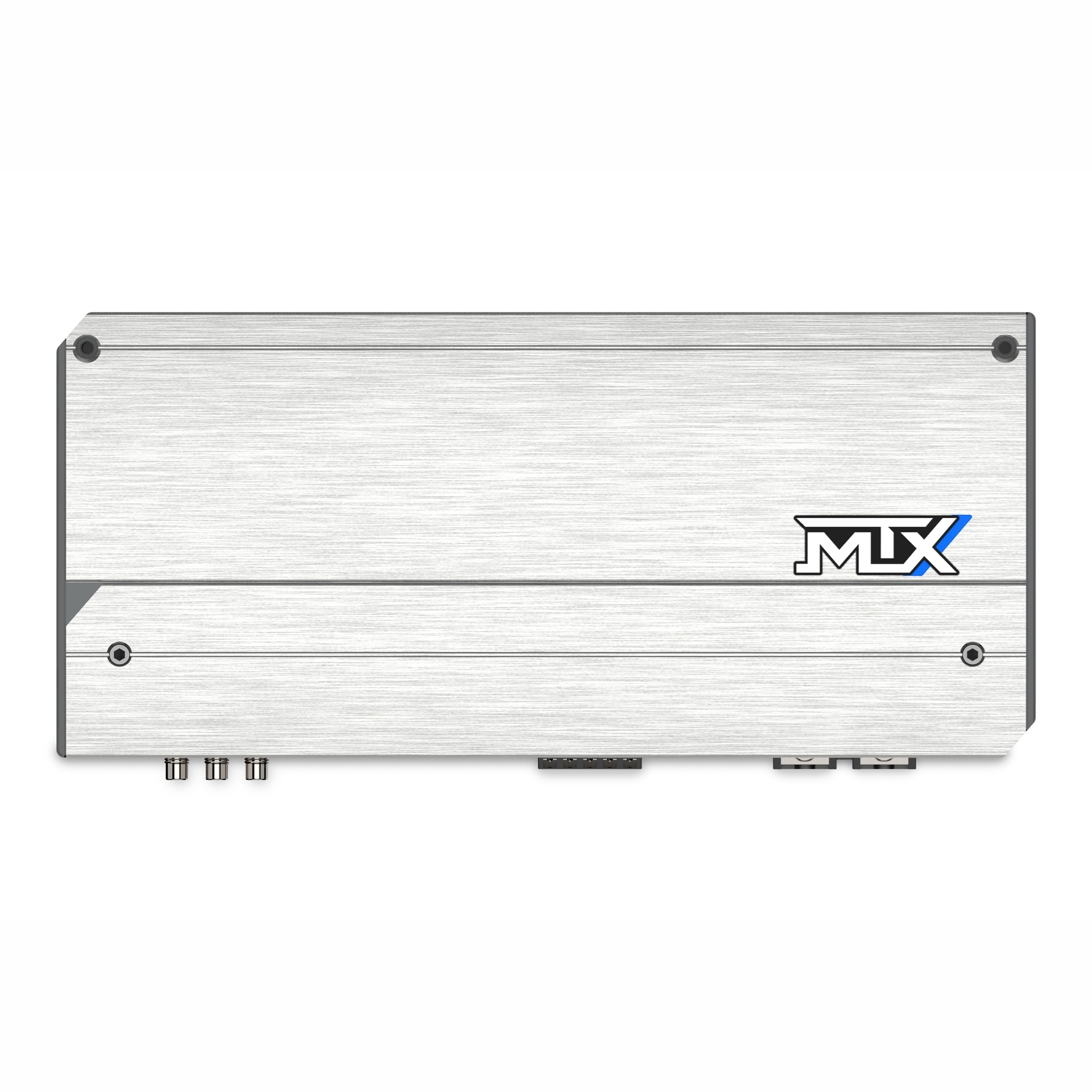

MX-MA14005

• Conformal Coated Circuit Board for Water & Salt Resistance
• Stainless Steel Hardware to Prevent Corrosion
• 1400 Watts RMS Power Output
• Four Full-Range Channels and One Mono Subwoofer Channel
• High-Efficiency Class-D Circuit Design
• Adjustable Gain, Crossover, and Bass Boost Controls
• Hidden Control Panel for a Clean Look
• Included External Bass Control Remote
• Power and Protection LED Status Indicator
• Thermal, Short, and Over/Under Voltage Protection
• High-Quality Tiffany-Style RCA Input
• 10V High-Level Audio Input Compatibility
• Clip Detection Light for Tuning Optimization
• Surface Mount Component Technology
• Direct Insert Power and Speaker Terminals
• Dyno Power Rating Certificate

• CEA2006D compliant
• RECOMMENDED FUSE RATING: 150A - 200A

CTA-2006-D Continuous Power Output:

150W RMS x 4 @ 2Ω, 1kHz + 800W RMS x 1@ 1Ω, 50Hz, ≤1% THD+N

150W RMS x 4 @ 2Ω, 1kHz + 500W RMS x 1@ 2Ω, 50Hz, ≤1% THD+N

150W RMS x 4 @ 2Ω, 1kHz + 300W RMS x 1@ 4Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 800W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 500W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 300W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 800W RMS x 1@ 1Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 500W RMS x 1@ 2Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 300W RMS x 1@ 4Ω, 50Hz, ≤1% THD+N
