2500-Watt RMS 1O Mono Block Class-D Marine Amplifier
SKU: MX-MA25001
Brand part number: MA25001
Brand: MTX


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Maximum Output, Minimal Space

    The MA2500.1 delivers 2500 watts RMS in a streamlined chassis that’s easy to install without sacrificing performance. It’s powerful enough to drive high-output subwoofers and compact enough to fit in tight spaces. Each unit includes a Dyno Power Rating Certificate, so you can trust the numbers and expect real, tested performance.

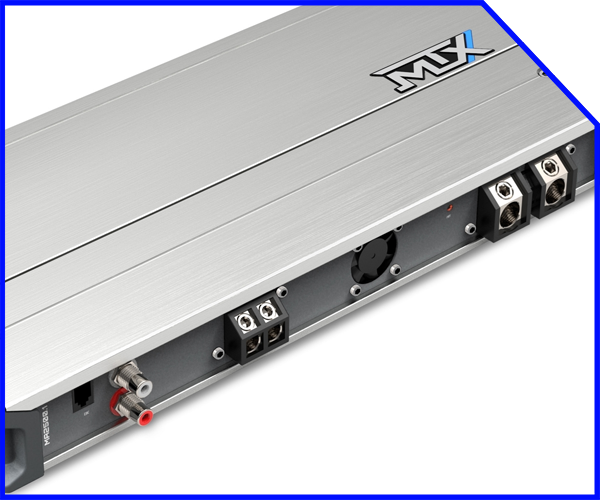

    MA2500.1 Made for Marine Environments

    Made for Marine Environments

    A conformal-coated circuit board protects internal components from moisture and corrosion, while stainless steel hardware resists rust in harsh marine conditions. The MA2500.1 is built to handle the elements without compromising sound quality or reliability.

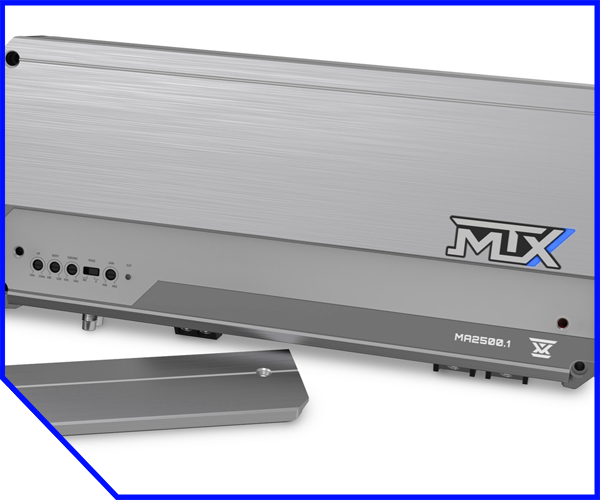

    MA2500.1 Efficient, Reliable Power

    Efficient, Reliable Power

    Class D circuitry keeps the MA2500.1 running cool and power-efficient without sacrificing output. Tiffany-style RCA inputs and high-level 10V compatibility allow clean integration into nearly any audio setup, delivering distortion-free signal and consistent sound at any volume.

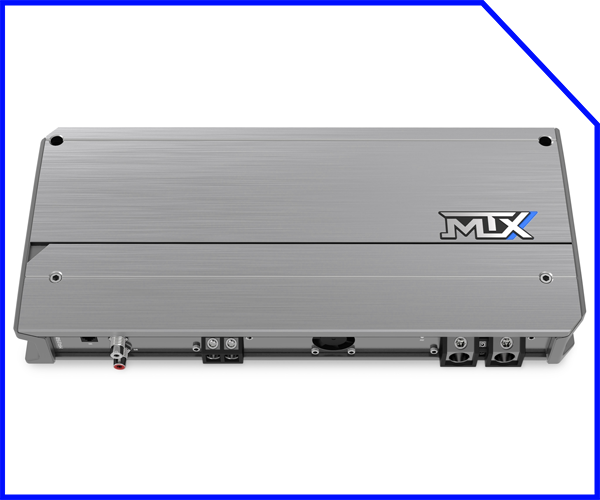

    MA2500.1 Precise Control and Protection

    Precise Control and Protection

    Dial in your sound with an external bass control remote and onboard clip detection light for accurate tuning. Gain and crossover settings are housed under a low-profile panel to maintain a clean appearance. Built-in protection circuits and an LED indicator help monitor thermal, voltage, and short conditions so your system stays safe and performing at its best.

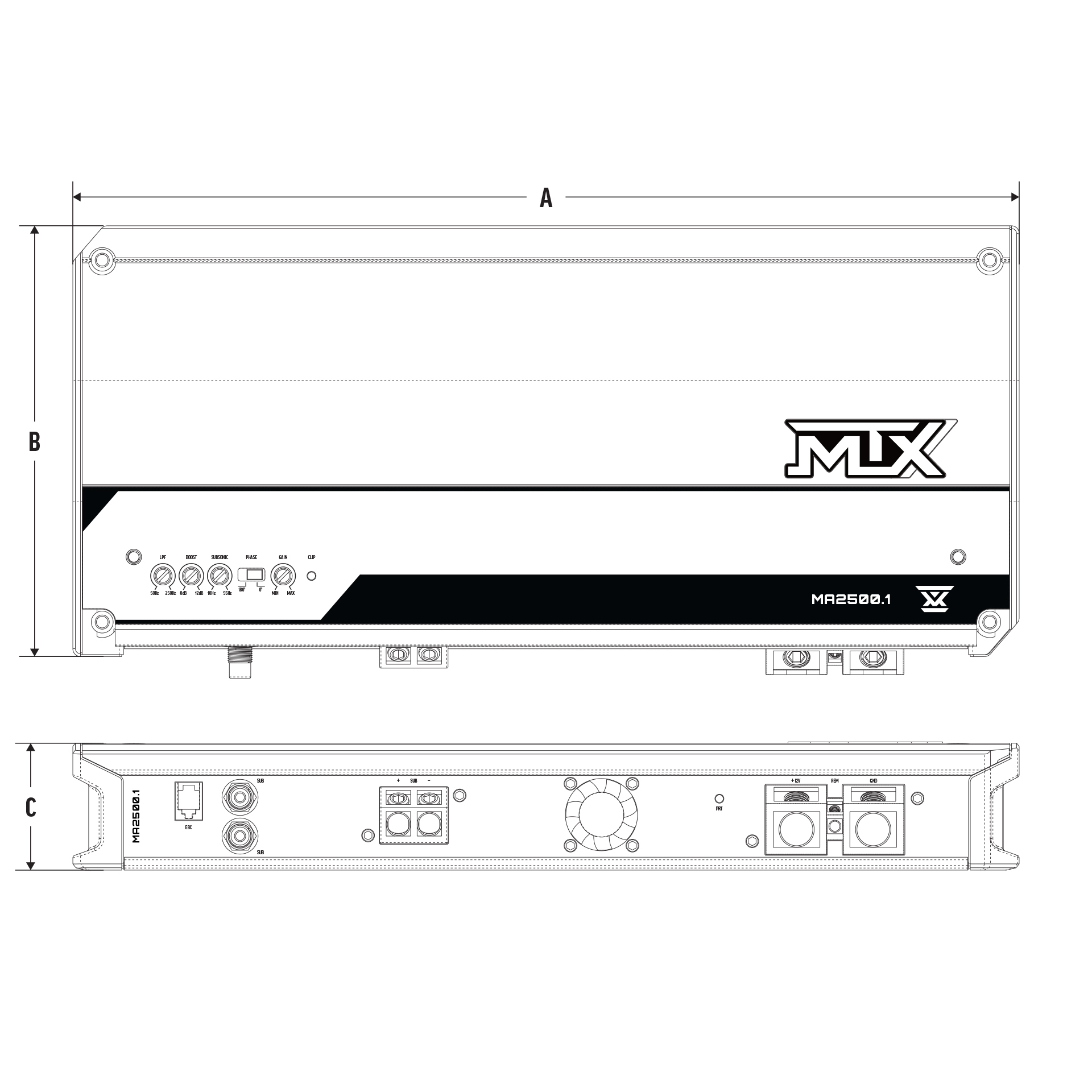

    Dimensions & Details



    Dimensions

    • A - Length:
      14 ¹⁄₂” (367mm)
    • B - Width:
      7” (176mm)
    • C - Depth:
      2” (50mm)
    •
    • Weight:
      9.31Lbs (4.22Kg)
    MA2500.1 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 2500 Watts RMS Power Output at 1Ω
    • External Bass Control Remote
    • High-Quality Tiffany-Style RCA Input
    • Mono Block Class-D Circuit Design
    • 10V High-Level Audio Input Compatibility
    • Clip Detection Light for Tuning Optimization
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 250A - 300A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:



    2500W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

    1750W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

    1000W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: Mono Block
    • Topology: Class D
    • 4Ω RMS Power Output: 1000W x 1 Channel
    • 2Ω RMS Power Output: 1750W x 1 Channel
    • 1Ω RMS Power Output: 2500W x 1 Channel
    • THD: <0.1%
    • Signal to Noise Ratio: >100dB
    • Frequency Response: 20Hz - 250Hz
    • Crossover: 50Hx - 250Hz
    • Subsonic Filter: 10Hz - 55Hz
    • Maximum Input Signal: 10V
    • Warranty Period: 24 months from date of purchase

    Maximum Output, Minimal Space

    The MA2500.1 delivers 2500 watts RMS in a streamlined chassis that’s easy to install without sacrificing performance. It’s powerful enough to drive high-output subwoofers and compact enough to fit in tight spaces. Each unit includes a Dyno Power Rating Certificate, so you can trust the numbers and expect real, tested performance.

    MA2500.1 Made for Marine Environments

    Made for Marine Environments

    A conformal-coated circuit board protects internal components from moisture and corrosion, while stainless steel hardware resists rust in harsh marine conditions. The MA2500.1 is built to handle the elements without compromising sound quality or reliability.

    MA2500.1 Efficient, Reliable Power

    Efficient, Reliable Power

    Class D circuitry keeps the MA2500.1 running cool and power-efficient without sacrificing output. Tiffany-style RCA inputs and high-level 10V compatibility allow clean integration into nearly any audio setup, delivering distortion-free signal and consistent sound at any volume.

    MA2500.1 Precise Control and Protection

    Precise Control and Protection

    Dial in your sound with an external bass control remote and onboard clip detection light for accurate tuning. Gain and crossover settings are housed under a low-profile panel to maintain a clean appearance. Built-in protection circuits and an LED indicator help monitor thermal, voltage, and short conditions so your system stays safe and performing at its best.

    Dimensions & Details



    Dimensions

    • A - Length:
      14 ¹⁄₂” (367mm)
    • B - Width:
      7” (176mm)
    • C - Depth:
      2” (50mm)
    •
    • Weight:
      9.31Lbs (4.22Kg)
    MA2500.1 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 2500 Watts RMS Power Output at 1Ω
    • External Bass Control Remote
    • High-Quality Tiffany-Style RCA Input
    • Mono Block Class-D Circuit Design
    • 10V High-Level Audio Input Compatibility
    • Clip Detection Light for Tuning Optimization
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 250A - 300A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:



    2500W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

    1750W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

    1000W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: Mono Block
    • Topology: Class D
    • 4Ω RMS Power Output: 1000W x 1 Channel
    • 2Ω RMS Power Output: 1750W x 1 Channel
    • 1Ω RMS Power Output: 2500W x 1 Channel
    • THD: <0.1%
    • Signal to Noise Ratio: >100dB
    • Frequency Response: 20Hz - 250Hz
    • Crossover: 50Hx - 250Hz
    • Subsonic Filter: 10Hz - 55Hz
    • Maximum Input Signal: 10V
    • Warranty Period: 24 months from date of purchase
