400-Watt RMS Full Range Class D 4-Channel Marine Amplifier
SKU: MX-MA4004
Brand part number: MA4004
Brand: MTX


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Big Power in a Compact Design

    The MA400.4 delivers 100 watts RMS per channel at 2Ω, pushing crisp, distortion-free sound through every speaker in your setup. Its compact footprint makes it easy to install without sacrificing performance. Each amp includes a Dyno Power Rating Certificate, confirming that you’re getting real, verified power.

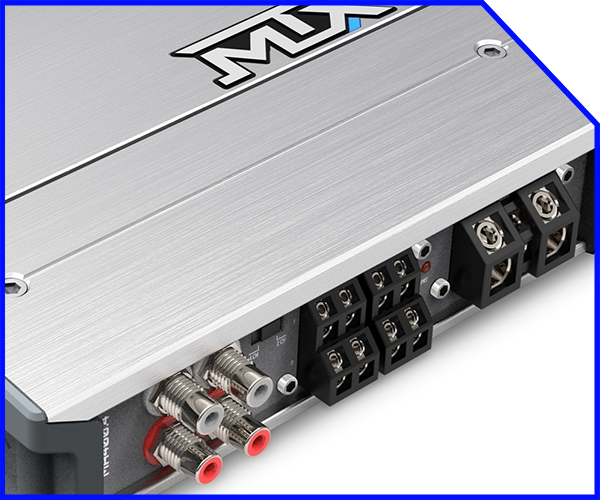

    MA400.4 Built for Harsh Conditions

    Built for Harsh Conditions

    Marine-specific upgrades make the MA400.4 a durable choice for life on the water. A conformal-coated circuit board protects against salt and moisture, while stainless steel hardware resists corrosion over time. It’s designed to stand up to the elements without compromising audio quality.

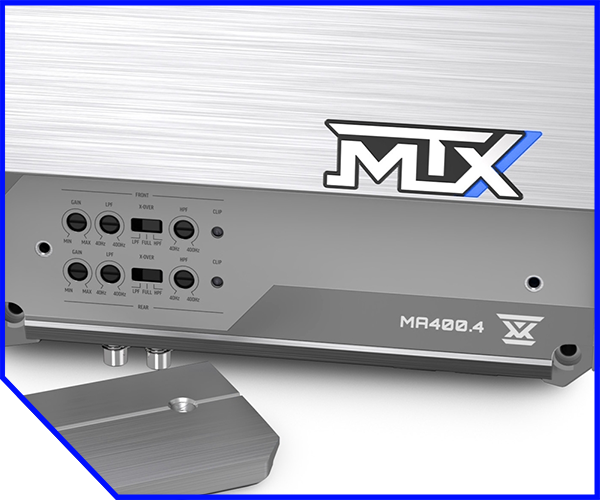

    MA400.4 Efficient Power you can Rely On

    Efficient Power you can Rely On

    With Class D circuitry, the MA400.4 runs cool and efficient even when pushed at high volume. Its surface mount component design keeps connections stable and secure, maintaining consistent output even in high-vibration environments.

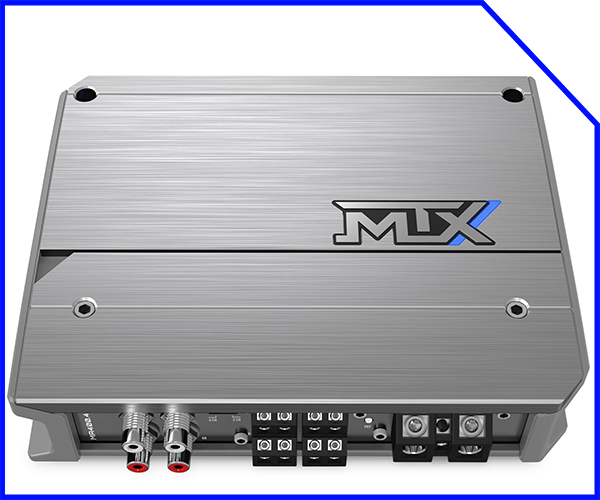

    MA400.4 Protection and Piece of Mind

    Protection and Piece of Mind

    Fine-tune your audio with variable gain and crossover settings, all hidden beneath a clean, low-profile panel. An LED indicator keeps you informed of power or protection status, monitoring for voltage issues or overheating so your system stays safe and sounding great.

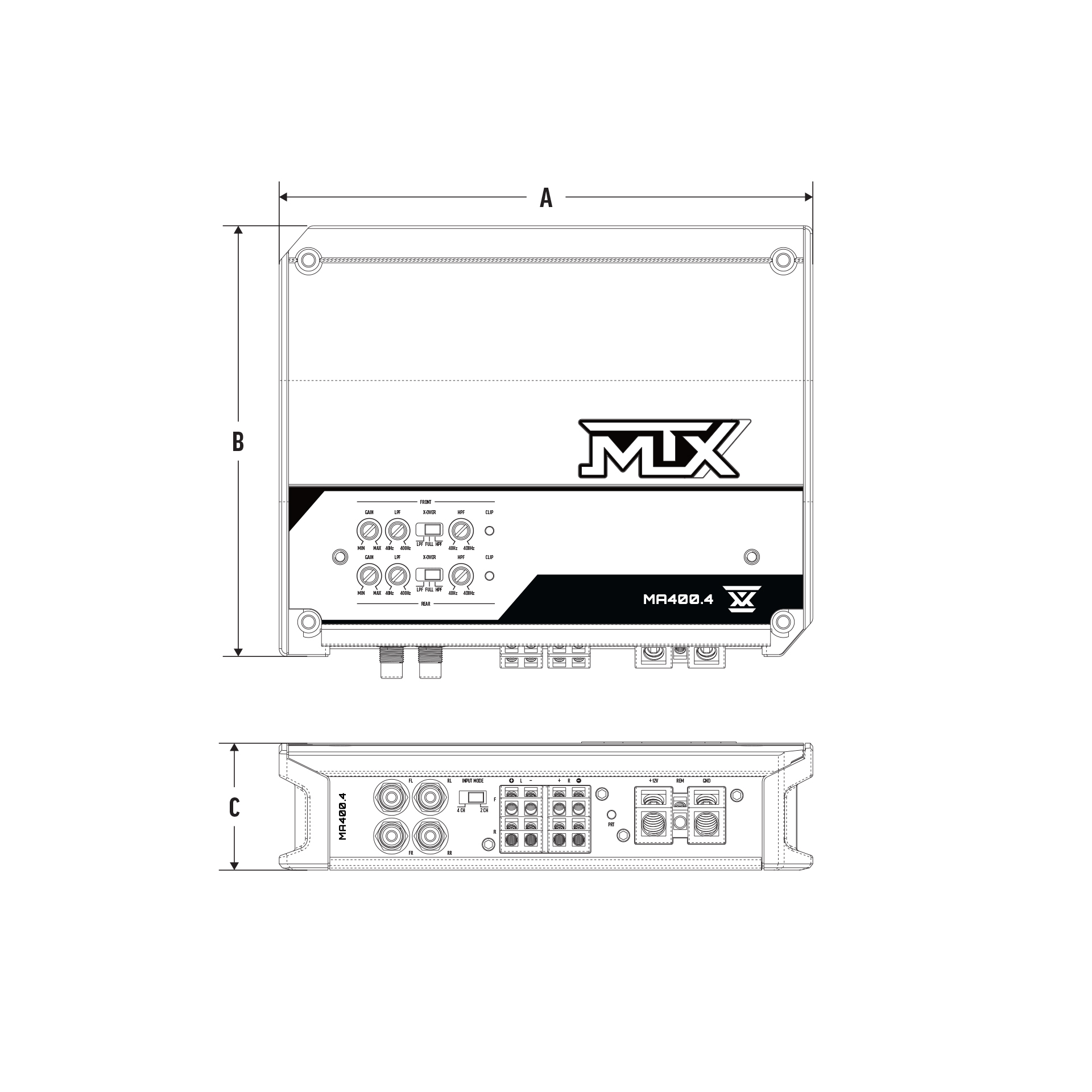

    Dimensions & Details



    Dimensions

    • A - Length:
      6 ³⁄₄” (171mm)
    • B - Width:
      7” (178mm)
    • C - Depth:
      2" (51mm)
    •
    • Weight:
      4.88Lbs (2.21Kg)
    MA400.1 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 400 Watts RMS Power Output
    • Reliable Full-Range Class-D Circuit Design
    • Compact Size for Flexible Installation
    • 10V High-Level Audio Input Compatibility
    • High-Quality Tiffany-Style RCA Input
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Clip Detection Light for Tuning Optimization
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 40A - 60A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:

    100W RMS x 4 @ 2Ω, 1kHz, ≤1% THD+N

    50W RMS x 4 @ 4Ω, 1kHz, ≤1% THD+N

    200W RMS x 2 Bridged @ 4Ω, 1kHz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: 4-Channel
    • Topology: Full Range Class D
    • 4Ω RMS Power Output: 50W x 4 Channels
    • 2Ω RMS Power Output: 100W x 4 Channels
    • 4Ω RMS Bridged Power Output : 200W x 2 Channels
    • THD: < 0.1%
    • Signal to Noise Ratio: > 98dB
    • Frequency Response: 20Hz - 20KHz
    • Crossover: 40Hz - 400Hz
    • Maximum Input Signal: 10V
    • Warranty Period: 24 months from date of purchase

    Big Power in a Compact Design

    The MA400.4 delivers 100 watts RMS per channel at 2Ω, pushing crisp, distortion-free sound through every speaker in your setup. Its compact footprint makes it easy to install without sacrificing performance. Each amp includes a Dyno Power Rating Certificate, confirming that you’re getting real, verified power.

    MA400.4 Built for Harsh Conditions

    Built for Harsh Conditions

    Marine-specific upgrades make the MA400.4 a durable choice for life on the water. A conformal-coated circuit board protects against salt and moisture, while stainless steel hardware resists corrosion over time. It’s designed to stand up to the elements without compromising audio quality.

    MA400.4 Efficient Power you can Rely On

    Efficient Power you can Rely On

    With Class D circuitry, the MA400.4 runs cool and efficient even when pushed at high volume. Its surface mount component design keeps connections stable and secure, maintaining consistent output even in high-vibration environments.

    MA400.4 Protection and Piece of Mind

    Protection and Piece of Mind

    Fine-tune your audio with variable gain and crossover settings, all hidden beneath a clean, low-profile panel. An LED indicator keeps you informed of power or protection status, monitoring for voltage issues or overheating so your system stays safe and sounding great.

    Dimensions & Details



    Dimensions

    • A - Length:
      6 ³⁄₄” (171mm)
    • B - Width:
      7” (178mm)
    • C - Depth:
      2" (51mm)
    •
    • Weight:
      4.88Lbs (2.21Kg)
    MA400.1 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 400 Watts RMS Power Output
    • Reliable Full-Range Class-D Circuit Design
    • Compact Size for Flexible Installation
    • 10V High-Level Audio Input Compatibility
    • High-Quality Tiffany-Style RCA Input
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Clip Detection Light for Tuning Optimization
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 40A - 60A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:

    100W RMS x 4 @ 2Ω, 1kHz, ≤1% THD+N

    50W RMS x 4 @ 4Ω, 1kHz, ≤1% THD+N

    200W RMS x 2 Bridged @ 4Ω, 1kHz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: 4-Channel
    • Topology: Full Range Class D
    • 4Ω RMS Power Output: 50W x 4 Channels
    • 2Ω RMS Power Output: 100W x 4 Channels
    • 4Ω RMS Bridged Power Output : 200W x 2 Channels
    • THD: < 0.1%
    • Signal to Noise Ratio: > 98dB
    • Frequency Response: 20Hz - 20KHz
    • Crossover: 40Hz - 400Hz
    • Maximum Input Signal: 10V
    • Warranty Period: 24 months from date of purchase
    Products specifications
    Warranty2 YEAR DLR
    Master Pack4
    Unit of MeasureEACH
    FF Level100
    Products specifications
    Warranty2 YEAR DLR
    Master Pack4
    Unit of MeasureEACH
    FF Level100
