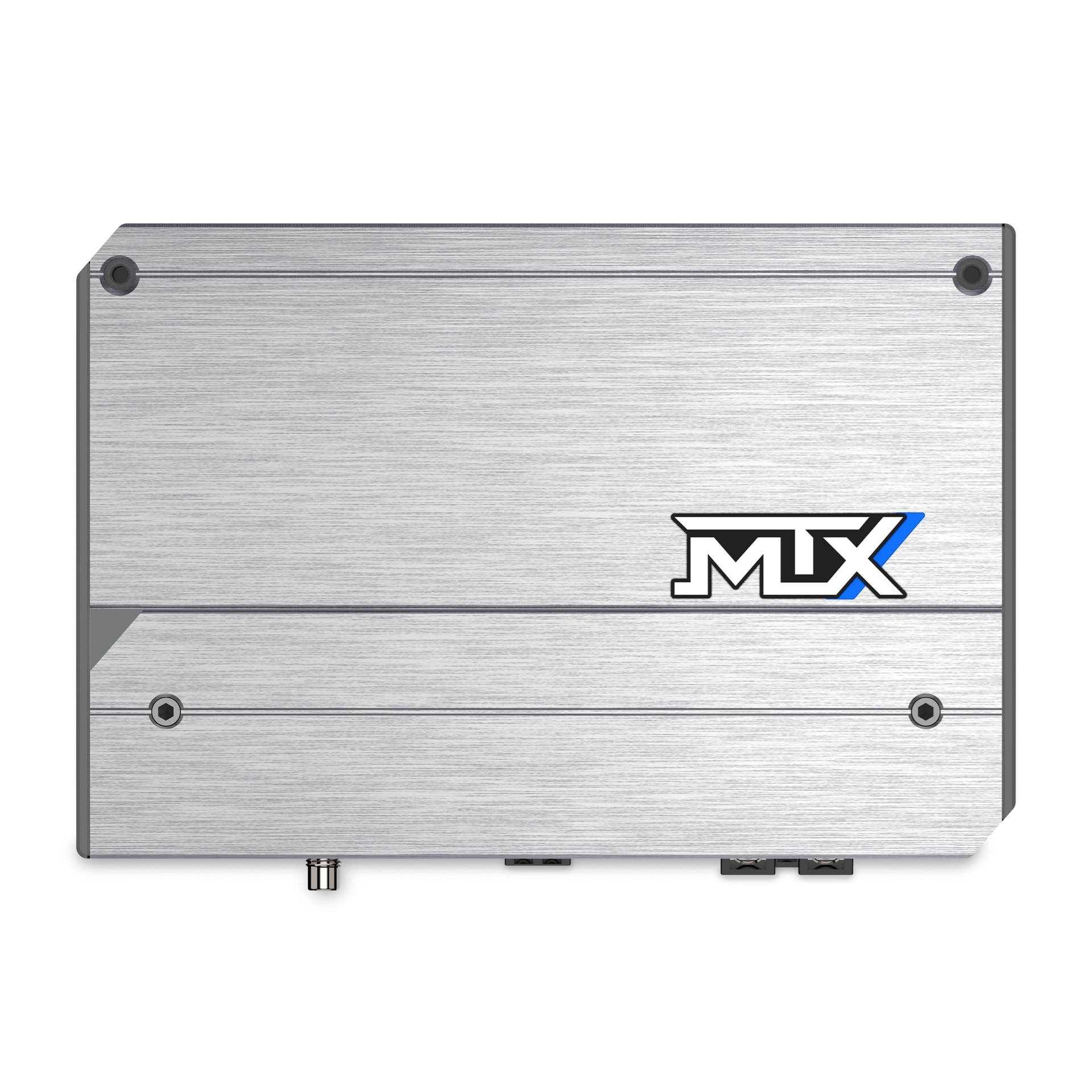

750-Watt RMS 1O Mono Block Class-D Marine Amplifier
SKU: MX-MA7501
Brand part number: MA7501
Brand: MTX


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Maximum Output, Minimal Space

    The MA750.1 amplifier outputs 750 watts RMS at 1Ω, giving your system clear, deep, and powerful bass in a stylish compact design. The MA750.1 integrates seamlessly into most watercraft, making it an ideal choice for tight spaces without compromising sound quality. The Dyno Certificate included will ensure that your amplifier potential exceeds the rated amount and gives you the power you deserve.

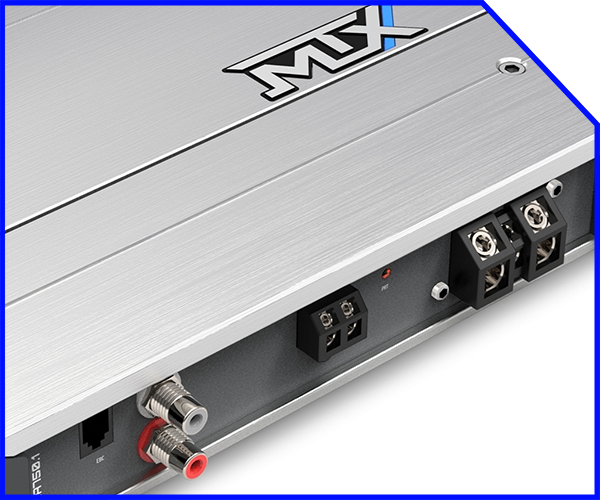

    MA750.1 Power that Stays Cool Under Pressure

    Power that Stays Cool Under Pressure

    Built with advanced Class-D technology, the MA750.1 minimizes heat generation and power draw for efficient, reliable operation. The addition of a Tiffany-style RCA input and a high-level 10V audio input ensures compatibility with various audio sources while maintaining signal purity, so your music comes through with exceptional clarity.

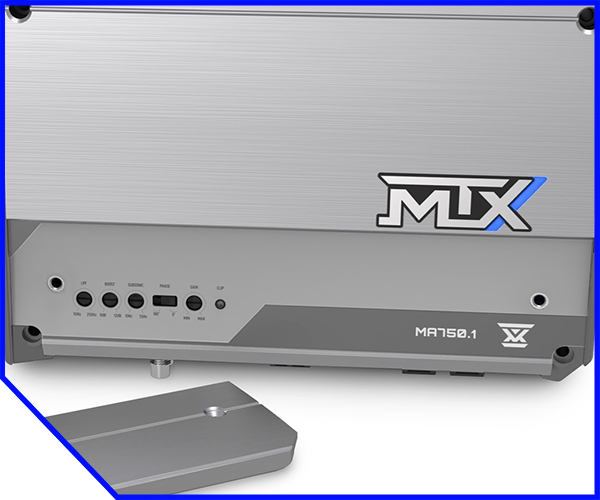

    MA750.1 Take Full Command of your Sound

    Take Full Command of your Sound

    Equipped with a user-friendly, external bass control remote, the TH750.1 gives you easy command over your bass levels right from the driver’s seat. For an even cleaner sound setup, it includes a clip detection light for optimal tuning. With control settings discreetly protected under a sleek panel cover, you’ll have a clean and refined installation that matches the amplifier’s stylish design.

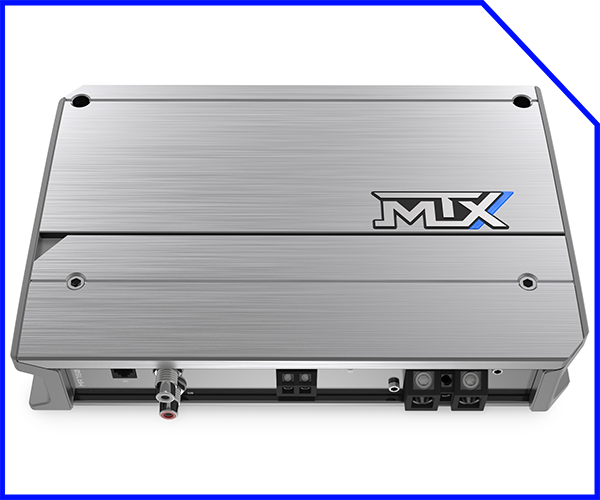

    MA750.1 Protected for the Marine Environment

    Protected for the Marine Environment

    A conformal-coated circuit board defends internal components from salt, spray, and moisture, while stainless steel hardware ensures corrosion resistance over time. Built specifically for marine use, the MA750.1 is engineered for long-term durability without sacrificing audio quality.

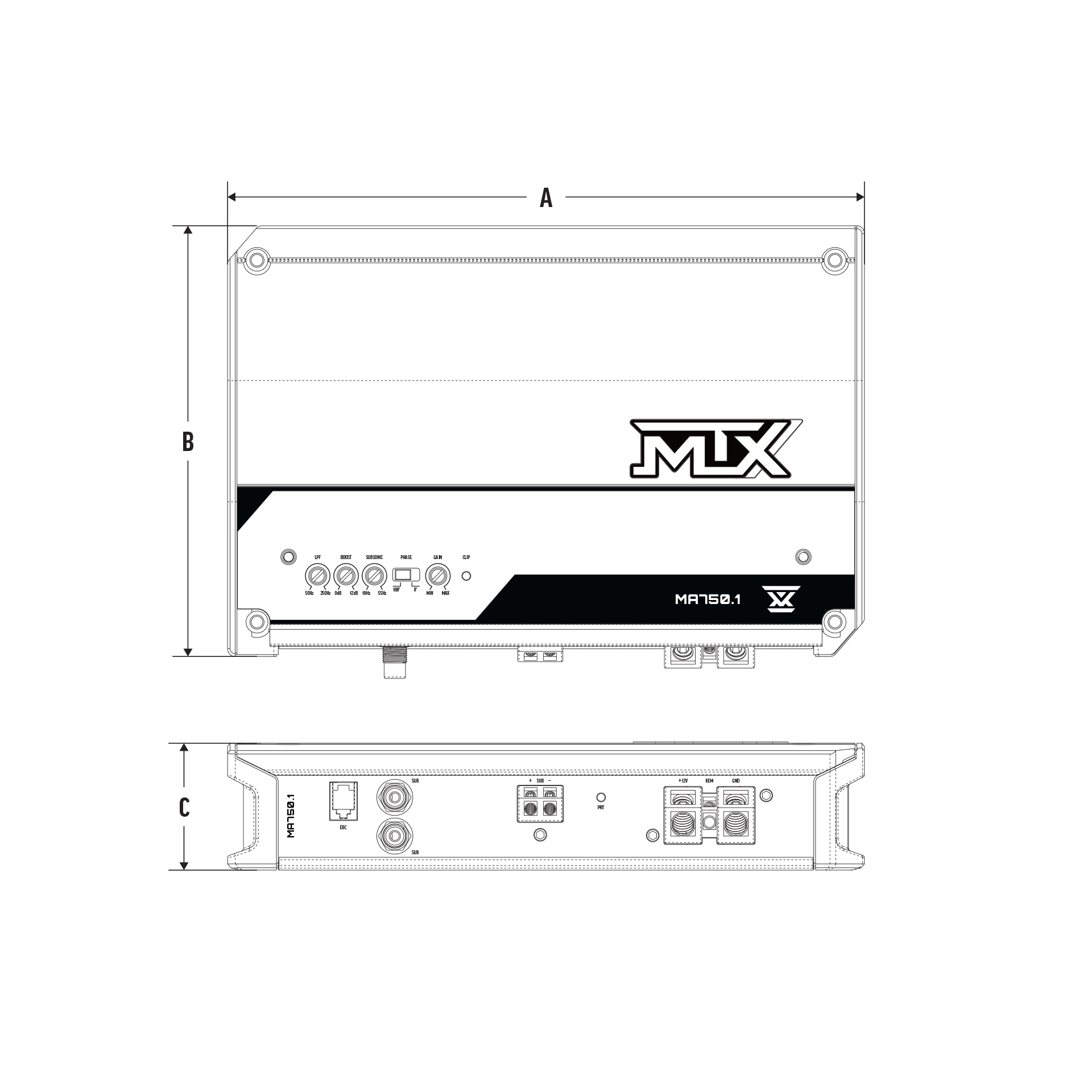

    Dimensions & Details



    Dimensions

    • A - Length:
      6 ³⁄₄” (171mm)
    • B - Width:
      7” (178mm)
    • C - Depth:
      2" (50mm)
    •
    • Weight:
      4.88Lbs (2.21Kg)
    MA750.1 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 750 Watts RMS Power Output at 1Ω
    • External Bass Control Remote
    • High-Quality Tiffany-Style RCA Input
    • Mono Block Class-D Circuit Design
    • 10V High-Level Audio Input Compatibility
    • Clip Detection Light for Tuning Optimization
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 80A - 100A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:



    750W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

    500W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

    250W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: Mono Block
    • Topology: Class D
    • 4Ω RMS Power Output: 250W x 1 Channel
    • 2Ω RMS Power Output: 500W x 1 Channel
    • 1Ω RMS Power Output: 750W x 1 Channel
    • THD: < 0.1%
    • Signal to Noise Ratio: > 100dB
    • Frequency Response: 20Hz - 250Hz
    • Crossover: 50Hz - 250Hz
    • Subsonic Filter: 10Hz - 55Hz
    • Maximum Input Signal: 10V

    Maximum Output, Minimal Space

    The MA750.1 amplifier outputs 750 watts RMS at 1Ω, giving your system clear, deep, and powerful bass in a stylish compact design. The MA750.1 integrates seamlessly into most watercraft, making it an ideal choice for tight spaces without compromising sound quality. The Dyno Certificate included will ensure that your amplifier potential exceeds the rated amount and gives you the power you deserve.

    MA750.1 Power that Stays Cool Under Pressure

    Power that Stays Cool Under Pressure

    Built with advanced Class-D technology, the MA750.1 minimizes heat generation and power draw for efficient, reliable operation. The addition of a Tiffany-style RCA input and a high-level 10V audio input ensures compatibility with various audio sources while maintaining signal purity, so your music comes through with exceptional clarity.

    MA750.1 Take Full Command of your Sound

    Take Full Command of your Sound

    Equipped with a user-friendly, external bass control remote, the TH750.1 gives you easy command over your bass levels right from the driver’s seat. For an even cleaner sound setup, it includes a clip detection light for optimal tuning. With control settings discreetly protected under a sleek panel cover, you’ll have a clean and refined installation that matches the amplifier’s stylish design.

    MA750.1 Protected for the Marine Environment

    Protected for the Marine Environment

    A conformal-coated circuit board defends internal components from salt, spray, and moisture, while stainless steel hardware ensures corrosion resistance over time. Built specifically for marine use, the MA750.1 is engineered for long-term durability without sacrificing audio quality.

    Dimensions & Details



    Dimensions

    • A - Length:
      6 ³⁄₄” (171mm)
    • B - Width:
      7” (178mm)
    • C - Depth:
      2" (50mm)
    •
    • Weight:
      4.88Lbs (2.21Kg)
    MA750.1 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 750 Watts RMS Power Output at 1Ω
    • External Bass Control Remote
    • High-Quality Tiffany-Style RCA Input
    • Mono Block Class-D Circuit Design
    • 10V High-Level Audio Input Compatibility
    • Clip Detection Light for Tuning Optimization
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 80A - 100A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:



    750W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

    500W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

    250W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: Mono Block
    • Topology: Class D
    • 4Ω RMS Power Output: 250W x 1 Channel
    • 2Ω RMS Power Output: 500W x 1 Channel
    • 1Ω RMS Power Output: 750W x 1 Channel
    • THD: < 0.1%
    • Signal to Noise Ratio: > 100dB
    • Frequency Response: 20Hz - 250Hz
    • Crossover: 50Hz - 250Hz
    • Subsonic Filter: 10Hz - 55Hz
    • Maximum Input Signal: 10V
    Products specifications
    Warranty2 YEAR DLR
    Master Pack4
    Unit of MeasureEACH
    FF Level100
    Products specifications
    Warranty2 YEAR DLR
    Master Pack4
    Unit of MeasureEACH
    FF Level100
