800-Watt RMS Full Range Class D 4-Channel Marine Amplifier
SKU: MX-MA8004
Brand part number: MA8004
Brand: MTX


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Big Power in a Compact Design

    The MA800.4 amplifier delivers 200 watts RMS per channel at 2Ω, powering each speaker with precise, distortion-free sound. Its compact design makes it easy to install in nearly any vehicle, bringing clean, full-range audio to every seat without taking up valuable space. Each amplifier is accompanied by a Dyno Certificate, showcasing its ability to deliver headroom and exceed its rated power output, giving you the power and confidence your system deserves.

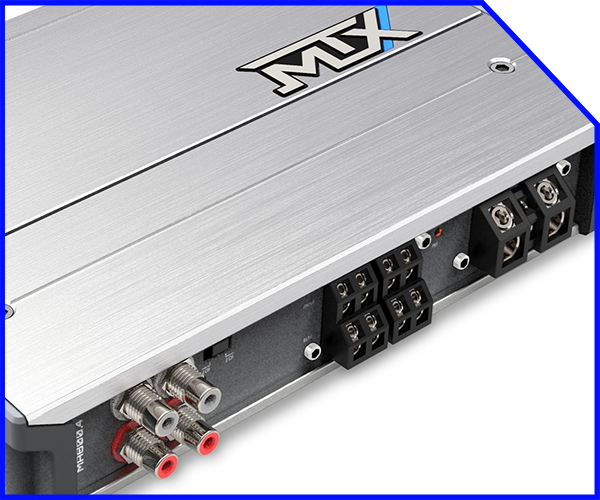

    MA800.4 High Efficiency, Consistant Performance

    High Efficiency, Consistant Performance

    Class-D technology ensures high efficiency and low heat, giving you consistent performance even at high output levels. Its surface mount component design ensures solid, vibration-resistant connections, helping maintain audio performance over time, even in rough water conditions.

    MA800.4 Control and Customization at your Fingertips

    Control and Customization at your Fingertips

    With the MA800.4, you get total control over your sound. Variable crossover and gain controls let you adjust the output to perfectly match your audio preferences, whether you’re enhancing the highs, mids, or lows. Hidden controls under a sleek panel cover keep your setup looking refined and uncluttered.

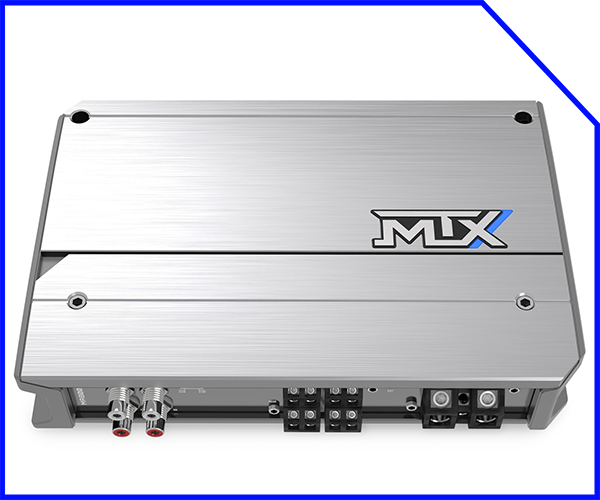

    MA800.4 Marine-Built from the Inside Out

    Marine-Built from the Inside Out

    With a conformal-coated circuit board and corrosion-resistant stainless steel hardware, the MA800.4 is built to handle harsh marine conditions. Moisture, salt, and spray are kept at bay, so your system keeps performing no matter where the water takes you.

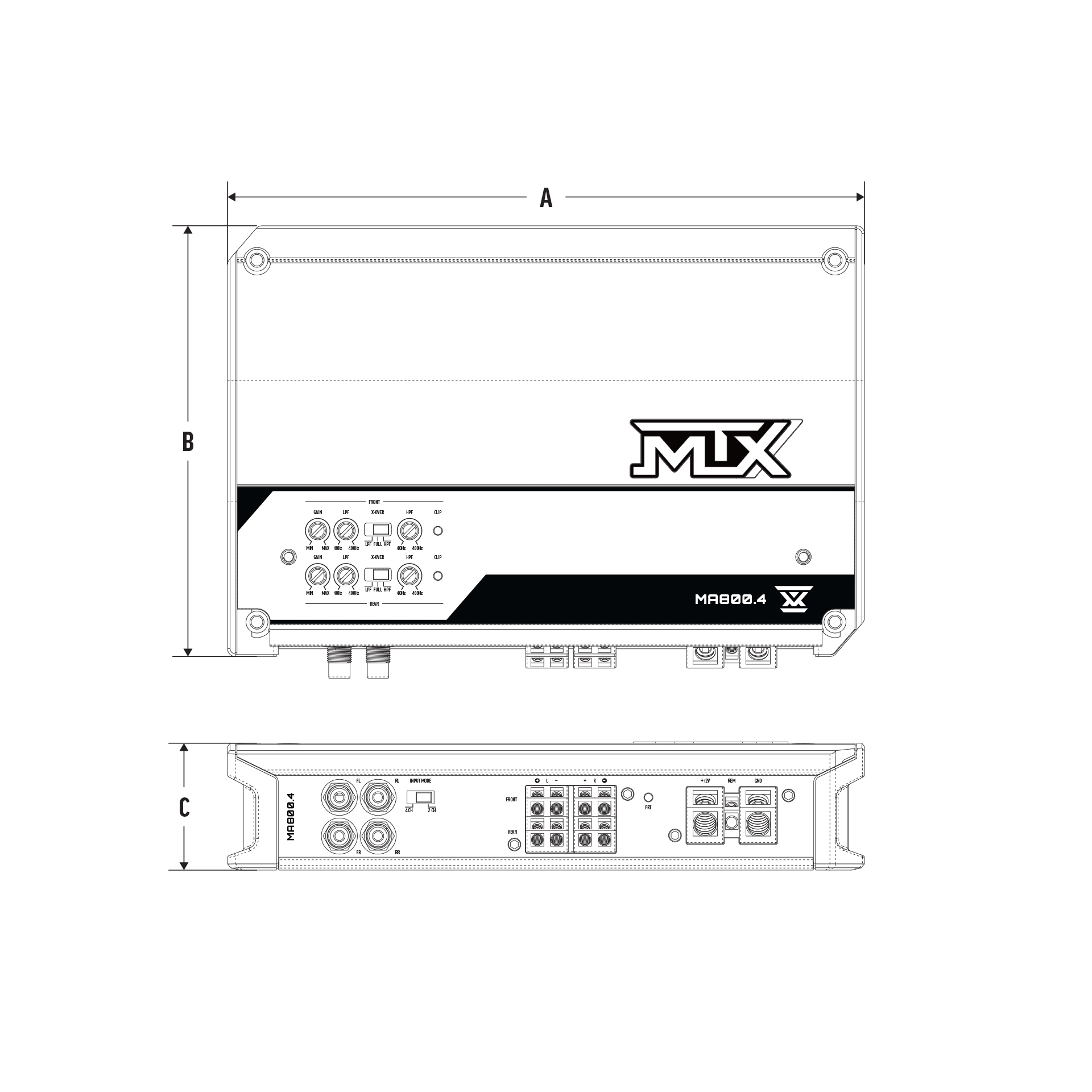

    Dimensions & Details



    Dimensions

    • A - Length:
      9 ³⁄₄” (247mm)
    • B - Width:
      7” (176mm)
    • C - Depth:
      2” (50mm)
    •
    • Weight:
      5.69Lbs (2.58Kg)
    MA800.4 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 800 Watts RMS Power Output
    • Reliable Full-Range Class-D Circuit Design
    • Compact Size for Flexible Installation
    • 10V High-Level Audio Input Compatibility
    • High-Quality Tiffany-Style RCA Input
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Clip Detection Light for Tuning Optimization
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 60A - 80A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:

    200W RMS x 4 @ 2Ω, 1kHz, ≤1% THD+N

    100W RMS x 4 @ 4Ω, 1kHz, ≤1% THD+N

    400W RMS x 2 Bridged @ 4Ω, 1kHz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: 4-Channel
    • Topology: Full Range Class D
    • 4Ω RMS Power Output: 100W x 4 Channels
    • 2Ω RMS Power Output: 200W x 4 Channels
    • 4Ω RMS Bridged Power Output: 400W x 2 Channels
    • THD: < 0.2%
    • Signal to Noise Ratio: > 98dB
    • Frequency Response: 20Hz - 20KHz
    • Crossover: 40Hz - 400Hz
    • Maximum Input Signal: 10V

    Big Power in a Compact Design

    The MA800.4 amplifier delivers 200 watts RMS per channel at 2Ω, powering each speaker with precise, distortion-free sound. Its compact design makes it easy to install in nearly any vehicle, bringing clean, full-range audio to every seat without taking up valuable space. Each amplifier is accompanied by a Dyno Certificate, showcasing its ability to deliver headroom and exceed its rated power output, giving you the power and confidence your system deserves.

    MA800.4 High Efficiency, Consistant Performance

    High Efficiency, Consistant Performance

    Class-D technology ensures high efficiency and low heat, giving you consistent performance even at high output levels. Its surface mount component design ensures solid, vibration-resistant connections, helping maintain audio performance over time, even in rough water conditions.

    MA800.4 Control and Customization at your Fingertips

    Control and Customization at your Fingertips

    With the MA800.4, you get total control over your sound. Variable crossover and gain controls let you adjust the output to perfectly match your audio preferences, whether you’re enhancing the highs, mids, or lows. Hidden controls under a sleek panel cover keep your setup looking refined and uncluttered.

    MA800.4 Marine-Built from the Inside Out

    Marine-Built from the Inside Out

    With a conformal-coated circuit board and corrosion-resistant stainless steel hardware, the MA800.4 is built to handle harsh marine conditions. Moisture, salt, and spray are kept at bay, so your system keeps performing no matter where the water takes you.

    Dimensions & Details



    Dimensions

    • A - Length:
      9 ³⁄₄” (247mm)
    • B - Width:
      7” (176mm)
    • C - Depth:
      2” (50mm)
    •
    • Weight:
      5.69Lbs (2.58Kg)
    MA800.4 Dimensions

    Features

    • Conformal Coated Circuit Board for Water & Salt Resistance
    • Stainless Steel Hardware to Prevent Corrosion
    • 800 Watts RMS Power Output
    • Reliable Full-Range Class-D Circuit Design
    • Compact Size for Flexible Installation
    • 10V High-Level Audio Input Compatibility
    • High-Quality Tiffany-Style RCA Input
    • Power and Protection LED Indicator Light
    • Surface Mount Component Technology
    • Direct Insert Power and Speaker Terminals
    • Thermal, Short, and Over/Under Voltage Protection
    • Clip Detection Light for Tuning Optimization
    • Dyno Power Rating Certificate

    Ratings

    • CEA2006D compliant
    • RECOMMENDED FUSE RATING: 60A - 80A



    CTA-2006-D Amp Badge
    CTA-2006-D Continuous Power Output:

    200W RMS x 4 @ 2Ω, 1kHz, ≤1% THD+N

    100W RMS x 4 @ 4Ω, 1kHz, ≤1% THD+N

    400W RMS x 2 Bridged @ 4Ω, 1kHz, ≤1% THD+N



    List of CTA-2006-D Certified 12 Volt Amplifiers

    Videos

    SPECIFICATIONS

    • Description: 4-Channel
    • Topology: Full Range Class D
    • 4Ω RMS Power Output: 100W x 4 Channels
    • 2Ω RMS Power Output: 200W x 4 Channels
    • 4Ω RMS Bridged Power Output: 400W x 2 Channels
    • THD: < 0.2%
    • Signal to Noise Ratio: > 98dB
    • Frequency Response: 20Hz - 20KHz
    • Crossover: 40Hz - 400Hz
    • Maximum Input Signal: 10V
