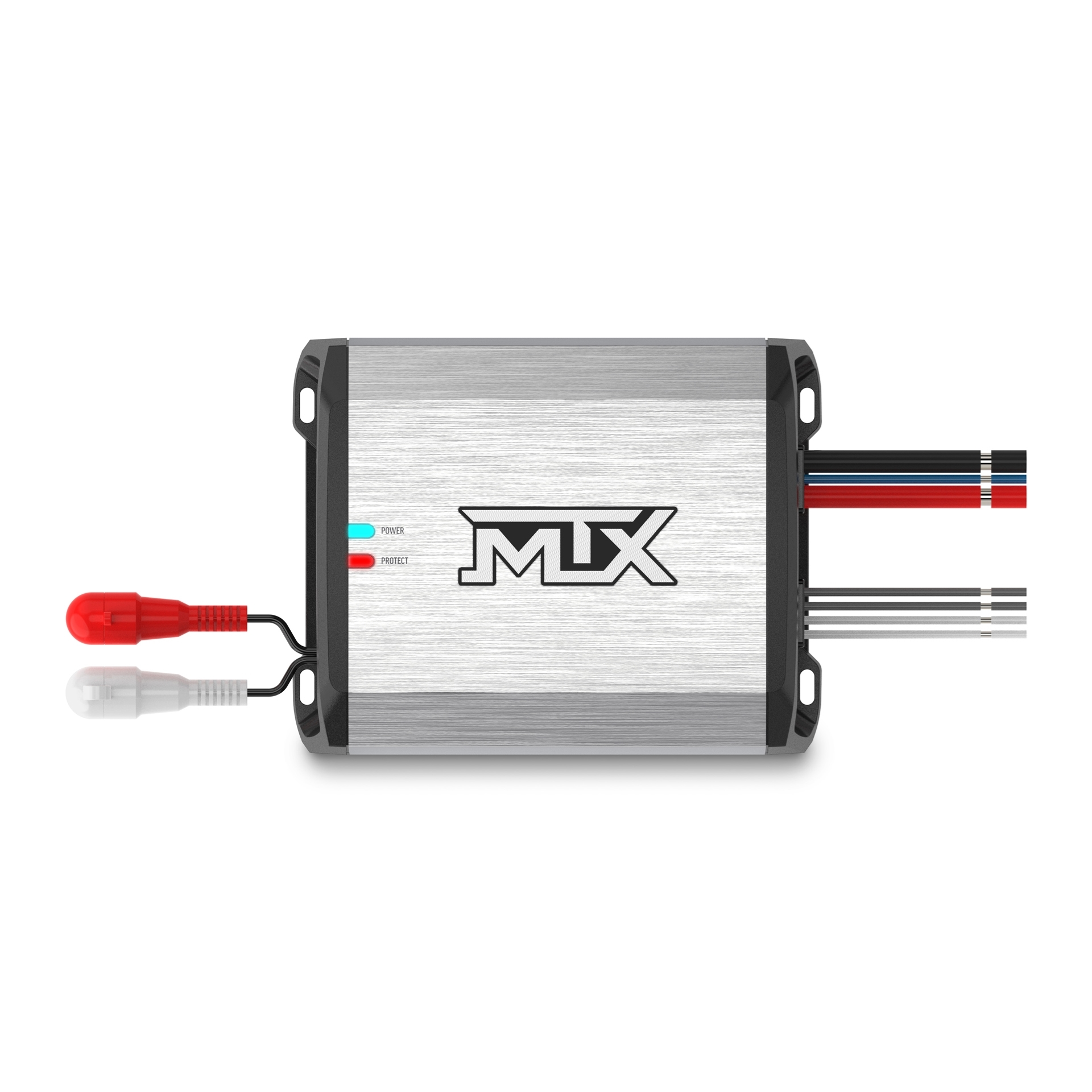

Powersports All-Weather Full Range Class D 2-Channel Amplifier 100W RMS x 2 @ 2O

SKU: MX-PS200.2

Brand part number: PS200.2

Brand: MTX

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Compact Powerhouse

The PS200.2 may be compact, but it delivers a strong 100 watts RMS per channel at 2Ω—or up to 200 watts bridged for bigger output. Its efficient Class-D design means more music with less strain on your electrical system.

Built for the Outdoors

IP67-rated against dust and water, the PS200.2 is engineered to handle the harshest environments. From desert trails to muddy backroads, stainless steel hardware and a sealed chassis keep it performing no matter where you ride.

Smart Protection & Reliability

LED status indicators and built-in safeguards against thermal overload, short circuits, and voltage fluctuations ensure reliable performance every time. With CTA-2006-D certification, the PS200.2 delivers honest power that lives up to the numbers.

Dimensions & Details

Dimensions

A - Length:
6” (152mm)
B - Width:
4 ¹¹⁄₁₆" (119mm)
C - Depth:
2" (51mm)

Features

Reliable and Efficient 2-Channel Class-D Circuit Design
IP67 Rated Against Water and Dust
Small Size Footprint for Easy Installation
Surface Mount Component Technology
Power and Protection LED Light Status Indicators
Short, Thermal, and Under / Over Voltage Protection
DC Offset Auto Turn On
10V High-Level Audio Input Compatibility

Ratings

IP67 Rated
CEA2006D compliant
RECOMMENDED FUSE RATING: 40A

SPECIFICATIONS

Description: Full Range
Topology: Class D
2Ω RMS Power Output: 100W x 2 Channels
4Ω RMS Power Output: 50W x 2 Channels
4Ω RMS Bridged Power Output: 200W x 1 Channel
THD: < 0.5%
Signal to Noise Ratio: > 95dB
Frequency Response: 20Hz - 20kHz
Crossover: 50Hz - 500Hz
Maximum Input Signal: 10V
Warranty Period: 24 months from date of purchase
