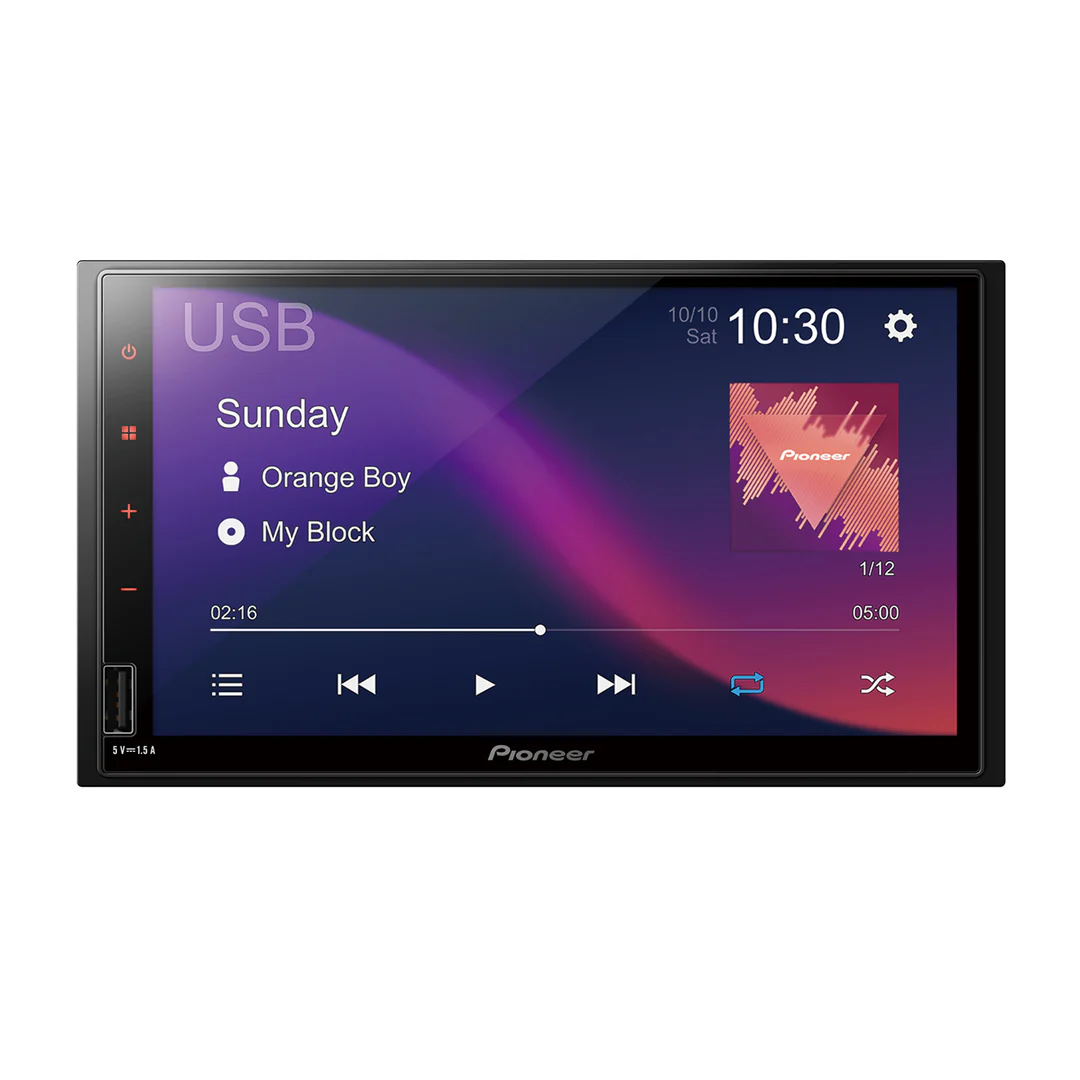

PC-DMH-470EX

7” WSVGA Capacitive Touchscreen Digital Media Receiver with WebLink® and Bluetooth®. Backup camera ready.

SKU: PC-DMH-470EX

Brand part number: DMH-470EX

Brand: Pioneer

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

PRODUCT PERFORMANCE
Continuous Power Output 22 W x 4-Channel	Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm	Rca Preamp Outputs 3-ch
Rca Preout Voltage 2V	Rms Power Output (Cta-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Detachable Face Security Fixed	Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately) Yes

DISPLAY
Back Light LED	Brightness Control Yes
Device (Non-DIN/Modular Unit) 2-DIN, Short Chassis	Monitor Mechanism Fixed
Resolution 1024 x 600	Screen Size/Aspect Ratio 7"/16:9
Touch Screen Capacitive

BLUETOOTH
Built-in Bluetooth® Yes	Microphone Included Included

TUNER
Best Station Memory Yes	Presets 18 FM 12 AM

INTEGRATION
Weblink 2.0

DIGITAL MEDIA PLAYBACK
Audio Playback via USB WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)	Audio Video Playback via USB H.264, H.263, .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts
Image Display Via USB BMP, JPEG, PNG

AUDIO
Built-in Amplifier MOSFET 50 W x 4	Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band	DA Converter 24 Bit
Digital Signal Processor Built In	Easy EQ (EEQ) Preset Equalizer Yes
Loudness High/Mid/Low/Off	Speaker Output 4-ch
Subwoofer Control Yes

EXPANDABILITY
Audio Video Inputs Input 1 - Backup Camera Dedicated, Audio/Video AUX (Minijack), Input 3 - 2nd Camera	Firmware upgradability Yes
RCA-Video-Output Yes	USB Front Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone® 5s and newer

PRODUCT PERFORMANCE
Continuous Power Output 22 W x 4-Channel	Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm	Rca Preamp Outputs 3-ch
Rca Preout Voltage 2V	Rms Power Output (Cta-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Detachable Face Security Fixed	Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately) Yes

DISPLAY
Back Light LED	Brightness Control Yes
Device (Non-DIN/Modular Unit) 2-DIN, Short Chassis	Monitor Mechanism Fixed
Resolution 1024 x 600	Screen Size/Aspect Ratio 7"/16:9
Touch Screen Capacitive

BLUETOOTH
Built-in Bluetooth® Yes	Microphone Included Included

TUNER
Best Station Memory Yes	Presets 18 FM 12 AM

INTEGRATION
Weblink 2.0

DIGITAL MEDIA PLAYBACK
Audio Playback via USB WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)	Audio Video Playback via USB H.264, H.263, .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts
Image Display Via USB BMP, JPEG, PNG

AUDIO
Built-in Amplifier MOSFET 50 W x 4	Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band	DA Converter 24 Bit
Digital Signal Processor Built In	Easy EQ (EEQ) Preset Equalizer Yes
Loudness High/Mid/Low/Off	Speaker Output 4-ch
Subwoofer Control Yes

EXPANDABILITY
Audio Video Inputs Input 1 - Backup Camera Dedicated, Audio/Video AUX (Minijack), Input 3 - 2nd Camera	Firmware upgradability Yes
RCA-Video-Output Yes	USB Front Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone® 5s and newer
