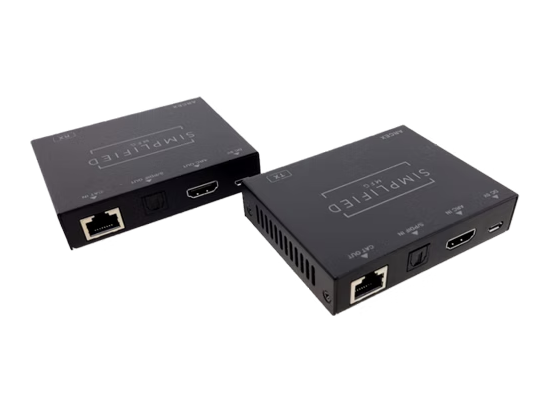

The ARCEX is a 90m digital audio extender that extends ARC up to 90m/295ft. to ARC capable audio devices. The units are powered via supplied USB power supplies. Power can be attained from display as the current draw of the TX device is about 1/3 of a Watt. RX current draw is 0.7W. CEC and all ARC formats are supported from display back to rack/AVR/ARC capable amplifier.
The ARCEX can also operate as an optical to optical extender as well (S/PDIF). There is a switch on the TX portion that will switch the unit to optical mode. This will disable ARC mode. The optical does not output on the HDMI ARC. *Cat5e may be used, but some loss of distance may occur.
• 90m/295ft via ARC, 150m/495ft. via optical
• Use your smart TV as your audio source where your amplifier or other ARC enabled audio device is remote
• Supports all ARC audio formats
• CEC Pass-Thru (TV remote can control volume)
• Powers via USB Micro and draws very little current so display USB ports can be used
• USB power supplies included
• Compact design for easy placement
• 3-Year warranty
