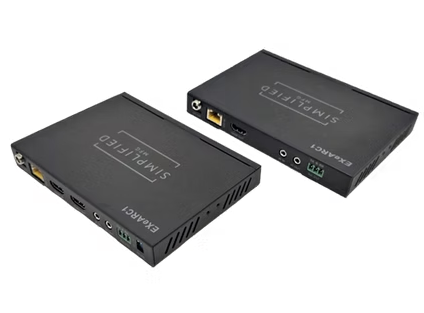

50m/164ft. 4K HDMI 2.0b (18Gbps) extender on Cat6A/6 supporting uncompressed eARC
The EXeARC1 18Gbps HDMI 2.0b extender is the first of its kind to bring eARC back from the display to the transmitter end. With this device you can bring uncompressed Dolby+/Atmos audio from your display back to the source/rack up to 50m/164ft. You can use it in ARC or eARC mode. The EXeARC1 supports HDR10+ and DolbyVision™ as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18Gbps HDMI 2.0b signal.
Primary Use: Extending HDMI AV signals along with control, and eARC return from display over a single Category cable. *Cat5e may be used, but some loss of distance may occur.
• eARC and ARC are fully supported to bring Dolby+ and Atmos audio back to the system rack or AVR
• HDMI 2.0b (18Gbps)
• HDCP 2.2, HDCP 1.4 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• HDR10+ and DolbyVision™ Support
• Supports CEC Pass-thru
• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
• Bidirectional Infrared control signal together with the HDMI signal
• Transfer Bidirectional RS232 control signal together with the HDMI signal
• Supports all high-definition audio formats including Dolby+/Atmos
• 50m/164ft. at 4k/UHD
